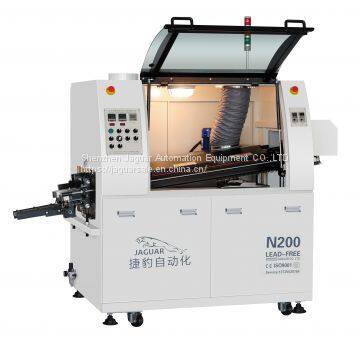

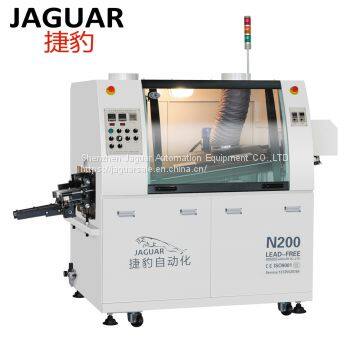

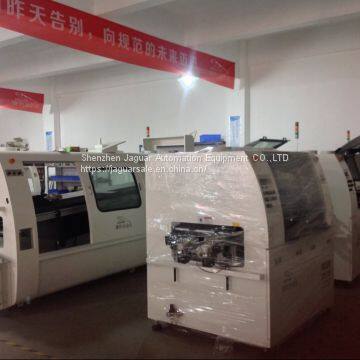

Help CenterWave Soldering Machine for Led Production Assembly Line N200
Related Products
-
LED-FREE FULL AUTOMATION HOT AIR WAVE SOLDER ELECTRONIC LINE MACHINEUS$ 17000 - 20000MOQ: 1 Set -
Hot Sale Fully Automatic Dual Wave Soldering Machine For PCBA Machine Line N450US$ 20000 - 25000MOQ: 1 Set
-
HOT SALE!LED-FREE FULL HOT AIR WAVE SOLDER FOR LED PCB PRODUCT LINE MACHINEUS$ 17000 - 20000MOQ: 1 Set
-
LED-FREE FULL HOT AIR WAVE SOLDER MACHINE FOR LED PCB SOLDERINGUS$ 17000 - 20000MOQ: 1 Set
-
HOT SALE!!LED-FREE FULL HOT AIR WAVE SOLDER MACHINE FOR LED PCB SOLDERING JAGUAR N300US$ 17000 - 20000MOQ: 1 Set
SMT lead-free economic wave solder
Specification:
Model No | JAGUAR N200 |
Number of heating zones | 1 |
Length of heating zones | 450mm |
Body size | 1400*1200*1600 |
Outside dimension | 2100*1200*1600 |
Weight | 500KG |
Component lead | Within 10 mm |
Total/running power | 9KW/3-5KW |
Air supply | 0.5MPa |
Preheating method | IR(standard) |
Preheating power | 220V 5KW |

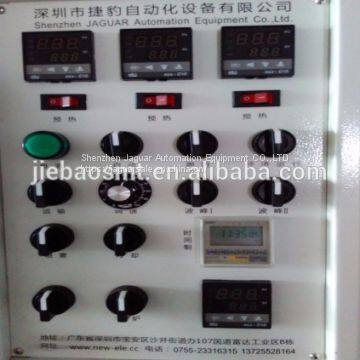

Control method | Press key +PLC(Option: touch screen, PC) |
Range of temp. control | Room temperature---300ºC |
Preheating time | About 10-15mins for setting 150ºC |
Solder type | Lead-free / Sn-Pb |
Solder pot capacity | 180KG |
Solder pot temperature | 300ºC |
Solder power | 380V 6KW |
Solder temp. control method | PID&SSR |
Wave crest drive power | 500W 220V |
Warm-up time of solder | About 120mins for setting 250ºC |
PCB width | 50-250mm |
Convey speed | 300-1800mm/min |
Convey direction | L→R (R→L optional) |
Convey angle | 4-7 º |
Flux pressure | 3-5 bar |
Flux capacity | 3.2L |
Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
7.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
10.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
11.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.
