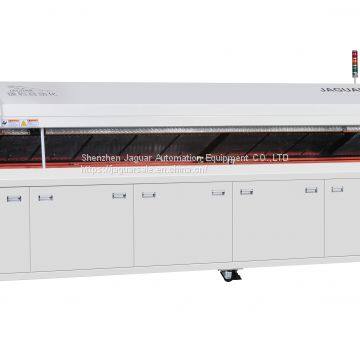

Led Production Line Smt Lead Reflow Oven Machine for Pcb Solder F8

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector enhance temperature ramp up speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component uniformly heated and eliminate the "shadow effect" efficiently.

2.Using special high temperature resistant protection material in heating preservation structure and cast iron in heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, critical design for no noise or vibration and convenient for maintenance .

4. Heating zones are structured with porous aluminum air director, hot air is uniformly distributed to the PCB surface. Hood can open completely so as to easily proceed maintenance.

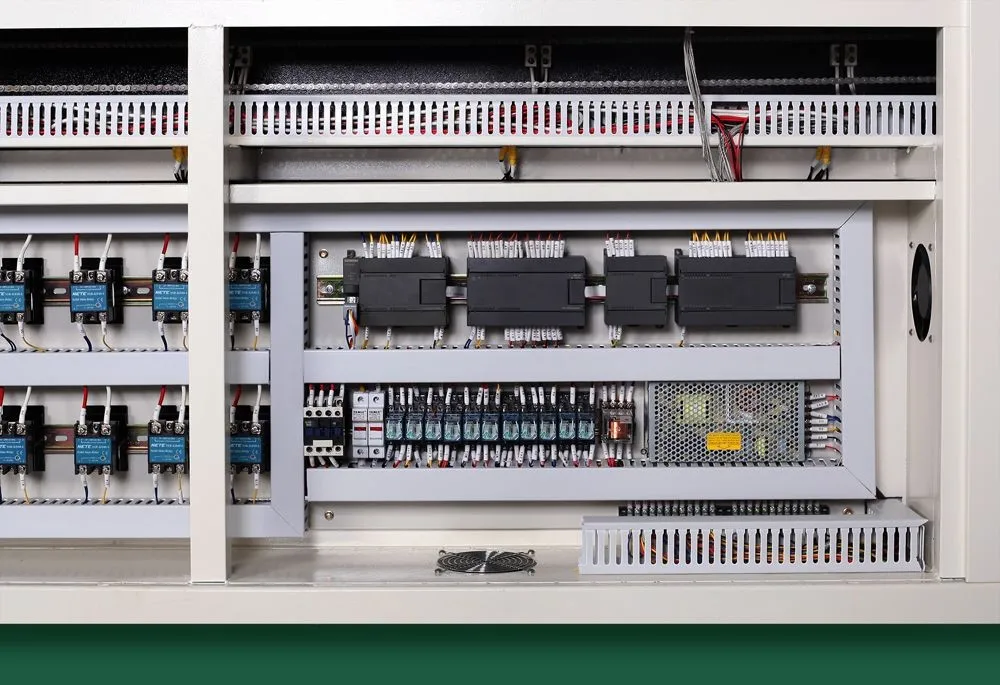

PLC is from Siemens,Life time warranty
It adopts imported thermostat control which owns fuzzy logic and PID closed loop control system. It can quick response to the changes in heating condition and ensure efficient heat compensation to achieve required temperature..

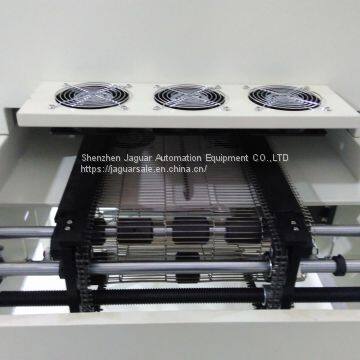

1. The conveyor driving system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running extremely stable, speed range can varies between 0-1500mm/min.

2. Independent roller structure support and mesh belt running smooth and the speed precision is up to ±20 mm/min .

3. Mesh belt: durable and wear-resistant, not easy to deform and long life.

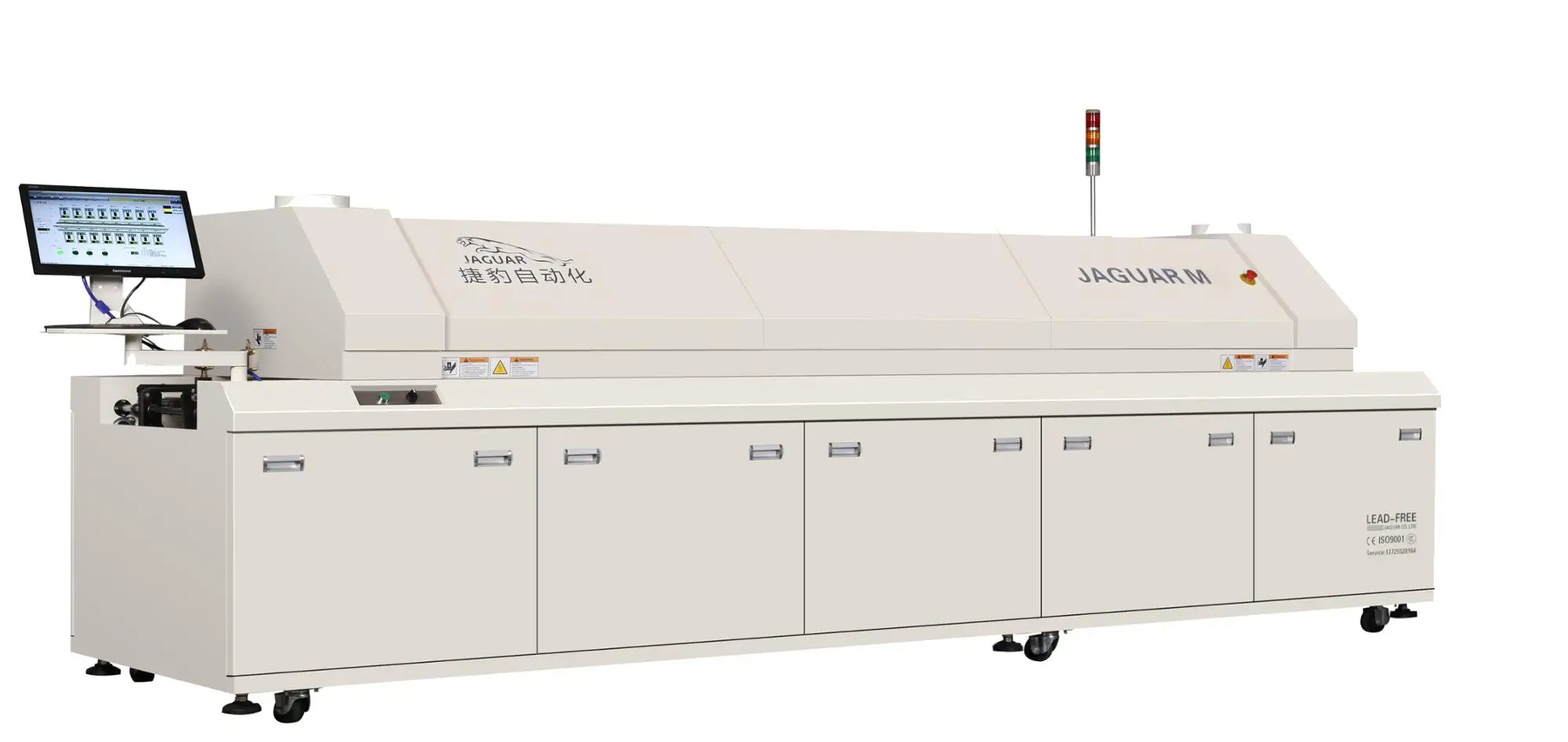

Model JAGUAR M6
Heating System Number of heating zones Top 6/Bottom 6
Heating passage 2500MM
Heating style hot air
Cooling style Force air
Conveyor System Max. Width of PCB 350mm
Mesh belt width 400mm
Conveyor Direction L→R(or R→L)
Process Height 880±20mm
Conveyor type Mesh and chain
Range of rail width 0-300mm
Conveyor speed 0-1500mm/min

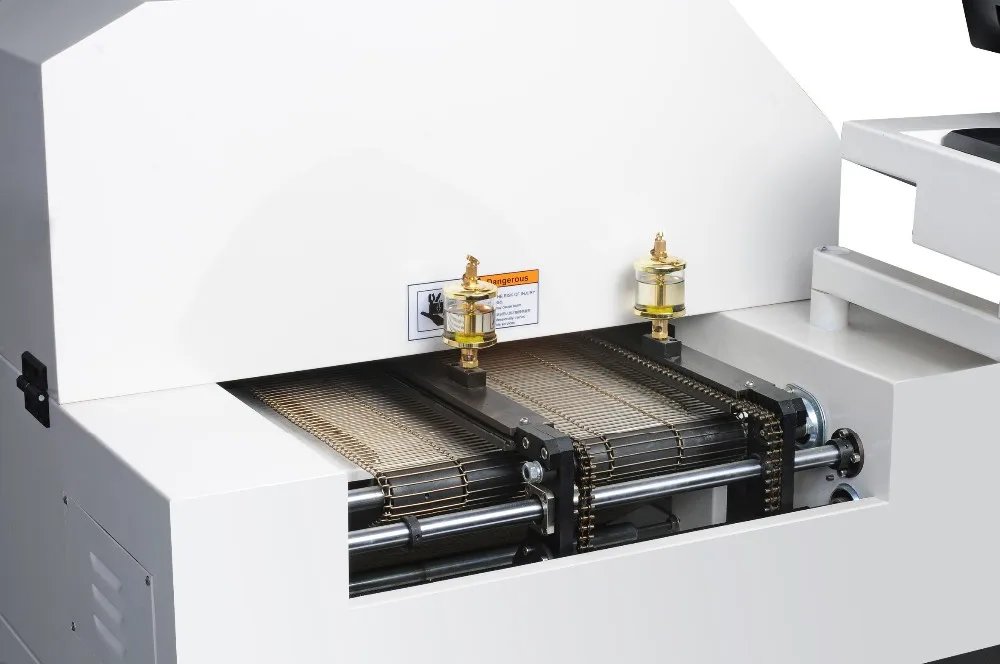

Auto/manual Lubrication standard
Hood opening Manual(option: auto)
Fixed track Front track fixed(option: rear rail fixed)
Product clearance Top and bottom 25mm
Control system Power supply: 5line 3phase 380V 50/60Hz
Total power consumption 28kw
Startup consumption 28kw
Steady consumption 4KW
Ramp up time About 20 mins
Temp. setting range Room temperature-300℃
Temp. control method :PLC & PC
Temp. control precision :±1℃
Temp. deviation :on PCB ±2℃
Data storage :Process Data and status storage(80GB)
Nozzle plate :Aluminum Alloy Plate
Abnormal Alarm :Abnormal temperature. (Overtemp/low temp.)
Board dropped alarm Tower light: Amber-warming, Green-normal, Red-abnormal
General Dimension(L*W*H) :3600×1000×1490mm
Weight :700KG
Color: Computer gray
