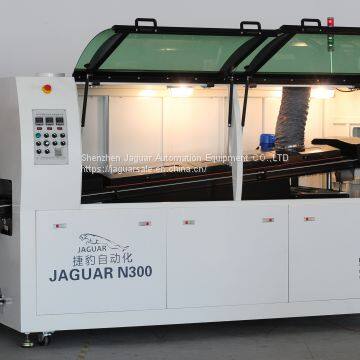

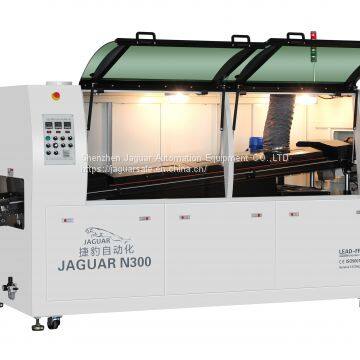

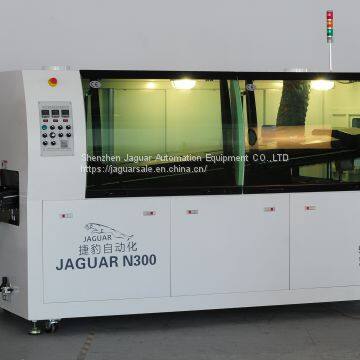

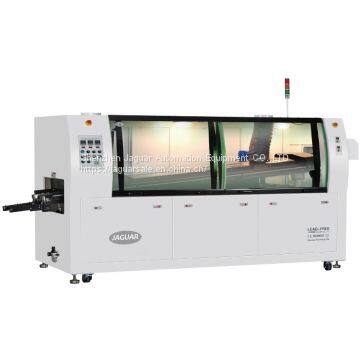

Help CenterHOT SALE!LED-FREE FULL HOT AIR WAVE SOLDER FOR LED PCB PRODUCT LINE MACHINE
Related Products
-
LED-FREE FULL HOT AIR WAVE SOLDER MACHINE FOR LED PCB SOLDERINGUS$ 17000 - 20000MOQ: 1 Set -
HOT SALE!!LED-FREE FULL HOT AIR WAVE SOLDER MACHINE FOR LED PCB SOLDERING JAGUAR N300US$ 17000 - 20000MOQ: 1 Set
-
HOT SALE!!LED-FREE FULL HOT AIR WAVE SOLDER MACHINE FOR LED PCB SOLDERING JAGUAR N350US$ 17000 - 20000MOQ: 1 Set
-
Jaguar High Capacity Wave Solder Machine for LED Bulb Production Line With CEUS$ 15000 - 18000MOQ: 1 Set
-
High Capacity Wave Solder Machine for LED Bulb Production Line N250US$ 9000 - 13000MOQ: 1 Set
Specification:

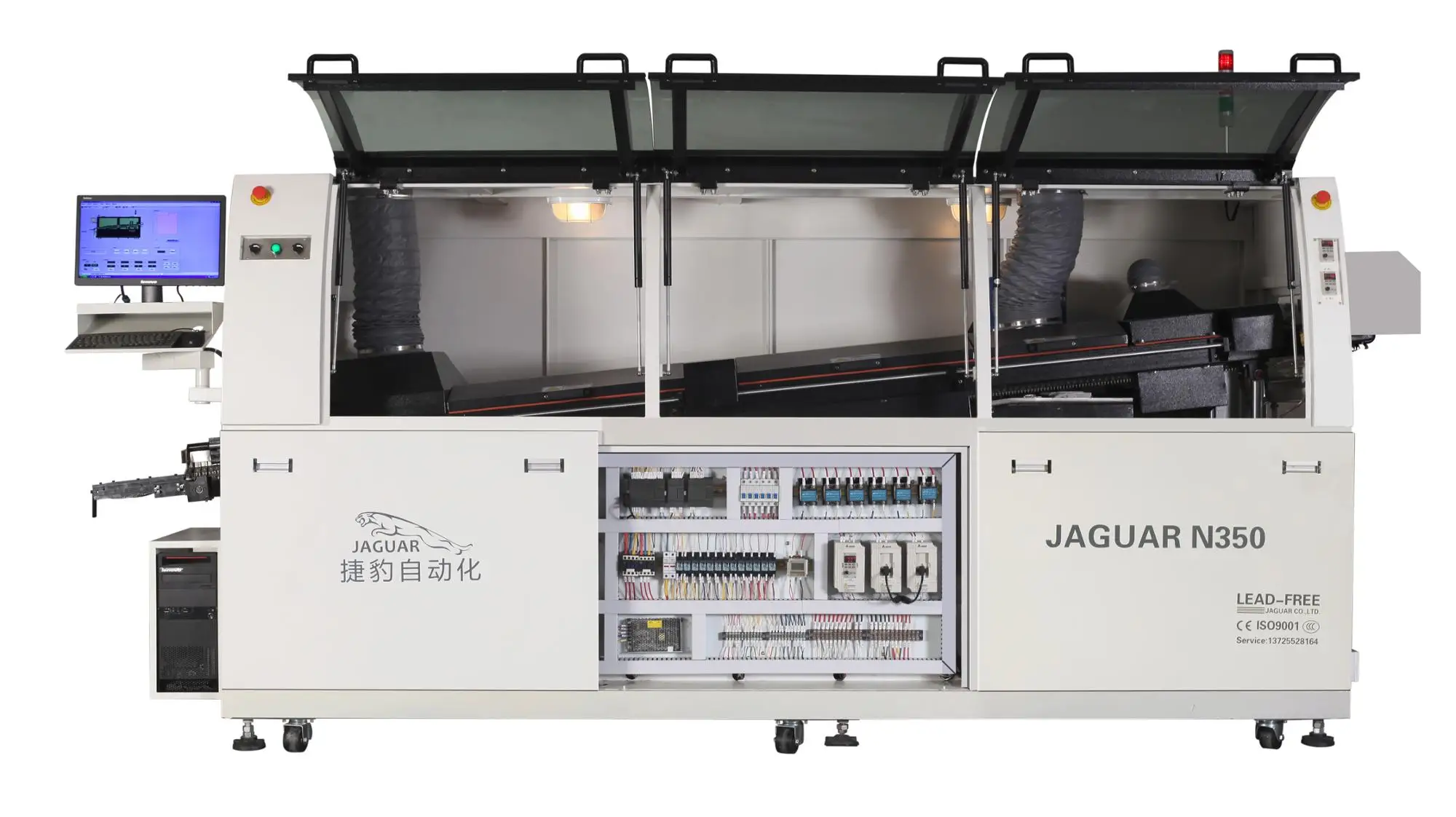

Model No. | JAGUAR N350 |
Number of heating zones | 3 |
Length of heating zones | 1600mm |
Body size | 3300(L)*1400(W)*1560(H) |
Outside dimension | 4100(L)*1400(W)*1560(H) |
Weight | 1100KG |
Total/running power | 24KW/6-8KW |
Air supply | 0.5MPa |
Preheating method | Micro air |
Preheating power | 220V 8KW |
Control method | PC +PLC |
Range of temp. control | Room temperature---300ºC |
Preheating time | About 10-15mins for setting 150ºC |
Solder type | Lead-free |
Solder pot capacity | 320KG |
Solder pot temperature | 300ºC |
Solder power | 380V 12KW |
Solder temp. control method | PID&SSR |
Wave crest drive power | 1KW 220V |
Warm-up time of solder | About 120mins for setting 250ºC |
PCB width | 50-300mm |
Convey speed | 300-2000mm/min |
Convey direction | L→R (R→L optional) |
Convey angle | 4-7 º |
Flux pressure/capacity | 3-5 bar/6.5L |
Kris
Shenzhen Jaguar Automation Equipment Co.,Ltd.
Add:Building A07,hongtian jinyuan industrial zone,hongtian road,xinqiao street, shenzhen,China
Tel:+86-755-23316315 Fax:+86-755-29497125
Mob&Wechat&Skype/whatsapp:+86 18779775607
Web:
Send Inquiry to This Supplier
