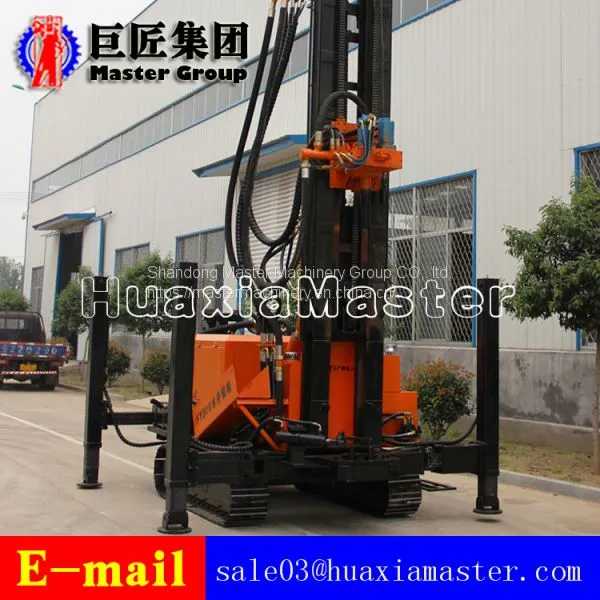

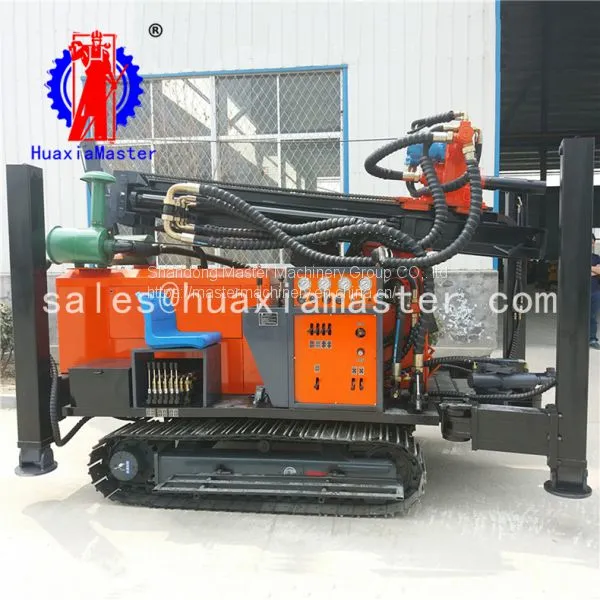

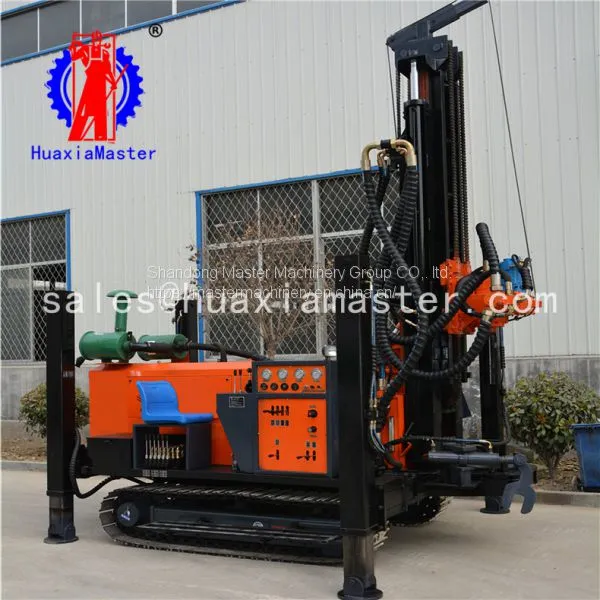

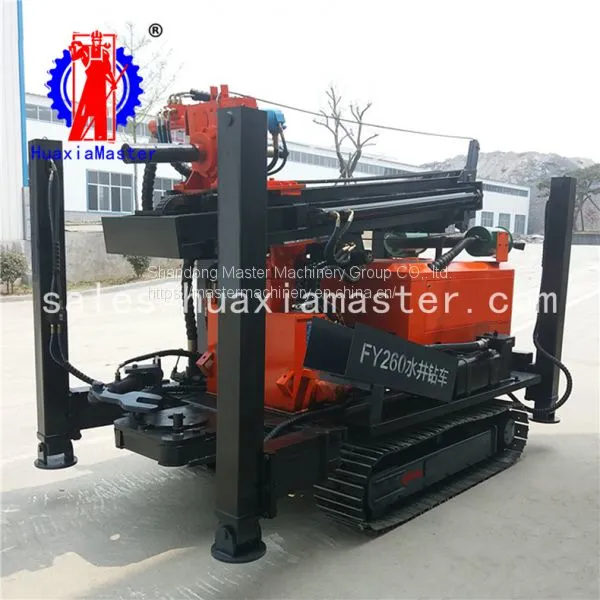

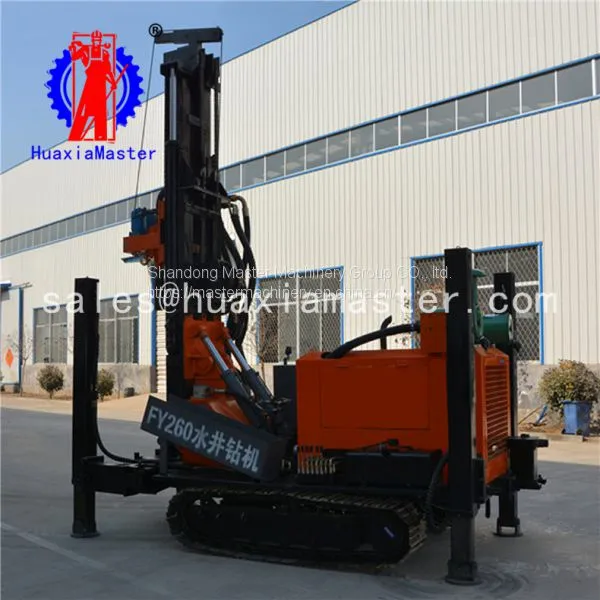

FY260 Crawler Hydraulic Rotary Diamond Core Machine Drilling Rig for Water Well
US$ 4000 - 7500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia Master
Place of Origin:
China
Model Number:
FY 260
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Related Products
-
FY400 Crawler Type Pneumatic Deep Water Drilling Machine for SaleUS$ 4000 - 6000MOQ: 1 Set -
FY600 Crawler Pneumatic Water Well Drilling RigUS$ 4000 - 6000MOQ: 1 Set
-
KY-200 Full Hydraulic Drilling Rig For Metal Mine ExplorationUS$ 4000 - 6000MOQ: 1 Set
-
KY-250mine Drilling Rig, Tunnel Prospecting Drilling Rig, Mine Core Drilling RigUS$ 4000 - 5500MOQ: 1 Set
-
China High Quality BXZ-2 Double Knapsack Core Drilling Rig for SaleUS$ 4000 - 6000MOQ: 1 Set
Brand Name
Huaxia Master
Place of Origin
China
Model Number
FY 260
Type
Other, Impact Drilling Rig
Certification
ISO-9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
6.2 t
Dimension(L*W*H)
3900*1950*2550 mm
Power Type
Diesel
Voltage
380 V
Usage
Water Well
Condition
New
Power(W)
85 KW
1. The applications of FY260 crawler pneumatic drilling rig
· civil engineering drilling
· geothermal drilling,
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2. The specifications of FY260 crawler pneumatic drilling rig
Model |
FY260 |
|
Gross weight |
t |
6.2 |
External dimension |
mm |
3900*1950*2550 |
Aperture |
mm |
140-325 |
Drilling depth |
m |
260 |
Feed stroke |
mm |
3000 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.0 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
85 |
Rotary speed |
rpm |
40-70 |
Rotation torque |
n.m |
7000-9000 |
