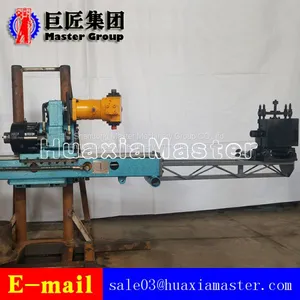

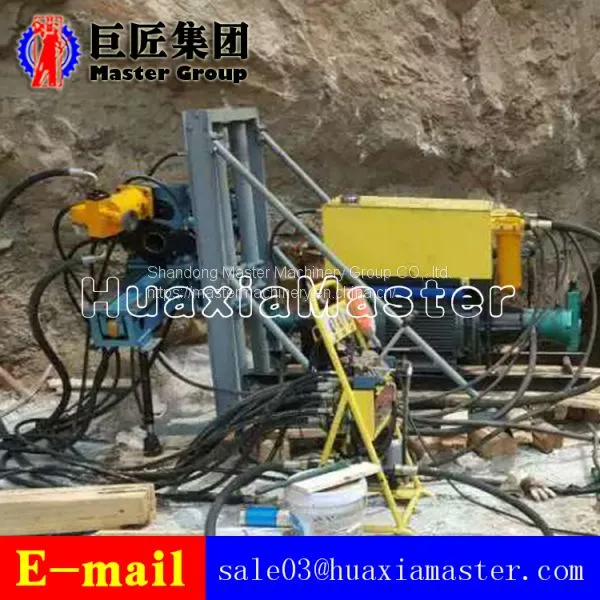

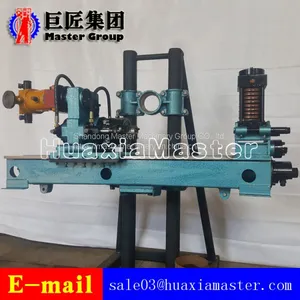

KY-250mine drilling rig, tunnel prospecting drilling rig, mine core drilling rig
- Qingdao
- T/T L/C
You May Like
-
China high quality BXZ-2 double knapsack core drilling rig for sale
-
In Stock BXZ-2L Vertical Drilling Backpack Rock Core Drilling Rig For Sale
-
BXZ-1 Portable Backpack Core Drilling Rig Operated By One Pearson
-
KQZ-200D air pressure and electricity joint-action DTH drilling rig
-
KQZ-100D Air Pressure and Electricity Joint-action DTH Drilling Rig
-
HZ-130YY road and building exploration and drilling blasting holes drilling rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | KY-250 | Type | Core Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | One Year | Weight | 400 KG | |
| Dimension(L*W*H) | 1250*650*1050mm | Power Type | Diesel | |
| Voltage | 380 V | Usage | Ore | |
| Condition | New | Power(W) | 30 KW |
Product Description
Key words: KY-250, mine drilling rig, full hydraulic,prospecting drill, prospecting equipment, mineral prospecting equipment, geophysical prospecting instruments,prospecting drilling rig
1. The brief introductions of KY-250 metal mine exploration drilling rig
The KY250 tunnel drilling rig is
l small in size
l light weight
l convenient to install and operate
l excellent linkage and adjustable speed range
l suitable for drilling at any angle in the tunnel or surface.
2. The specifications of KY-250 metal mine exploration drilling rig
Drilling diameter | Φ36.5mm /Φ46.5mm |
Drilling depth | 250m（ø33 Steel drill rig）/200m（ø43 Steel drill rig） |
Borehole angle | 0°-360° |
Spindle speed | 400-1400r/min |
Spindle output torque | 150-400nm |
Rated pulling force | 40kn |
Rated pulling speed | ＞0.3m/s |
Oil supply mode | double gear pump |
Rated system pressure | 16mpa |
Oil pump model | CBF-F71/10 |
Hydraulic oil model | antiwear hydraulic oil YB-N46/YB-N32 (winter) |
Motor model | manual variable motor A6V80MA |
Motor specification | 30kw |
Weight | main engine 275kg/backbone 40kg/operating floor86kg/power car 420kg |
