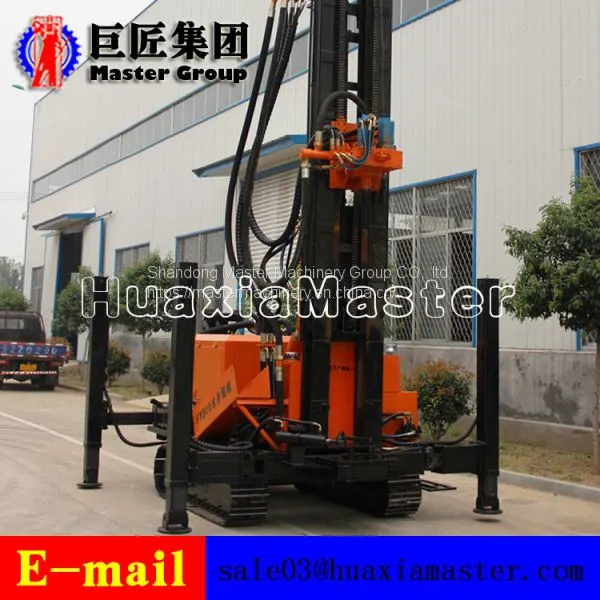

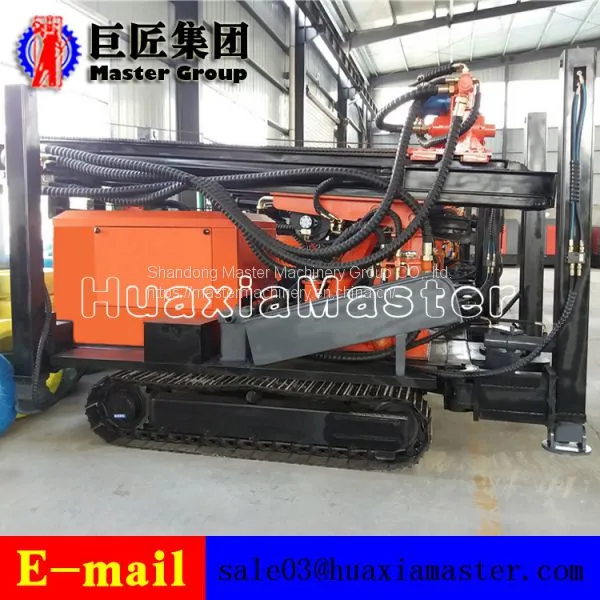

FY400 crawler type pneumatic deep water drilling machine for sale
USD $4000 - $6000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
You May Like
-
FY600 crawler pneumatic water well drilling rig
-
Factory Direct Supplied KY-150 Hydraulic Drilling Rig For Metal Mine Exploitation
-
KY-200 Full Hydraulic Drilling Rig For Metal Mine Exploration
-
KY-250mine drilling rig, tunnel prospecting drilling rig, mine core drilling rig
-
China high quality BXZ-2 double knapsack core drilling rig for sale
-
In Stock BXZ-2L Vertical Drilling Backpack Rock Core Drilling Rig For Sale
Product Details
| Brand Name | Master Machinery | Place of Origin | China | |
| Model Number | FY-400 | Type | Rotary Drilling Rig | |
| Certification | ISO-9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | Six Months | Power Type | Diesel | |
| Usage | Water Well | Condition | New | |
| Power(W) | Diesel |
Product Description
1.The range of application of FY400 crawler type gas drilling rig
Applicable to civil engineering drilling, geothermal drilling, drilling with large diameter and deep drilling footage, fast, flexible and efficient.
2.The technical parameter of FY400 crawler type gas drilling rig
model | FY400 | |
Gross weight | T | 8.7 |
Dimension | mm | 5050*2100*2800 |
Aperture | mm | 140-325 |
Drilling depth | m | 400 |
Feed stroke | mm | 6000 |
Travel speed | km/h | 2.5 |
Grade ability | Max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | Mpa | 1.7-3.5 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 95 |
Rotary speed | rpm | 45-75 |
Rotation torque | N.m | 8500-10000 |
