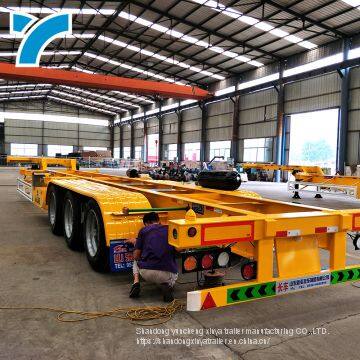

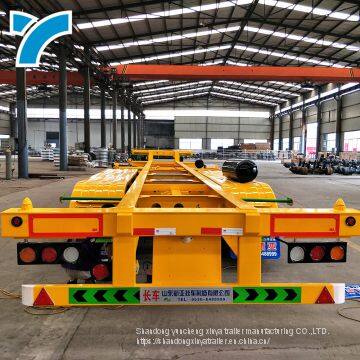

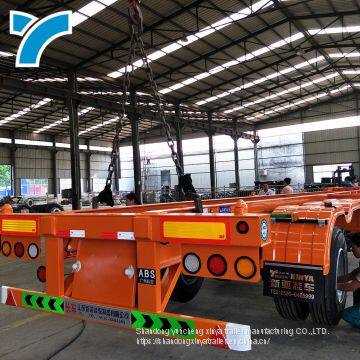

Skeleton 3axles 20FT 40FT Container Chassis Container Semi Truck Trailer

FOB Price

US$ 3000 - 20000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Contacts: Kathy Chen

Whatsapp ( wechat ) : +86 13853078353

Telephone: +86 530 6226658

E-mail: Trailer551@xinyaguache.com

tianchen725@gmail.com

Overall Dimension(LWH)	1240025001520
Tare Weight	5700KG
Loading Weight	54000KG
Axle	13T，2/3/4 pcs，BPW or FUWA or Yonglitai or Huajin Brand or other china brand
Leaf Spring	90*13-10 4/6/8 sets, Funiu or Taiyue or other china brand
Suspension system	Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main Beam	The height of the beam is 500mm,upper plate 14mm,down plate is 16mm,middle plate is 6/8 mm, Material is Q345 Carbon Steel
Container Twist Locks	4 pcs or 8 pcs or 12pcs container lock
Tire Type and quantity	12R22.5-18 12units
Steel Rim	9.00-22.5 12Units
Tool Box	1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Traction Pin	2"(50mm)or3.5"(90mm)
Spare Wheel Bracket	2 pieces
Landing Gear	Standard 28Ton, JOST brand or FUWA brand or other china brand.
Brake system	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks， ABS Optional upon choice
Electrical system	1.Voltage:24V， LED lights 2.Receotacle:7 ways (7 wire harness)
Color	As the customer request
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
other	Can add Mudguard, Mid & Rear Side protection, rear platform
