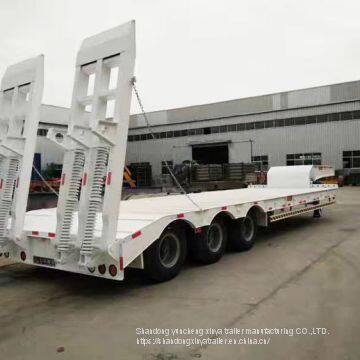

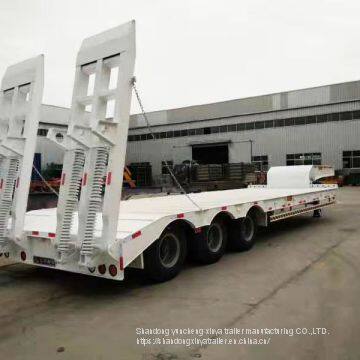

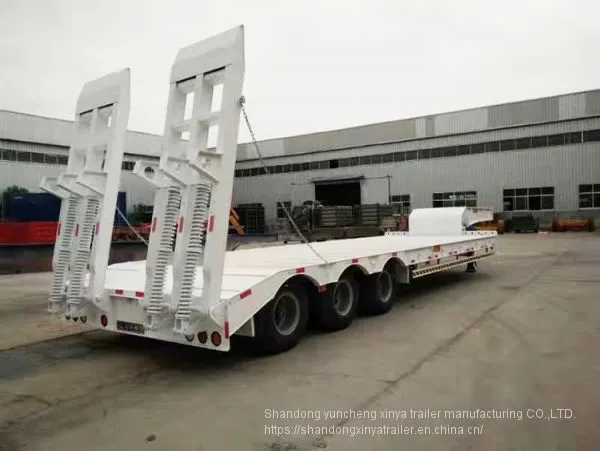

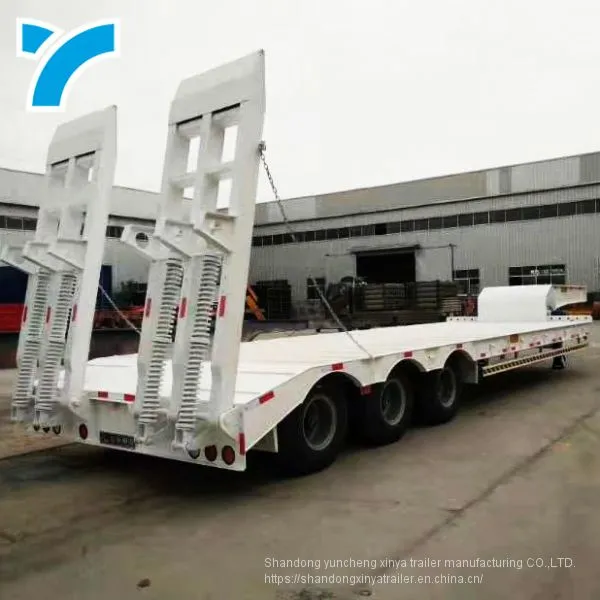

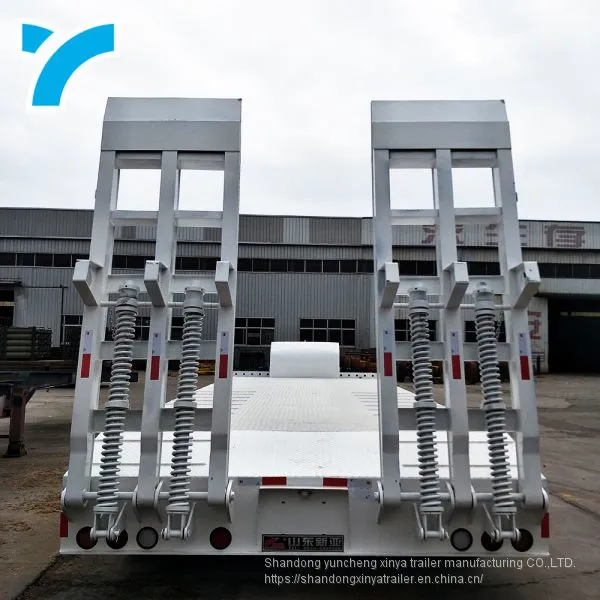

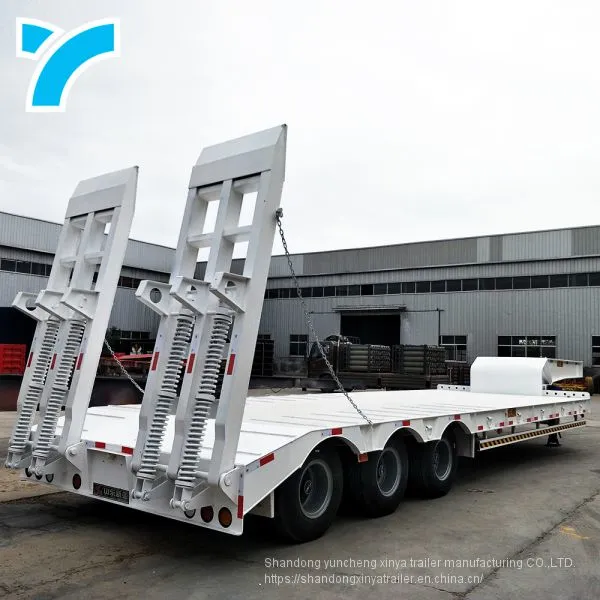

Made in China Gooseneck Low Platform Semi Low Flatbed Trailer Lowbed Truck Trailer for Sale

FOB Price

US$ 3000 - 22000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Contacts: Kathy Chen

Mobile : +86 13853078353

Telephone: +86 530 6226658

E-mail: tianchen725@gmail.com

Whatsapp: +86 13853078353

Wechat: trailer-kathy

Overall Dimension(LWH)	1300030001100mm or customize
Tare Weight	7t
Loading Weight	60t – 70t
Axle	13T, 1-4 pcs, BPW / FUWA / Yonglitai / Huajin etc.
Leaf Spring	90*13-10, 6/8 sets, Funiu / Taiyue etc.
Suspension system	Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main Beam	T700 Steel. beam height 520mm, upper plate 12mm, down plate 14mm, middle plate 10mm.
Side Beam	T700 Steel, beam height 230mm, upper plate 8mm, down plate is 8mm, middle plate is 6mm.
Cross member	“C” type & “T” type channel steel
Platform plate	Side 4# checker plate, middle 1.8# checker plate
Steel Rim	9.00-22.5, 12 pcs
Tool Box	1 spanner, 1 gudgeon sleeve and 1 cranking bar
Tire Type and quantity	12R22.5-18, 12units
Steel Rim	9.00-22.5, 12Units
Tool Box	1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Traction Pin	2"(50mm) or 3.5"(90mm)
Spare Wheel Bracket	1 piece
Landing Gear	Standard 28Ton, Single-Side Operation or Double-Side Operation, JOST / FUWA etc.
Brake system	WABCO RE 6 relay valve; T30/30+T30 chamber; two 40L air tanks, ABS Optional
Ladder	1 pair, Mechanical or hydraulic type, width 800mm
Electrical system	1. Voltage: 24V, LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3. 7 ways (7 wire harness)
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
other	Can add Mid & Rear Side protection, the side beam hook
