Die Casting Heater Mold Temperature Machine in Liechtenstein
- Jiangmen/Guangzhou/Shenzhen
- T/T Credit Card
You May Like
-
Plastic Crusher Manufacturer
-
Linear Vibrating Screen for Gravel
-
Industrial Air Cooled High Capacity Water Chiller for Cooling Water Bakery
-
Copeland Compressor Industrial Chiller
-
Masterbatch Single Color Plastic Doser Machine for Blow Molding
-
Industrial Blenders for Sale, Plastic Blenders for Mixing Color,industrial Granule Blender
Product Details
| Brand Name | XIECHENG | Place of Origin | Guangdong, China | |
| Type | Water Temperature Machine | |||
| Weight | 45kg | Dimension(L*W*H) | 739*310*643mm | |
| Voltage | 380V/50Hz/3Phase as usual | Temperature Range | 30~100 degree | |
| Certification | CE | Application | plastic industrial mold heater | |
| Condition | New | Power(W) | 6000W | |
| Internal Piping Size | 6mm*2 | Temperature Control Accuracy | +/- 0.1degree |
Product Description
die casting heater mold temperature machine in Liechtenstein
1.PID temperature control – regulates error within + 0.1℃,continuously and constantly, with high efficiency and energy saving.
2.Six series of protective measures – boot automatically exhaust & shut down automatically cooling protection, thermostatic and circuit alarm, phase fault protection, pump protection, overheat protection, oil shortage protection.
3.LCD shows the actual and set temperatures – direct and visual operations.
4.Visual and easy operations, easy to maintain.
5.Stainless steel tank – durable without leakage or rust.
6.Circumfluence design enables recollection of diathermanous oil, easily and rapidly.
7.Exquisite appearance with delicate size

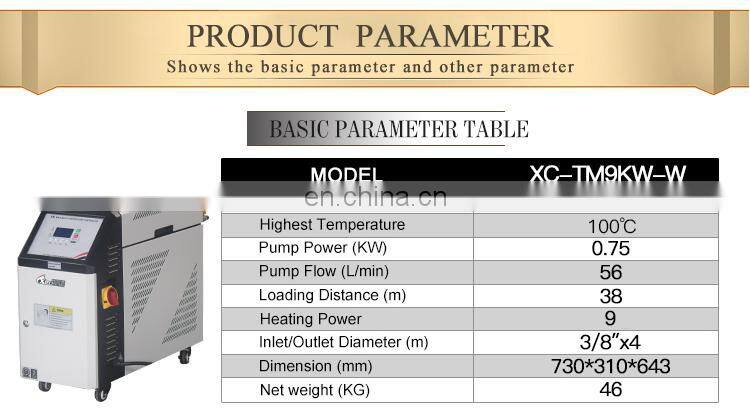

Model | XC- TM9KW-W | XC- TM12KW-W | XC- TM18KW-W | XC- TM24KW-W | XC- TM36KW-W | XC- TM60KW-W |
heat transfer medium | water | |||||
highest temperature | 1000C | |||||
Pump power(kw) | 0.37 | 0.75 | 1.5 | 1.5 | 2.2 | 3.75 |
Pump flow(L/min) | 42 | 56 | 160 | 160 | 315 | 380 |
Throw of pump | 28 | 38 | 27 | 27 | 26 | 35 |
Heating power | 9 | 12 | 9*2 | 12*2 | 12*3 | 60 |
Inlet of medium | 3/8'(6mm)*4 | 3/8'(6mm)*4 | 1'*1 | 1'*1 | 1.5"*1 | 1.5"*1 |
Dimension(mm) | 739*310*643 | 739*310*643 | 990*520*983 | 990*520*983 | 1090*520*983 | 1380*530*1083 |
Net weight(kg) | 46 | 50 | 65 | 100 | 110 | 135 |
| | |
water type mould oil heating plastic injection mold temperature controller | high efficiency low cost industry mold temperature controller | PID controling mould temperature controller |
