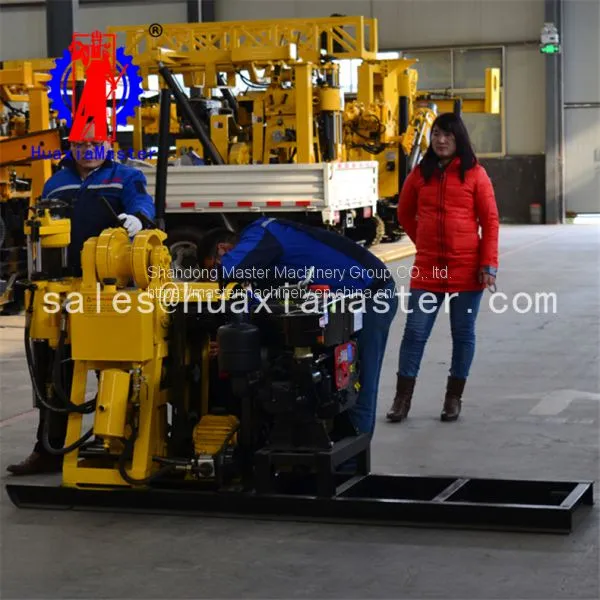

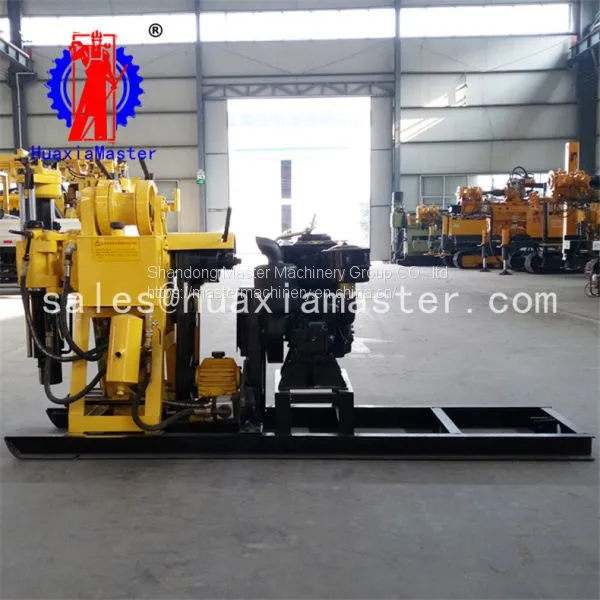

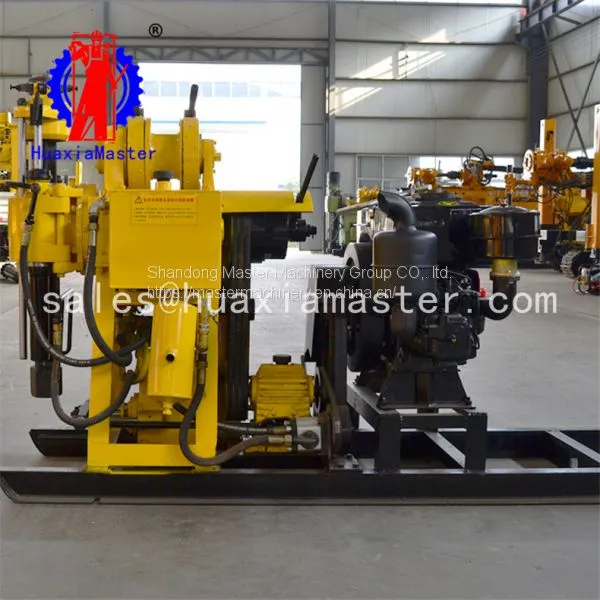

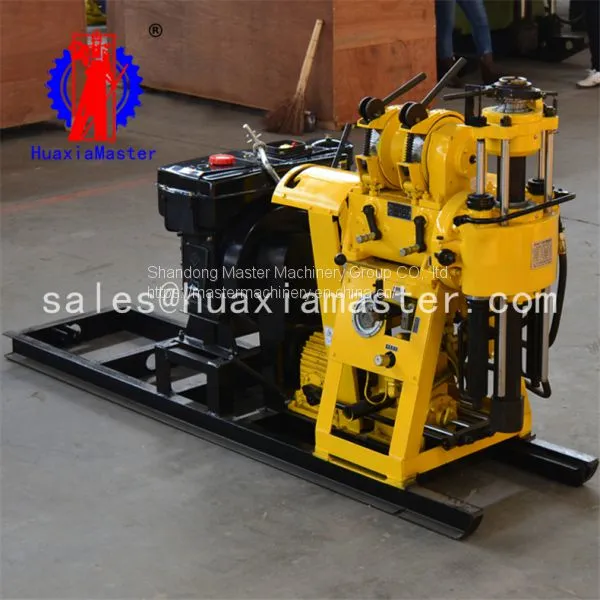

Help CenterIn Stock Hydraulic Rotary Diamond Core Machine Water Well Drilling Rig On Promotion
Related Products
-
Rotary Working 6.5 M Hydraulic Tower And Stand Diamond Core Machine For Water WellUS$ 4000 - 7500MOQ: 1 Set -
Heavy Duty Machine -- Power Hammer Air Driven Rock Breaker Water Well Drilling RigUS$ 4000 - 7500MOQ: 1 Set
-
Hydraulic Rotary Water Well Machine Long Hydraulic Stand And 6.5M Tower On SaleUS$ 4000 - 7000MOQ: 1 Set
-
HZ-130Y Hydraulic Water Well Drilling Rig Rotary Diamond Rock Core Sample MachineUS$ 6500 - 7000MOQ: 1 Set
-
XY-100 In Stock Hydraulic Rotary Diamond Core Machine Water Well Drilling Rig For SaleUS$ 6000 - 7500MOQ: 1 Set
Applications of HZ-130Y water well drilling rig
· geological survey and exploration
· basic exploration for roads
· high-rise buildings
· inspection holes for various concrete structures
· river embankments
· grouting holes
· direct grouting,
· civil water well
· ground temperature central air conditioners.
2. Features of HZ-130Y water well drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· This drilling rig adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3. Specifications of HZ-130Y water well drilling rig
HZ-130Y water well drilling rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager：Laura
Wechat: 18865479503
Whatsapp: 008618865479503
QQ：256618593
Send Inquiry to This Supplier
