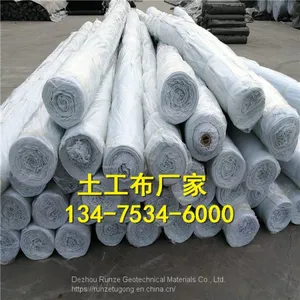

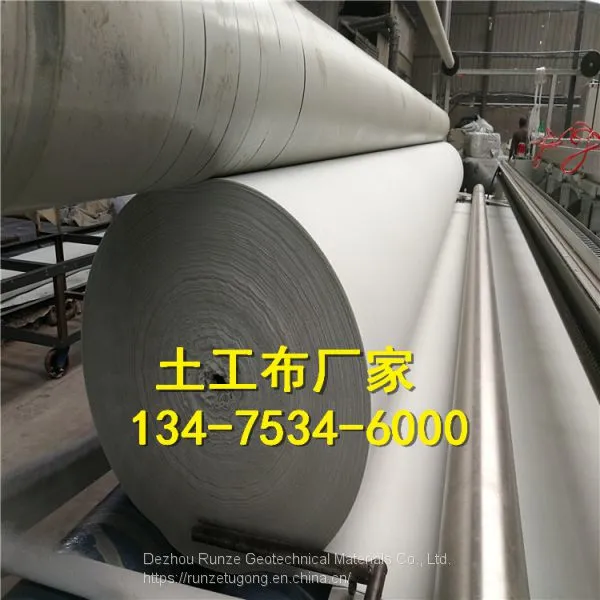

High Quality Manufacturer Needle Punched Non Woven Geotextile Fabric For Filter
US$ 0.5 - 0.6
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
runze
Place of Origin:
China
Model Number:
100g-600g
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
10 days
Related Products
-
200 g Short Silk Geotextile for Highway MaintenanceUS$ 2 - 3MOQ: 1 Ton -
300 g Filament Wool GeotextileUS$ 2 - 3MOQ: 1 Ton
-
200g Filter GeotextileUS$ 0.3 - 0.35MOQ: 1 Ton
-
250g Staple GeotextileUS$ 0.4 - 0.5MOQ: 1 Ton
-
High Density Polyethylene Geomembrane is Used in Swimming Pool Farms. Thickness 0.7mmUS$ 0.5 - 0.6MOQ: 1 Ton
Brand Name
runze
Place of Origin
China
Model Number
100g-600g
Geotextile Type
Non-Woven Geotextiles
Product description:
The geotextile is a kind of new building materials, raw materials are synthetic fiber polyester, polypropylene, polyester, polyamide polymer. According to the manufacturing methods are divided into: there are two types of nonwoven geotextiles and geotextile. General engineering is the use of nonwoven geotextile, geotextile has the functions of waterproof, filtration, drainage, isolation, reinforcement, protection, sealing, compared with the masonry and concrete anti-seepage effect with conventional, low investment, simple construction process, short construction period, good anti-seepage effect, channel the effective utilization coefficient etc.
Long fibre geotextile
Short fibre geotextile
Specification:
Short fibre geotextile
| specification(g)/m | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Tolerances of weight(%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
| Thickness(mm) | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 |
| Burst strength(KN/m) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 |
| Elongation(%) | 25-100 | ||||||||||
| Tear strength(KN) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 |
| CBRpuncture Strength(KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 |
| Opening size(O90/O95) | 0.07-0.2 | ||||||||||
| Permeability(cm/s) | K × (10-1~10-3) K=1.0-9.9 | ||||||||||
Long fibre geotextile
| No. | Item | Specification | ||||||||||
| Mass per square meter g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
| 1 | Weight Variation % | -6 | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -5 | -5 |
| 2 | Thickness mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 |
| 3 | Width Variation % | -0.5 | ||||||||||
| 4 | Breaking Strength KN/m | 4.5 | 7.5 | 10 | 13 | 15 | 17 | 20 | 23 | 25 | 30 | 40 |
| 5 | Elongation at Break % | 25 ~ 100 | ||||||||||
| 6 | CBR Mullen Burst Strength KN≥ | 0.8 | 1.2 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
| 7 | Sieve Size O mm | 0.05 ~ 0.2 | ||||||||||
| 8 | Vertical Permeability Coefficient cm/s | k× (0.1 ~ 0.001) | ||||||||||
| 9 | Tear Strength KN ≥ | 0.14 | 0.21 | 0.24 | 0.28 | 0.35 | 0.42 | 0.56 | 0.65 | 0.7 | 0.82 | 0.6 |
Application:
(1) artificial filling foundation movement of ground water.
(2) gravel filter layer surrounding the periphery of the drain pipe drain.
(3) in water conservancy projects wells, relief wells or inclined pipe filter.
(4) for retaining wall backfill reinforcement, or for anchored retaining wall panel.
(5) reinforced flexible pavements, crack repair roads, prevent the reflection cracks of pavement.
(6) in ternal vertical or horizontal drainage, dissipation of pore water pressure in soil.
(7) water impermeable geomembrane dam or embankment in the lower part of the back or the concrete.
(8) the isolation layer between the road ballast and subgrade, isolation layer or between the embankment and soft foundation.
(9) the isolation layer soil between highway, airport, railway ballast and artificial rockfill and soil fabric.
Production:
Packaging&Shipping:
Product rolls are packed by double geotextile or as your request.
