Product description:
The geotextile is a kind of new building materials, raw materials are synthetic fiber polyester, polypropylene, polyester, polyamide polymer. According to the manufacturing methods are divided into: there are two types of nonwoven geotextiles and geotextile. General engineering is the use of nonwoven geotextile, geotextile has the functions of waterproof, filtration, drainage, isolation, reinforcement, protection, sealing, compared with the masonry and concrete anti-seepage effect with conventional, low investment, simple construction process, short construction period, good anti-seepage effect, channel the effective utilization coefficient etc.

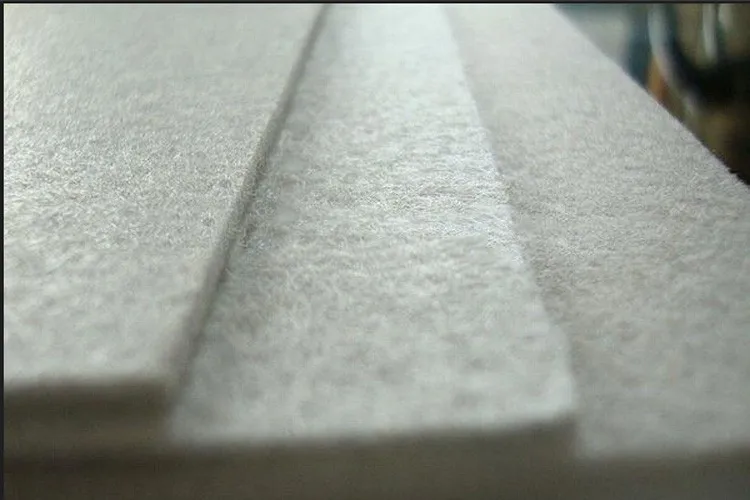

Long fibre geotextile

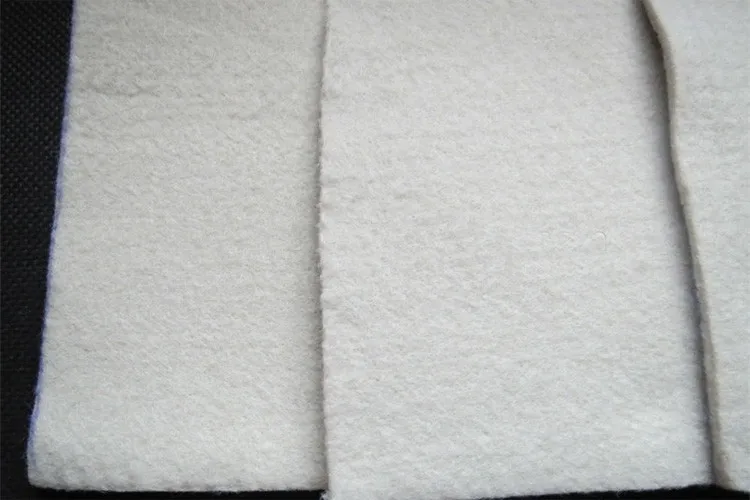

Short fibre geotextile
Specification:
Short fibre geotextile
| specification(g)/m | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Tolerances of weight(%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
| Thickness(mm) | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 |
| Burst strength(KN/m) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 |
| Elongation(%) | 25-100 | ||||||||||
| Tear strength(KN) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 |
| CBRpuncture Strength(KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 |
| Opening size(O90/O95) | 0.07-0.2 | ||||||||||
| Permeability(cm/s) | K × (10-1~10-3) K=1.0-9.9 | ||||||||||
Long fibre geotextile
| No. | Item | Specification | ||||||||||
| Mass per square meter g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
| 1 | Weight Variation % | -6 | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -5 | -5 |
| 2 | Thickness mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 |
| 3 | Width Variation % | -0.5 | ||||||||||
| 4 | Breaking Strength KN/m | 4.5 | 7.5 | 10 | 13 | 15 | 17 | 20 | 23 | 25 | 30 | 40 |
| 5 | Elongation at Break % | 25 ~ 100 | ||||||||||
| 6 | CBR Mullen Burst Strength KN≥ | 0.8 | 1.2 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
| 7 | Sieve Size O mm | 0.05 ~ 0.2 | ||||||||||
| 8 | Vertical Permeability Coefficient cm/s | k× (0.1 ~ 0.001) | ||||||||||
| 9 | Tear Strength KN ≥ | 0.14 | 0.21 | 0.24 | 0.28 | 0.35 | 0.42 | 0.56 | 0.65 | 0.7 | 0.82 | 0.6 |

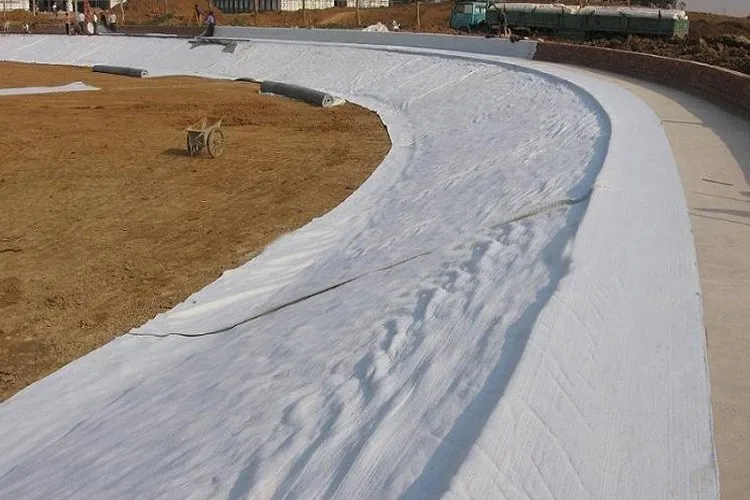

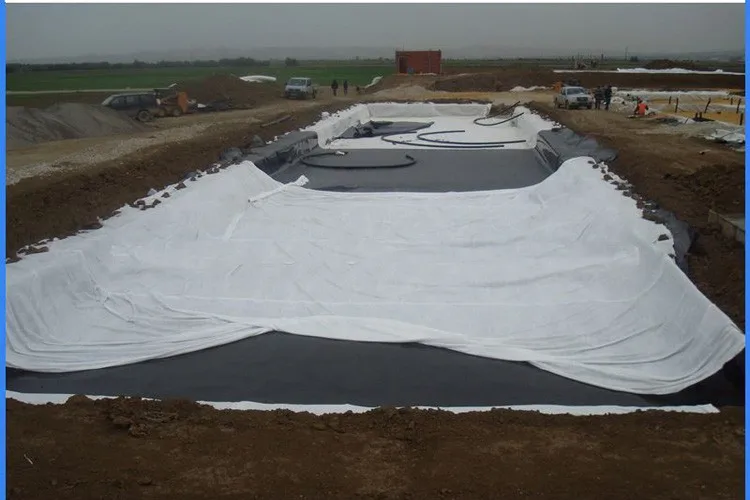

Application:

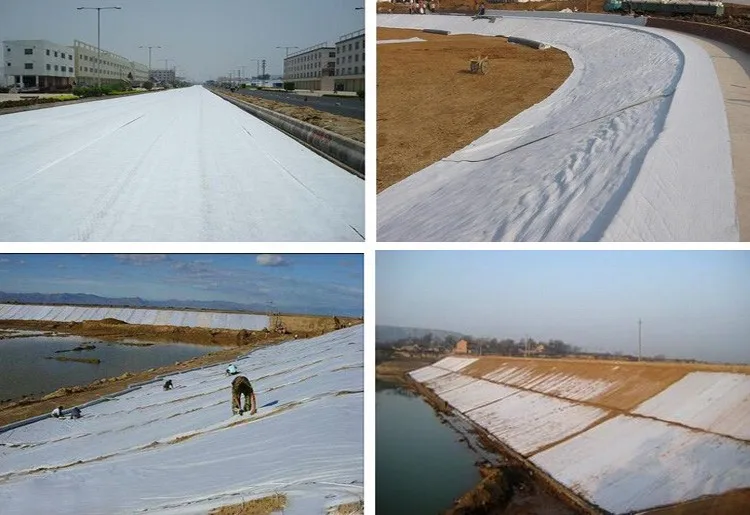

(1) artificial filling foundation movement of ground water.
Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3. For quality-related construction delay or substandard construction(except for damage or losses due to customer’s responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers’ feedbacks on quality issues within 24 hours.
