Description of 12 volt air adjustable steam water r134a engine oil pressure switch vacuum:
Automatic reset or manual reset switch design
A wide range of pressure settings allows for different requirements.
Specification of 12 volt air adjustable steam water r134a engine oil pressure switch vacuum:
Model |
SLK-08 |
Medium |
Air,Refrigerant,Engine oil,water |
Pressure range |
0.02MPa ~ 4.5MPa |
Max working pressure |
0.02~ 1.0 Mpa Setting point:2.5 MPa 1.1~ 2.0 Mpa Setting point3.5 MPa 2.1~ 4.5 Mpa Setting point4.5 MPa |
Withstand voltage |
0.02~ 1.0 Mpa Setting point:3.5 MPa 1.1~ 2.0 Mpa Setting point:5.5 MPa 2.1~ 4.5 Mpa Setting point:8.5 MPa |
Burst pressure |
5000 psi (34.Mpa ) |
Working temperature |
-30° C ~ 80° C |
Switch mode |
Single pole single throw: normally open or normally closed; Automatic reset or manual reset |
Electrical parameter |
120/240VAC, 375VA 24VAC/DC,2A |
Wiring interface |
6.35 x0.8mm,or customized |
Life |
100,000 times |
Connection |
1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20UNF |
Customized |
Different threaded interfaces, stainless steel sockets, wiring, protective covers, etc. |
Applications of 12 volt air adjustable steam water r134a engine oil pressure switch vacuum:
Air, water pressure control, electrical refrigeration equipment, internal wiring for indoor air conditioning or indoor cooling, domestic cooling system, internal wiring for long-distance outdoor condensing units. Such as: safety device / air conditioning / refrigeration equipment.

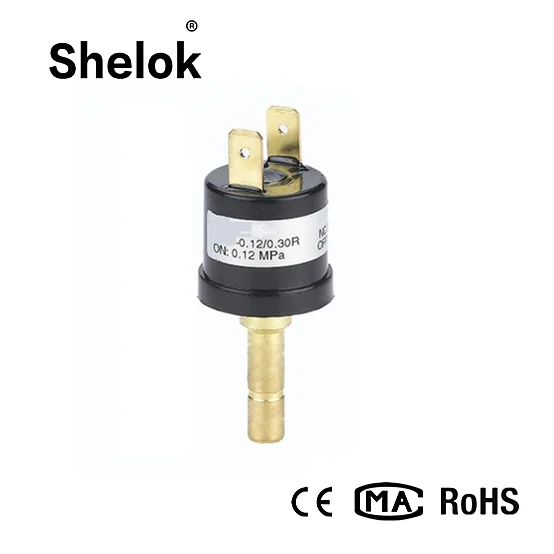

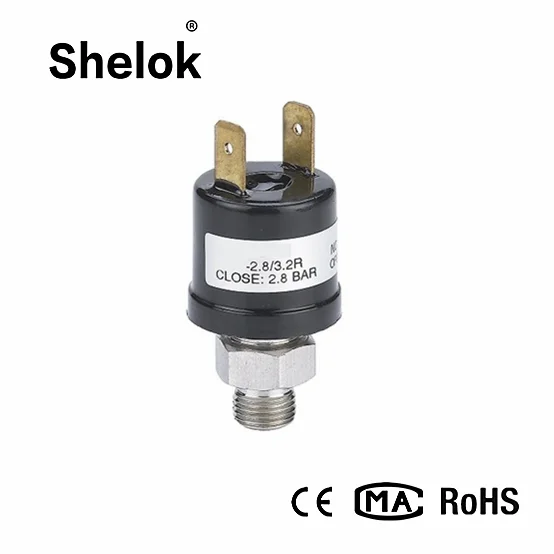

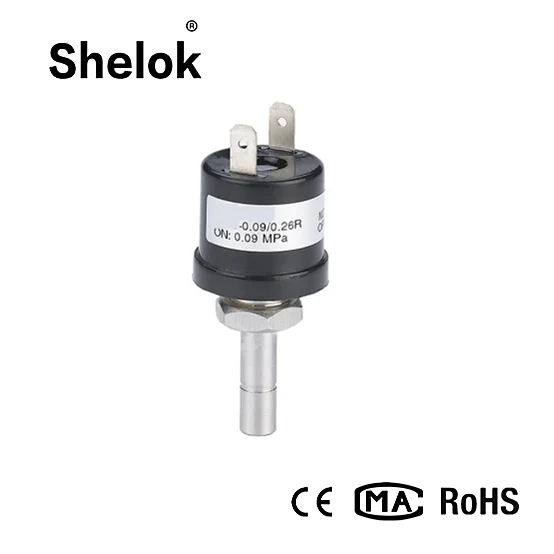

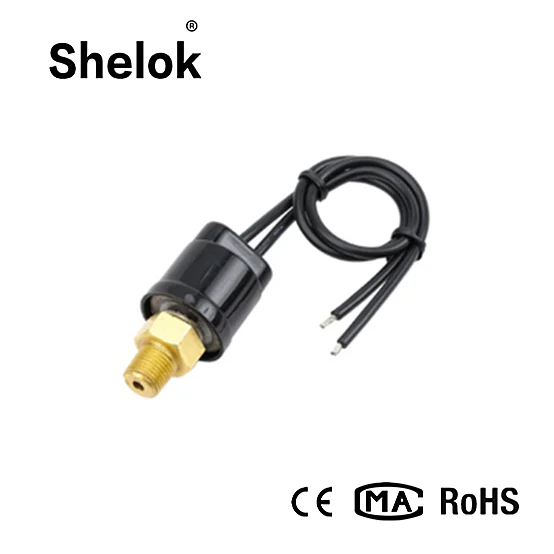

Detailed Images of 12 volt air adjustable steam water r134a engine oil pressure switch vacuum:
