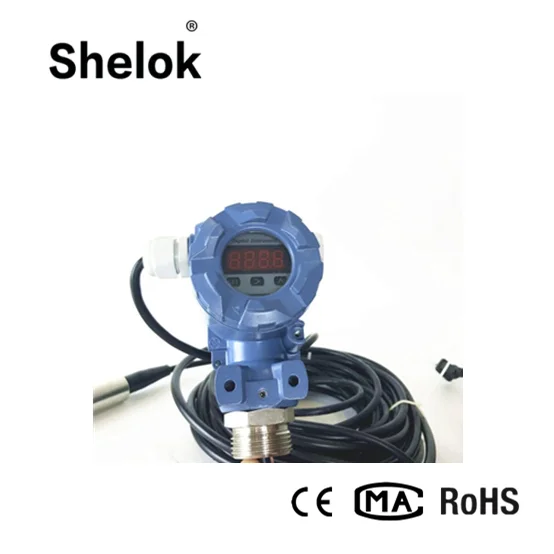

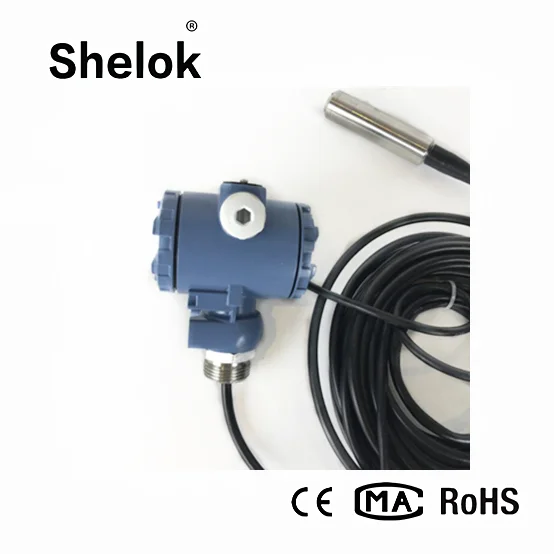

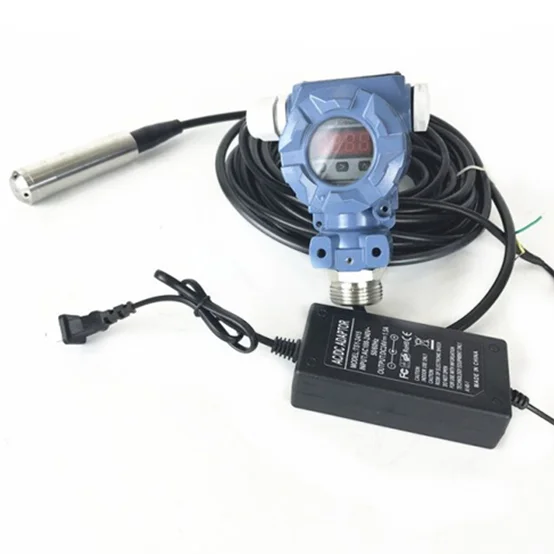

Submersible 4-20ma Liquid Pressure Level Sensor Transmitter
- All port
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
-
Low Cost Ultrasonic Diesel Fuel Tank Level Sensor Meter
-
Air Conditioning Pressure Transducer 0-5v Sensor
-
Fuel Tank Oil Water Level Sensor Water Level Meter
-
Anti Bloking Water Tank Fuel Level Sensor Deep Well Water Level Meter
-
Mass Flow Meter Digital Air Flow Meter Price
-
Magnetic Water Flow Meter Sea Water Flow Sensor
Product Details
| Brand Name | Shelok | Place of Origin | China | |
| Model Number | YDK322F |
Product Description
Description of Submersible 4-20ma liquid pressure level sensor transmitter :
liquid level transmitter is compose of full sealed isolation membrane oil-filled level sensor and special instrument circuit. With the advantages of high measuring precision, good stability, long service life, convenient installation, etc.
With unique technology of sealing structure form, and good anti-leakage performance,immersed in a liquid reliable operation for a long time.
Specifications of Submersible 4-20ma liquid pressure level sensor transmitterr:
1).Measurement object: liquid level of water, oil, paste
2).Measuring range: 0 - 200m
3).Output signal: 4 ~ 20mAor 0 ~ 10mA
4).Power supply voltage: 24VDC
5).Temperature: -20 to 80℃
6).Index Table: user select
7).Material: die-casting aluminum alloy shell, epoxy coating surface
8).Diaphragm: 316 stainless steel
9).Probe: 1Cr18Ni9Ti

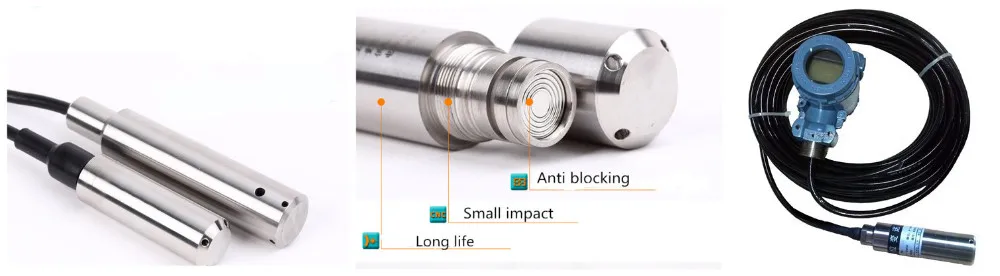

Detailed Images:
| Pressure Range | 0-1 |
| Accuracy | ±0.1% |
| Power Supply | 24VDC (12-30VDC) |
| Signal Output | Two Wire: 4-20mA |
| Operating Temperature Range | -20 to 80℃ |
| Connection Size | Inputting Type: Φ22 or Φ27 |
| Medium | Liquid compatible with 316LSS |
