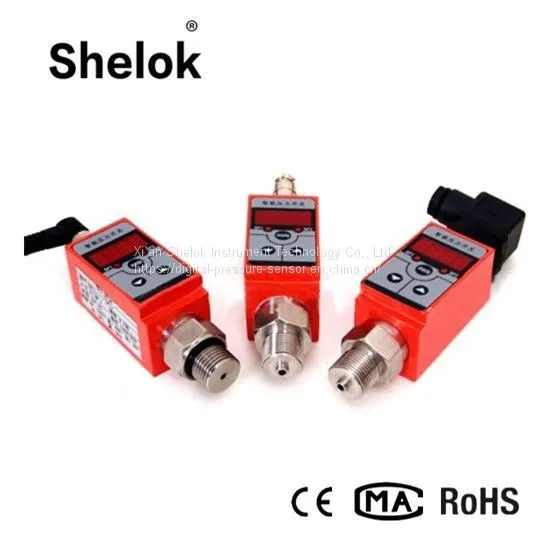

Help CenterSmart Led Water Pump Automatic Pressure Control Switch Oil Air Pressure Switch
Related Products
-
High Pressure Digital Vacuum Pressure SwitchUS$ 85 - 200MOQ: 1 Piece -
Oil Air Water Steam Pressure Switch for Water PumpUS$ 9 - 20MOQ: 1 Piece
-
12 Volt Air Adjustable Steam Water R134a Engine Oil Pressure Switch VacuumUS$ 10 - 20MOQ: 1 Piece
-
Pneumatic Pressure Calibrator Pressure Gauge Calibration MachineUS$ 870 - 1400MOQ: 1 Piece
-
Ceramic Piezoresistive Capacitive Diaphragm 0-5v Low Cost Oil Car Pressure SensorUS$ 13 - 23MOQ: 1 Piece
Pressure switch is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low drift amplifier processing, into the high precision A/D converter, the digital signals into the microprocessor can processing,
through processing the signal control switch, monitoring and control of the pressure control system. Digital Air Pressure Switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.
| Name | 12V water pressure switch 24V for air compressor |
| Accuracy | ≤±0.5%FS |
| Pressure | 0-100Kpa....100MPa |
| Power supply | 12-36VDC (24VDC standard) |
| Output | 4-20mA, 0-5V, 0-10V, 1-5V, 0-5V |
| Overload | 1.5 times |
| Stability | ≤0.2% /Y |
| Display | 4 digits Led display |
| Thread optional | M20*1.5,G1/2,G1/4,NPT1/2,NPT/4,M14*1.5 |
| Display range | -1999~9999 |
| Work temperature | -20~80℃ |
| Protection | IP65 or IP67 High magnetic compatibility |
| Warranty | 12 months |
