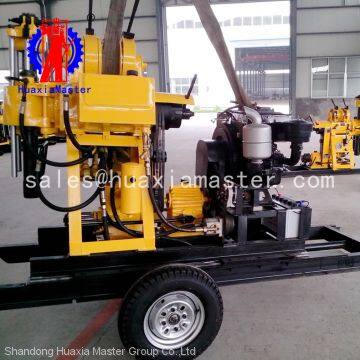

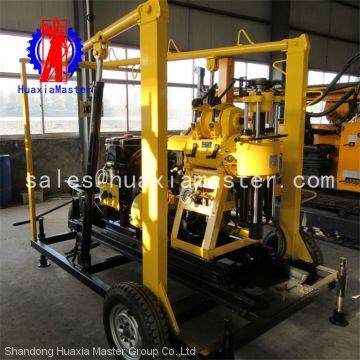

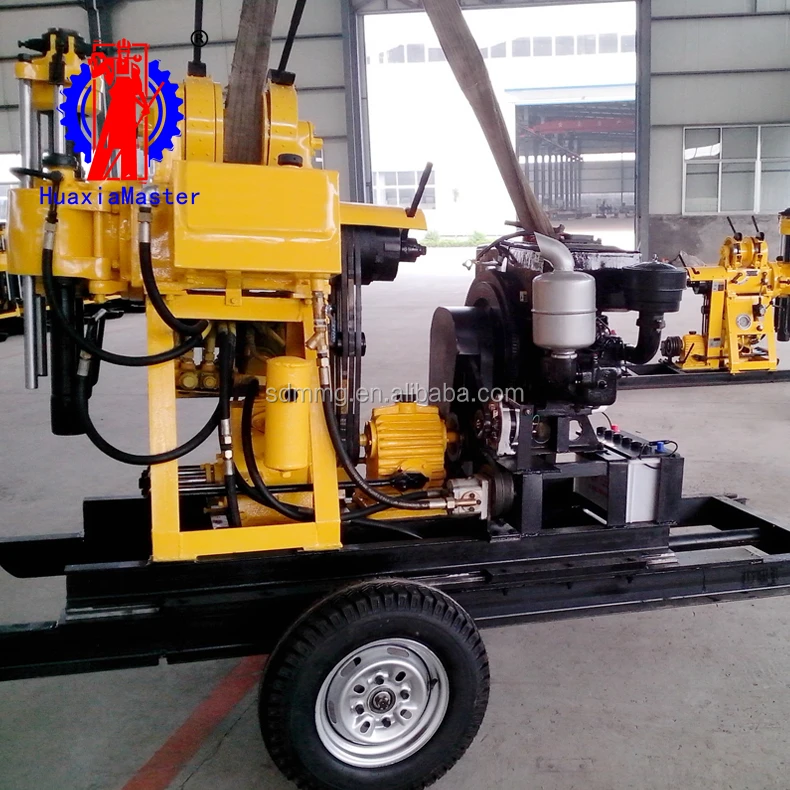

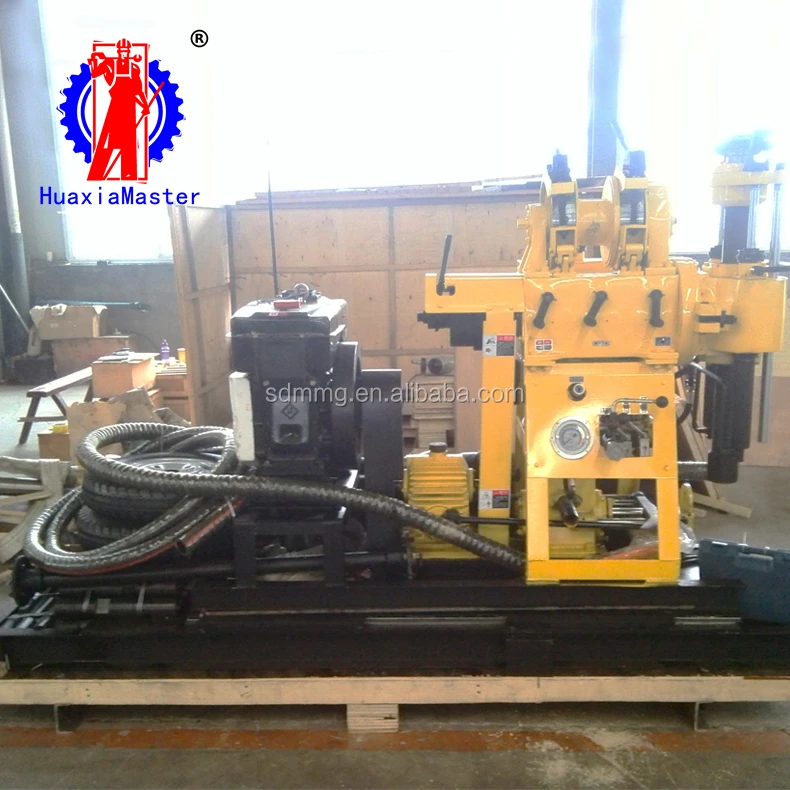

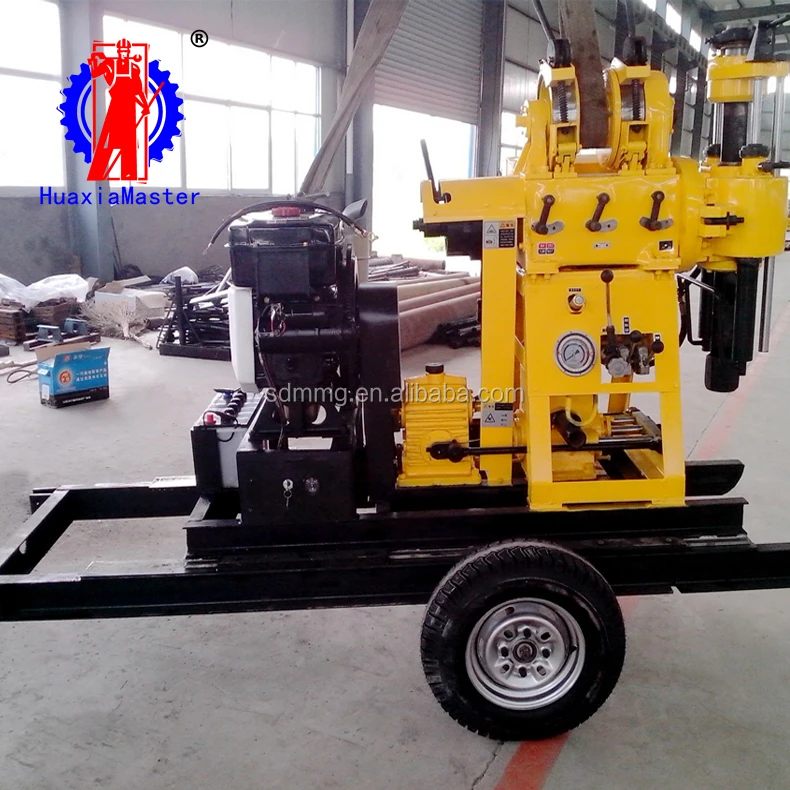

XYX-200 wheeled hydraulic core drilling rig
1. Characteristics of XYX-200 wheeled hydraulic core drilling rig
· hydraulic cylinder, high efficiency

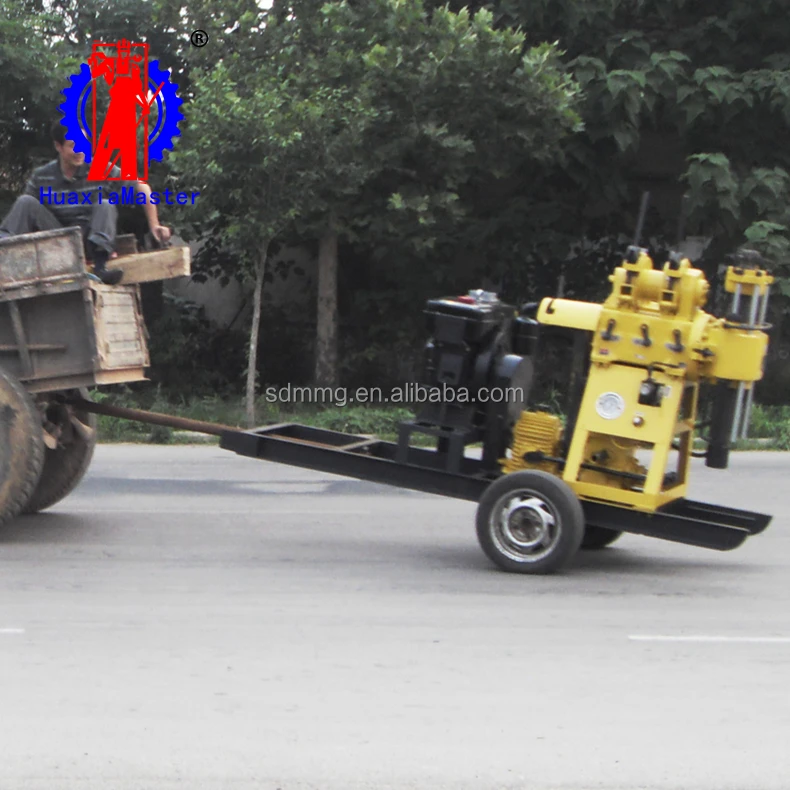

· wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.
· pressure gauge display the condition of the bottom of the drill hole.
· the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.
· the working efficiency is high and the operation is convenient, safe and reliable.
2. Technical parameters of XYX-200 wheeled hydraulic core drilling rig
XYX-200 wheeled hydraulic core drilling rig | |
Drill hole depth | 200m |
Maximum opening diameter | 300mm |
Final hole diameter | 75mm |
Drill pipe diameter | 60mm |
Borehole inclination | 90°-75° |
Rig weight (without power) | 1300kg |
Trigonometric belt | B950*4 B1700*3 |
Active moving distance | 300mm |
Power | Diesel engine/motor 22hp/16.2kw |
A vertical scroll of painting | |
Shaft rotation speed | 64/128/ 287/ 557 r/min |
Vertical axis stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 2400kg |
Single rope lifting speed | 0.41/ 0.82/1.64m/s |
Wire rope diameter | 13mm |
Wire rope capacity | 35m |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Mud pump | |
Type | Horizontal single cylinder double action |
Maximum displacement | Diesel engine 170L/min Matching motor 150L/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Inlet pipe caliber | 40mm |
Outlet pipe caliber | 30mm |
Triangle conveyer belt | B1728mm |
Type | CBT-F-314 |
Triangle conveyer belt | B1100*1 |
