Home > Products > Hydraulic rig > High quality HuaxiaMaster supply XYC-3 vehicle-mounted hydraulic core drilling rig/civil water well drilling machine equipment
High quality HuaxiaMaster supply XYC-3 vehicle-mounted hydraulic core drilling rig/civil water well drilling machine equipment
- Qingdao
- T/T L/C
You May Like
-
supply XY-44A water well drill rig/1000m rock core drilling rig /large hydraulic exploration drilling machine for sale
-
large wheeled water well drilling machine/tricycle tractor drilling rig machine/easy move and easy operated for sale
-
2000m depth exploration drilling rig/geothermal rig/xy-8 large engineering drill equipment for sale
-
HuaxiaMaster KY-150 metal mine exploration drill rig/full hydraulic deep hole sampling drill machine for sale
-
HuaxiaMaster supply impact drilling rig QTZ-1field hill handheld soil sampling drill machine for sale high quality
-
portable soil sampling equipment/geology exploration sand exploration hand soil sampling apparatus for sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XYC-3 | Type | Core Drilling Rig | |
| Certification | iso9001 | After-sales Service Provided | Overseas third-party support available | |
| Warranty | 6months | Weight | 650KG | |
| Power Type | Diesel | Usage | Ore | |
| Condition | New | Power(W) | 39KW |
Product Description

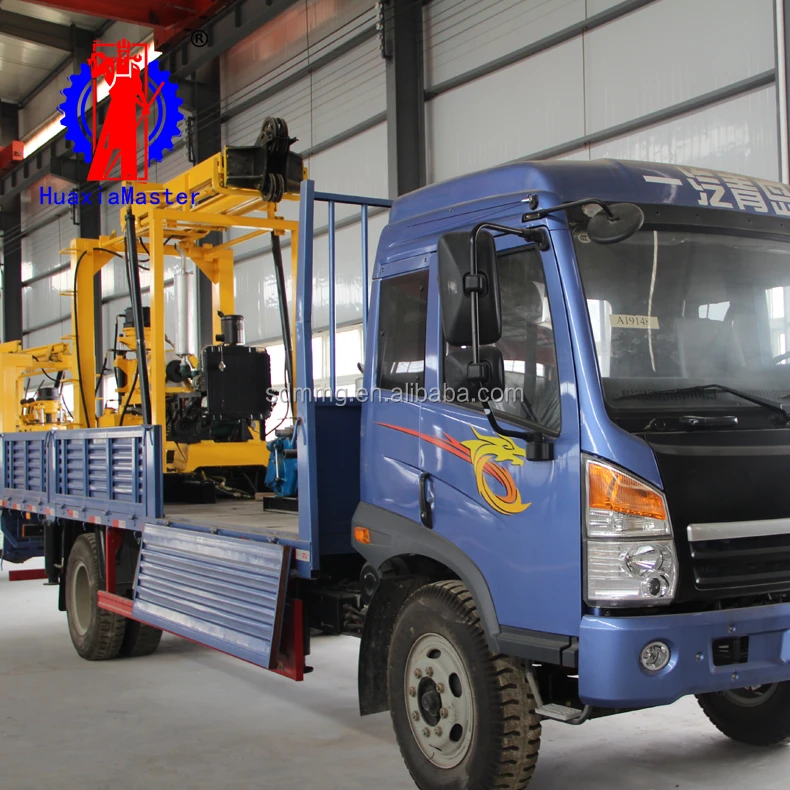

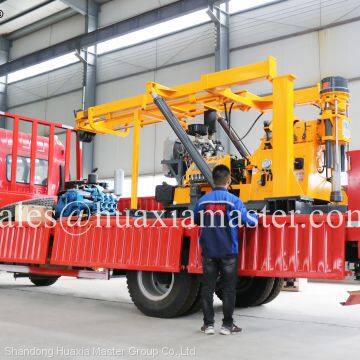

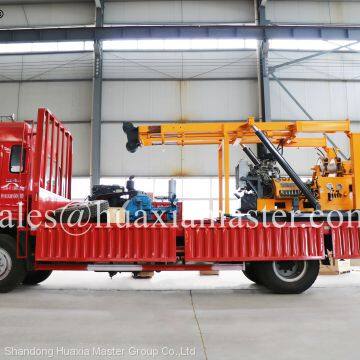

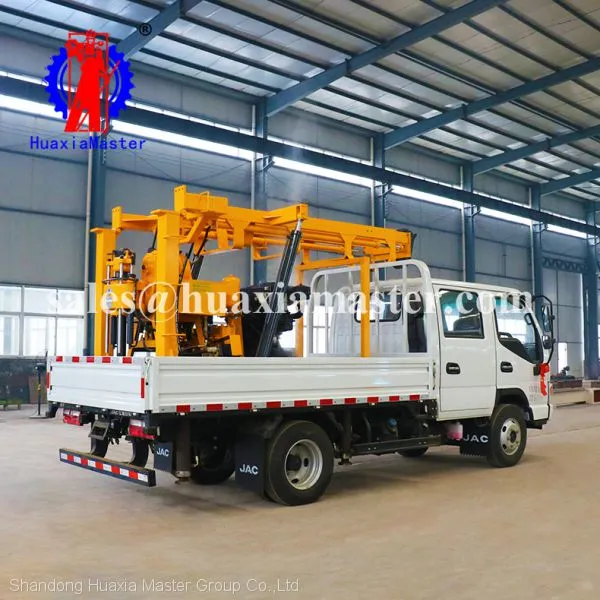

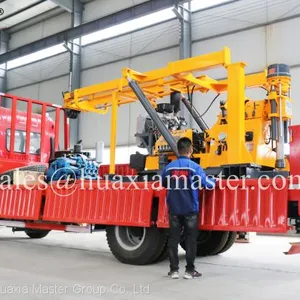

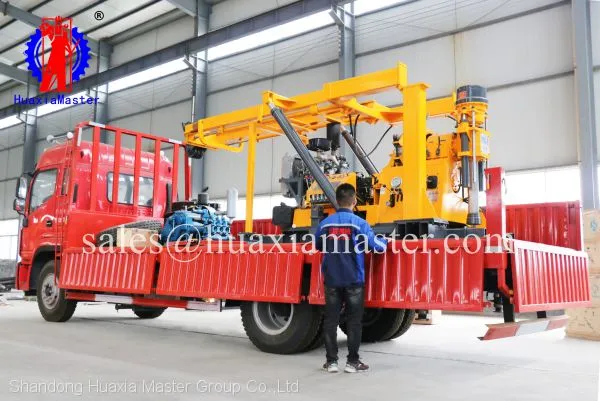

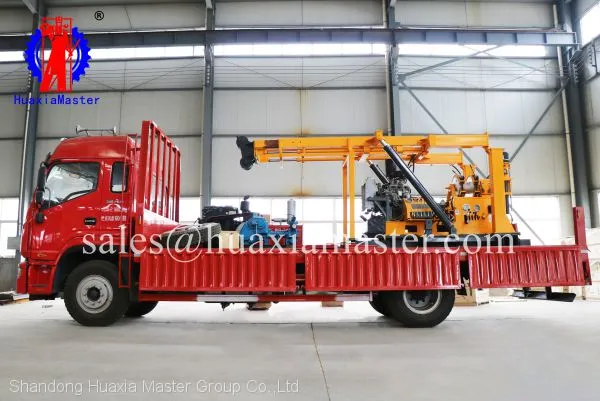

XYC-3 vehicle-mounted hydraulic core drilling rig
1.Features of XYC-3 vehicle-mounted hydraulic core drilling rig
XYC-3 is a vehicle-mounted hydraulic core drilling rig.The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis. The layout is reasonable and compact. And the operation is simple.
The drilling rig is equipped with high pressure and large flow BW-250 pump, which ensures the drilling depth and borehole diameter.
2. Applications of XYC-3 vehicle-mounted hydraulic core drilling rig
· geological survey and exploration
· road and high-rise building foundation exploration
· all kinds of concrete structure inspection holes
· river embankments
· subgrade grouting holes
· drilling and direct grouting
· civil use water wells
· ground temperature central air conditioners
3. Parameters of XYC-3 vehicle-mounted hydraulic core drilling rig
XYC-3 vehicle-mounted hydraulic core drilling rig | ||
Drilling depth | 30-600 | |
Drill hole diameter | 300-75 | |
Diameter of the end hole | 75 | |
Drill angle | 90-75 | |
Spindle forward core speed
| 30-1050 | |
Spindle reverse core speed | 29-137 | |
Spindle stroke | 600 | |
Main winch lifting force (with single line) | 3000 | |
Main winch rope capacity | 65 | |
Lifting speed | 0.3-1.9 | |
Rope diameter | 12.5 | |
Drill mast height | 7000 | |
Drill effective height
| 6500 | |
Driving drilling rod | 59*53,70*63,79*89 | |
Drilling rod diameter | 42/50/60 | |
Weight | 3500 | |
Engine | Model:Yunnei YN27 | |
BW-250 mud pump
| Rated flow (l/min) | 250 |
Rated power(mpa) | 7 | |
Driving power(kw) | 15 | |
Host weight(kg) | 500 | |
Dimension(mm) | 1110*994*665 | |
Chassis

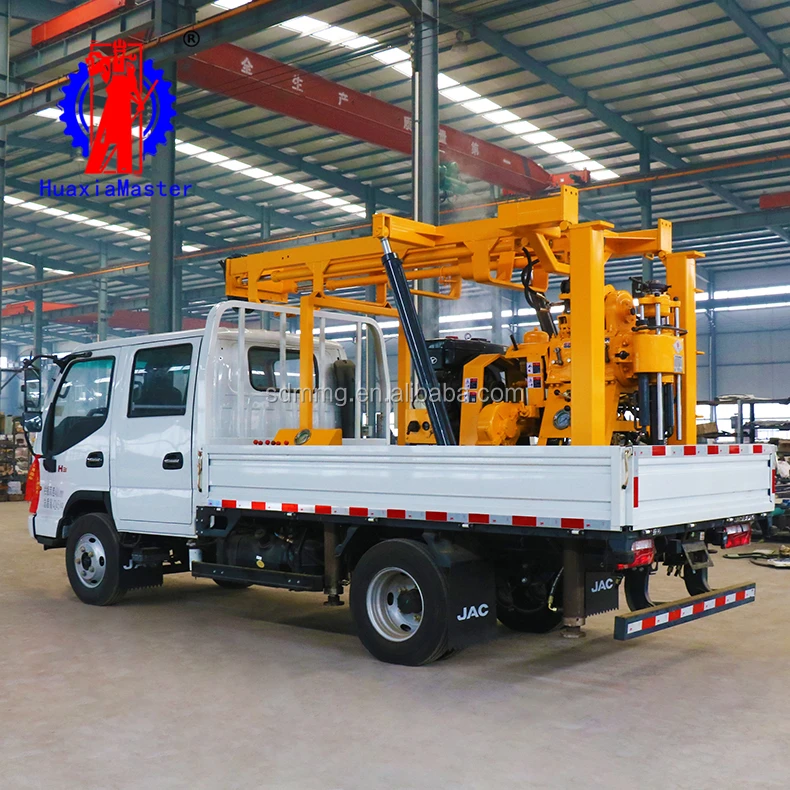

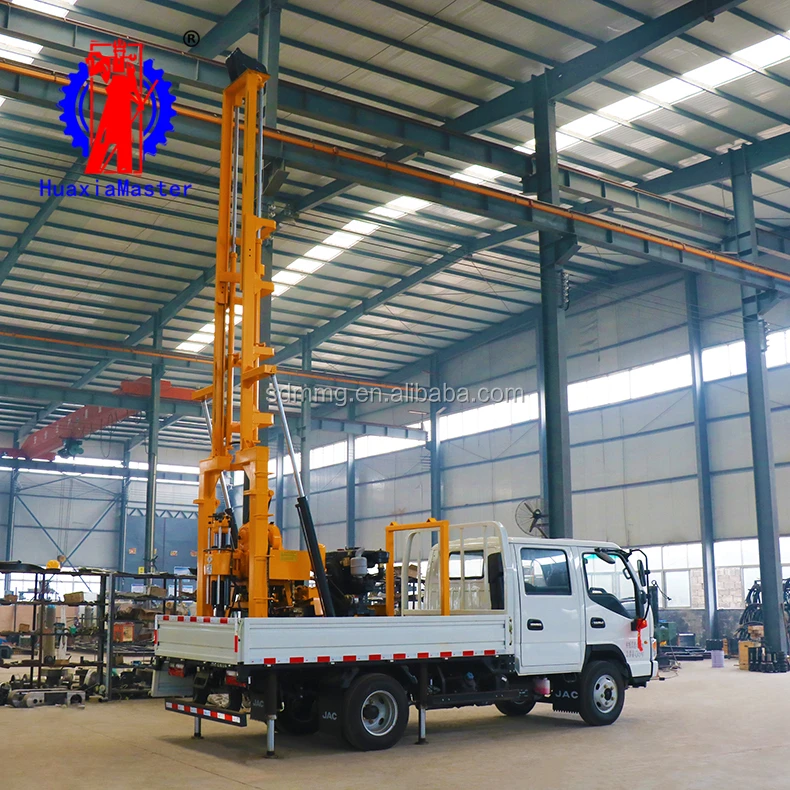

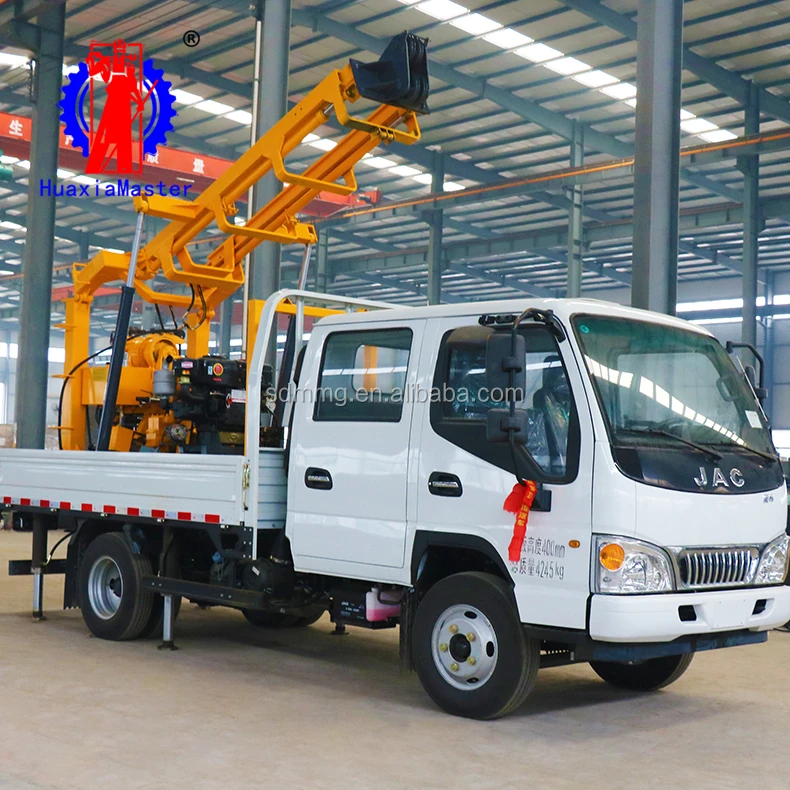

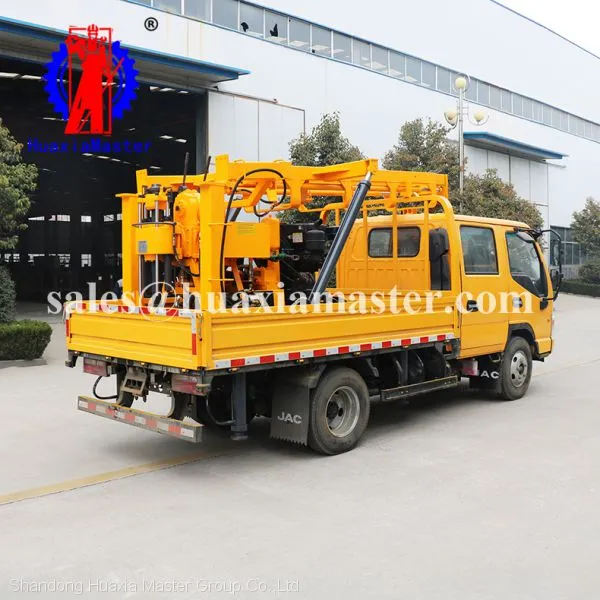

| vehicle(Pictures of vehicle-mounted drilling rigs for reference only) | |
