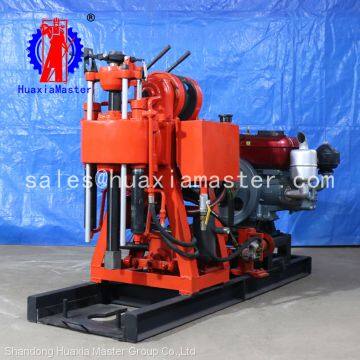

Help CenterHuaxiaMaster Professional Supply Well Machinery Equipment XY-100 Hydraulic Water Well Machine/100m Water Well Drilling Machine for Sale
Related Products
-
Hydraulic Core Drilling Rig XY-130 From HuaxiaMaster/diesel Power Geology Exploration Drill Machine Fpr SaleUS$ 4200 - 4400MOQ: 1 Set -
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in StockUS$ 4900 - 5300MOQ: 1 Set
-
China High Efficiency XY-180 Hydraulic Water Borehole Drilling Machine/ater Well Equipment Core Drilling Rig for SaleUS$ 5100 - 5300MOQ: 1 Set
-
XY-200 Core Drilling Rig Supply/high Speed Water Well Drilling Rig/exploration Drill Machine With Good Price for SaleUS$ 5800 - 6000MOQ: 1 Set
-
HuaxiaMaster Supply Water Well Rig/hydraulic Core Drilling Rig /large Size Sample Machine XY-3 for SaleUS$ 10500 - 11000MOQ: 1 Set

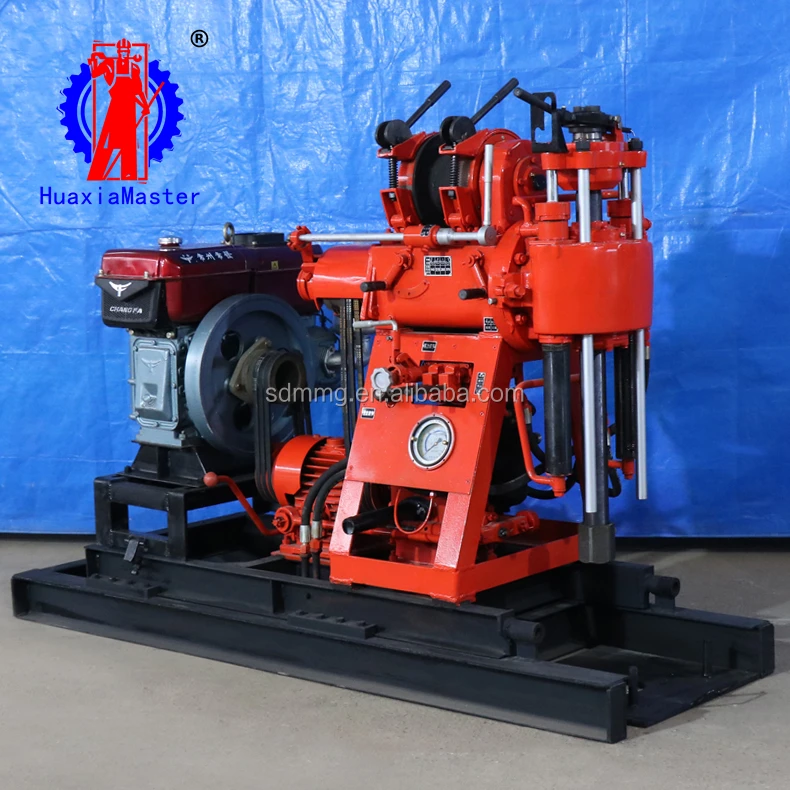

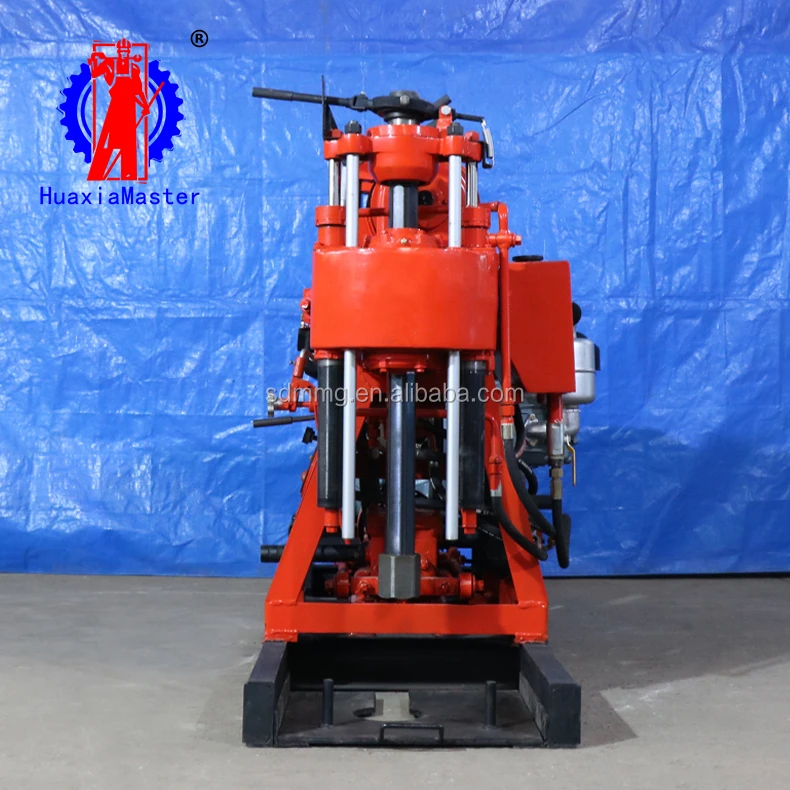

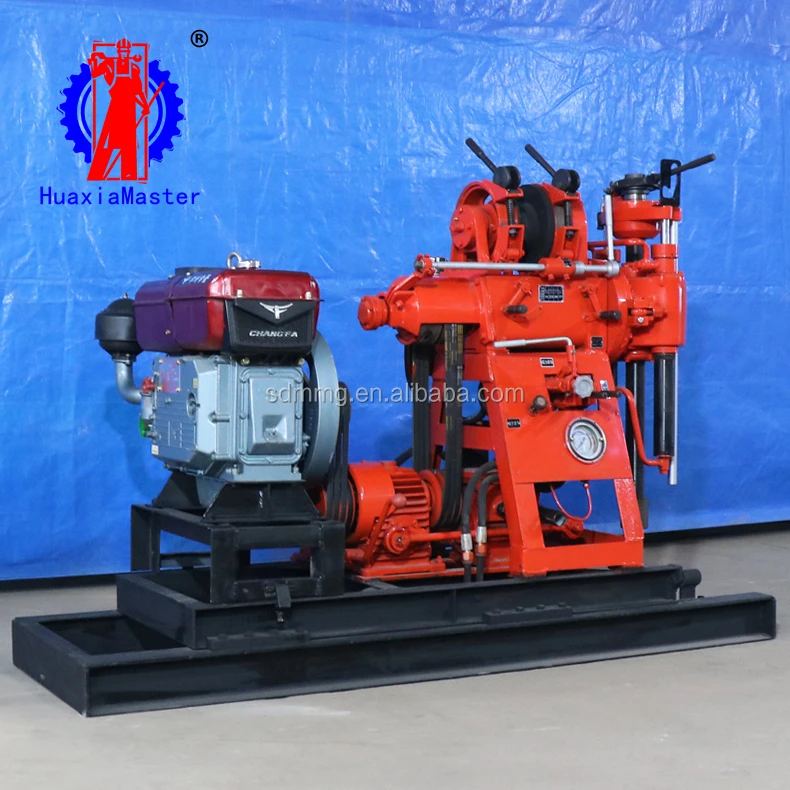

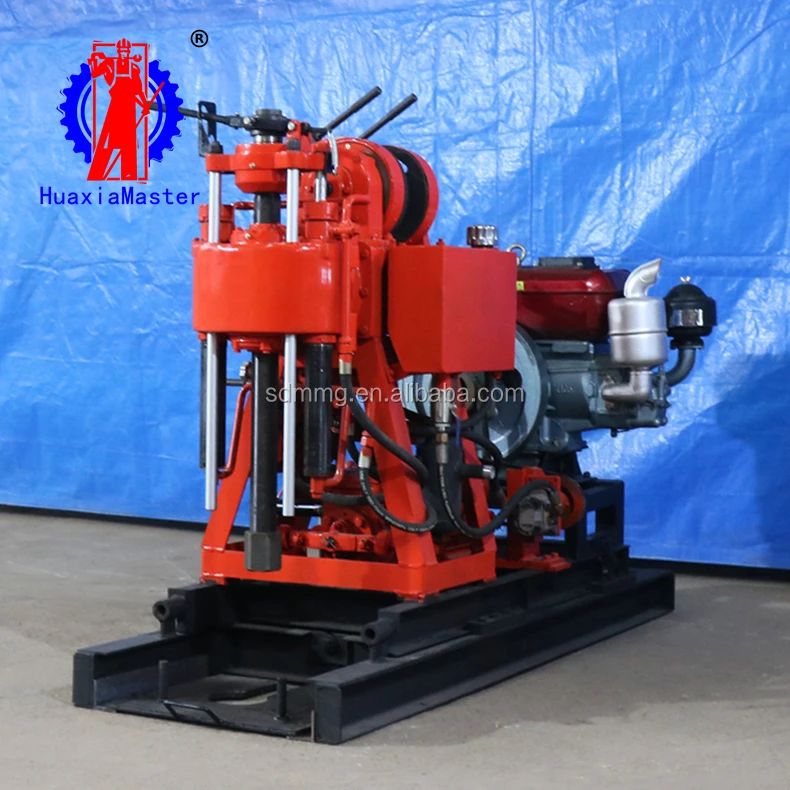

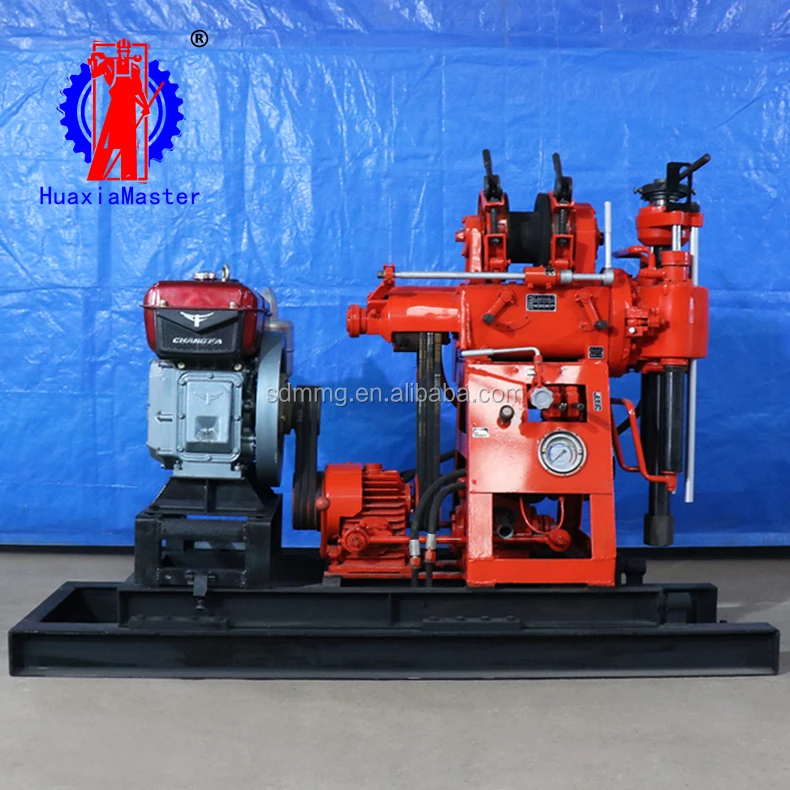

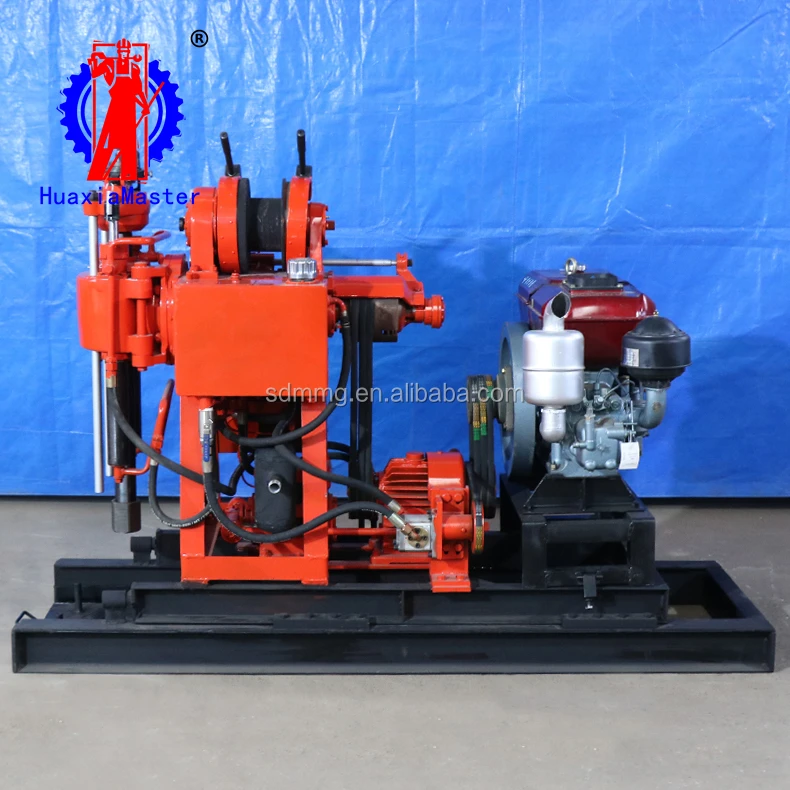

XY-100 hydraulic core drilling rig
1. Applications of XY-100 hydraulic core drilling rig
XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 hydralic core drilling rig
Drilling depth | 110 |
Maximum open hole caliber | 220mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm /42mm |
Drilling angle | 90 |
Drilling rig weight (exclude diesel engine) | 610kg |
Unity machine dimensions | 2.1*0.9*1.3m |
Spindle | |
Spindle speed | 130/300/480/730/830/1045 r/min |
Spindle stroke | 450mm |
Hoist | |
Max. lifting capacity with single rope | 1600kg |
Lifting speed with single rope | 1.06/0.67/0.32 m/s |
Wire rope caliber | 13mm |
Wire rope cubic measure | 35mm |
Hug floodgate caliber | 254mm |
Hug floodgate belt width | 50mm |
Distance between drill and hole | 230mm |
Mud pump | |
Type | Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) | 170l/min |
Max. pressure | 1.5mpa |
Work pressure | 0.7mpa |
Power | |
Diesel engine | S1100 |
Electric motor | Y160M-4 / 10KW |
