Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock

Shandong Huaxia Master Group Co.,Ltd
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock thumbnail-1
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock thumbnail-2
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock thumbnail-3
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock thumbnail-4
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock thumbnail-5

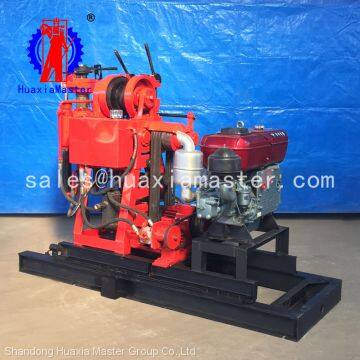

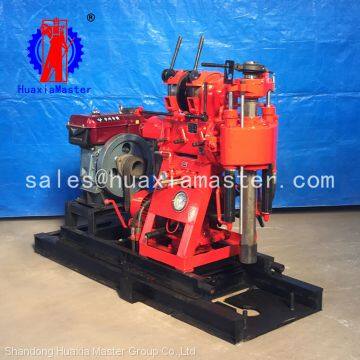

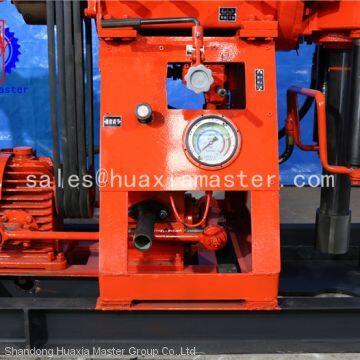

Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock photo-1
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock photo-2
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock photo-3
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock photo-4
Small Ground Drilling Rig XY-150 Water Well Drilling Machine/high Speed 100meters Drilling Equipment From HuaxiaMaster in Stock photo-5
US$ 4900 - 5300 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
XY-150
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HuaxiaMaster
Place of Origin China
Model Number XY-150
Type Core Drilling Rig
Certification iso9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 600kg
Dimension(L*W*H) 2500*1000*1200 mm
Power Type Diesel
Usage Other, water well engineering
Condition New
Power(W) 11kw


.jpg

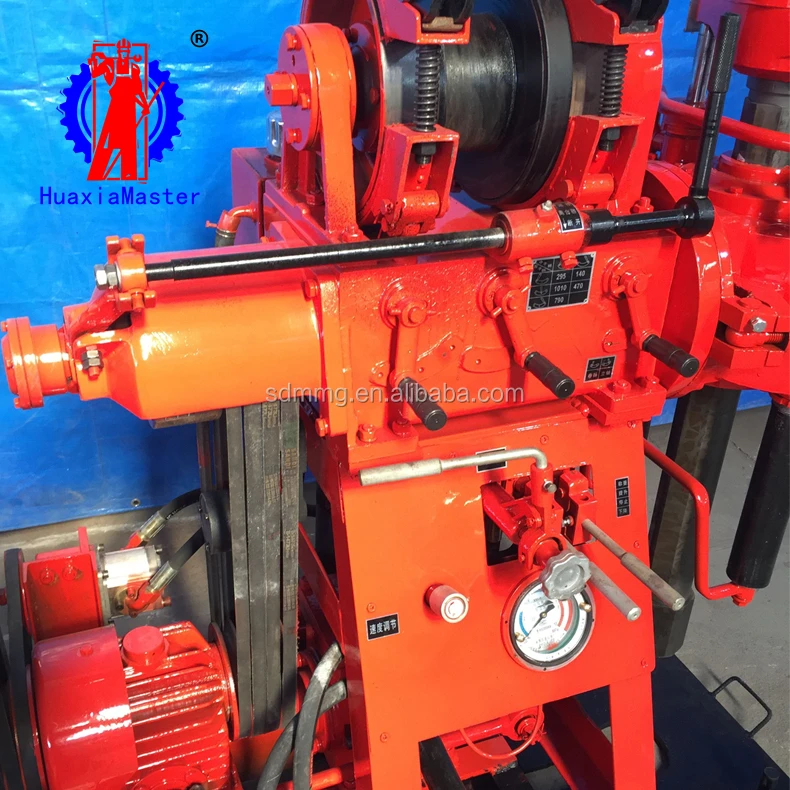

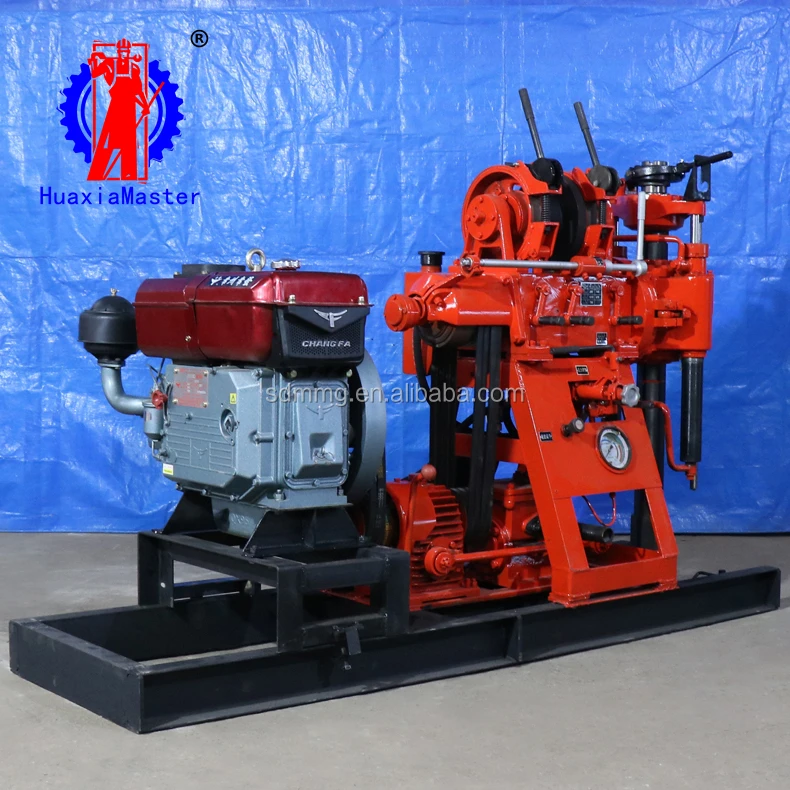

XY-150 hydraulic core drilling rig

1. Applications of XY-150 hydraulic core drilling rig

· geological survey

· geophysical exploration

· road and high-rise building foundation exploration

· water wells

· blasting holes and other drilling projects

2. Parameters of XY-150 hydraulic core drilling rig

Drilling depth(m)

150

Maximum opening diameter

219

End hole caliber



73

Rod diameter

42/50

Spindle speed (r/min)

140/295/470/790/1010

Spindle stroke

450

Hoisting capacity (kn)

14

Steel wire diameter

9.3

Maximum pressure (mpa)

1.2

Working pressure (mpa)



0.7

Displacement

150

Hydraulic pump pressure (mpa)

1.2

Hydraulic pump rotation speed (r/min)



1800

Matched driving power (diesel engine and motor)

S1105 diesel engine and 11kw motor

 .jpg

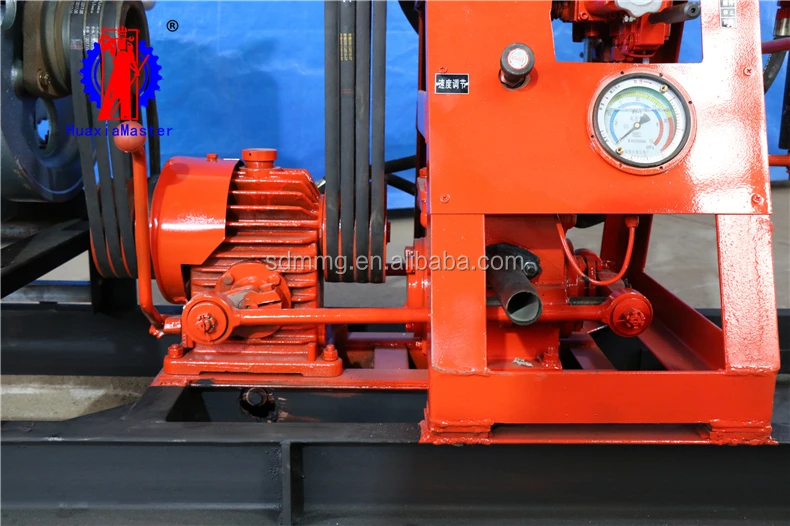

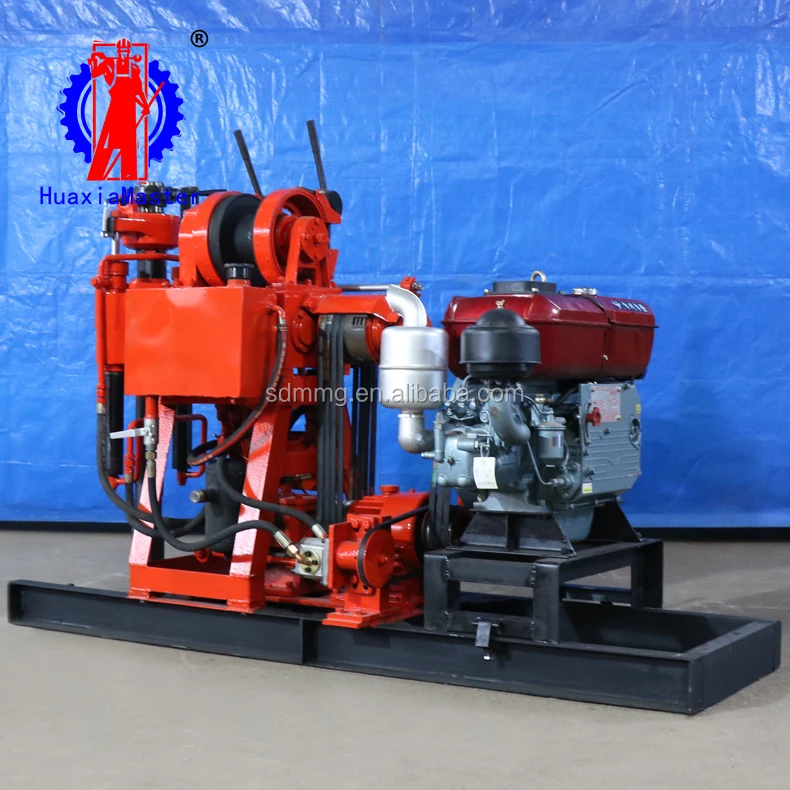

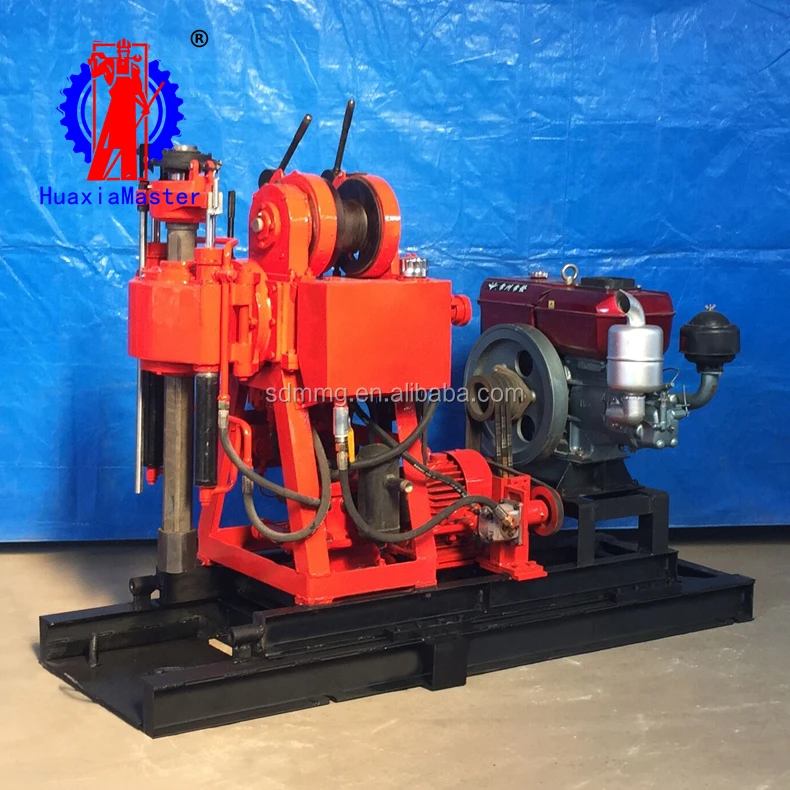

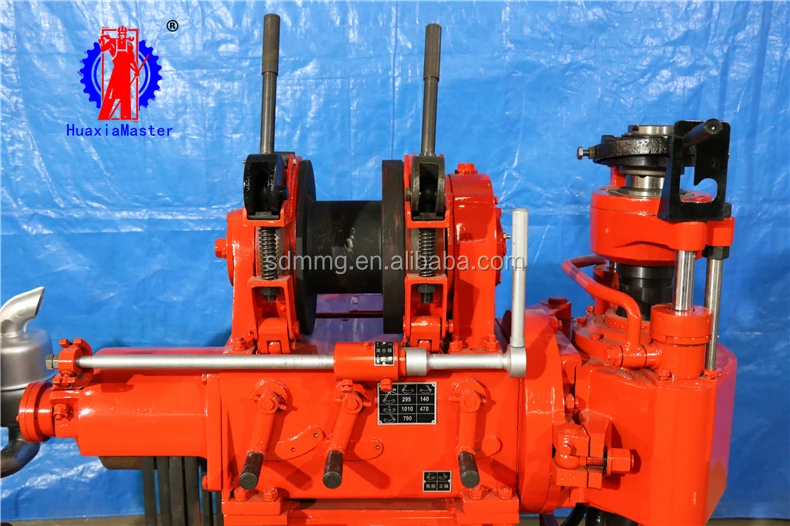

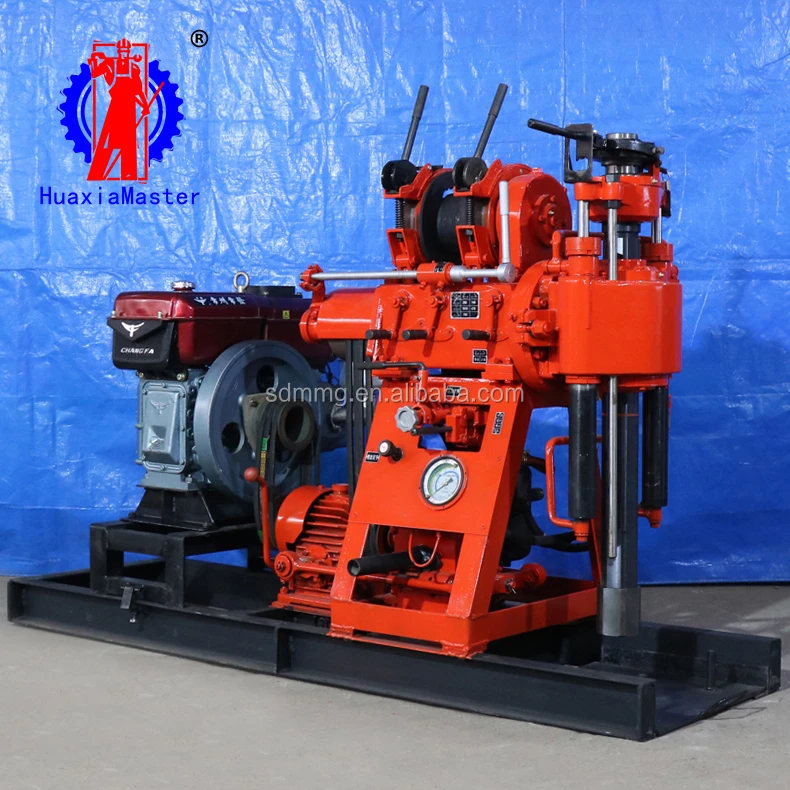

XY-1505XY-1503XY-1507XY-1501XY-1508XY-1509XY-1508XY-15010

.jpg



Product Tags: high speed 100meters drilling equipment , diamond hydraulic rock drill rig , water well drilling machine
