HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality

HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality photo-1
HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality photo-2
HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality photo-3
HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality photo-4
HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality photo-5
US$ 5000 - 5200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
HZ-130YY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HuaxiaMaster
Place of Origin China
Model Number HZ-130YY
Type Core Drilling Rig
Certification iso9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 850kg
Dimension(L*W*H) 2400*950*1400 mm
Power Type Diesel
Usage Other, water well .engineering
Condition New
Power(W) 13.2kw
Applications of HZ-130YY hydraulic core drilling rig

·this core drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.

·drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite.

·2-9 grades of sandy clay and rock.


Features of HZ-130YY hydraulic core drilling rig

·the automatic feed mechanism with oil pressure can improve the drilling efficiency and reduce the labor intensity of the workers.

·the ball card holding mechanism is used instead of the chuck, which can be operated without stopping the rod, and the operation is convenient, safe and reliable.

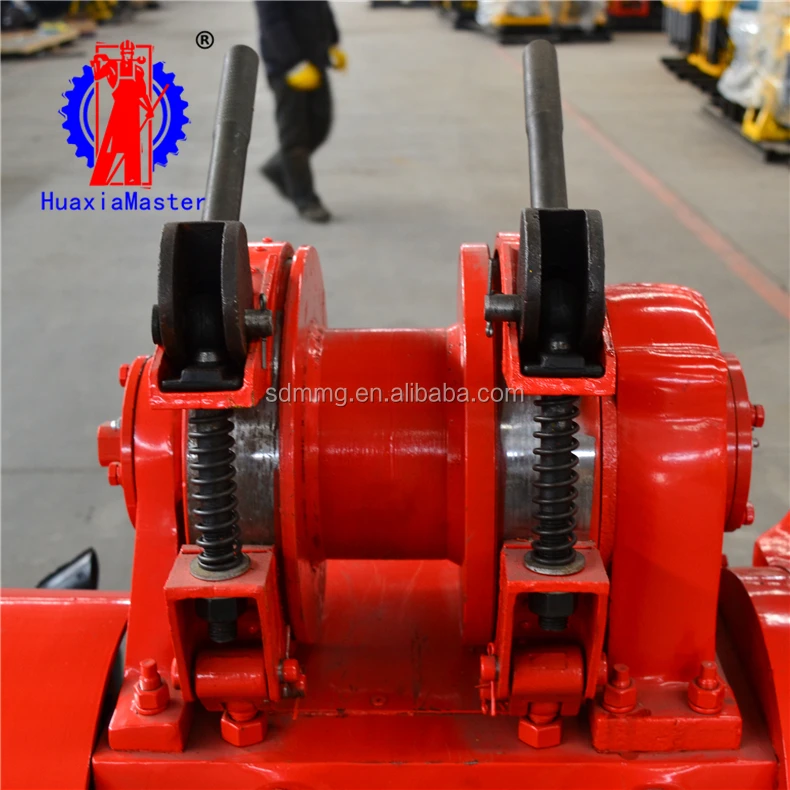

·hoist is installed with holder, forming structure of double support wheel so that it can withstand strong impact

·four groups of bearings are located in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complicated geological conditions such as the gravel layer, the pebble layer and so on.

Drill hole depth
130m
Drill pipe diameter
50mm
Maximum opening diameter
75-220mm
Borehole inclination
90°-75°
Final hole diameter
75mm
Power(diesel engine)
13.2kw 2200r/min
Take the initiative to drill pipe
53/59*4200mm
Size
850kg/2400*950*1400
