Home > Products > Hydraulic rig > Deep Hole Core Sampling Drilling Rig XY-44A/engineering Exploration Drill Machine Multi Function Mining Apply

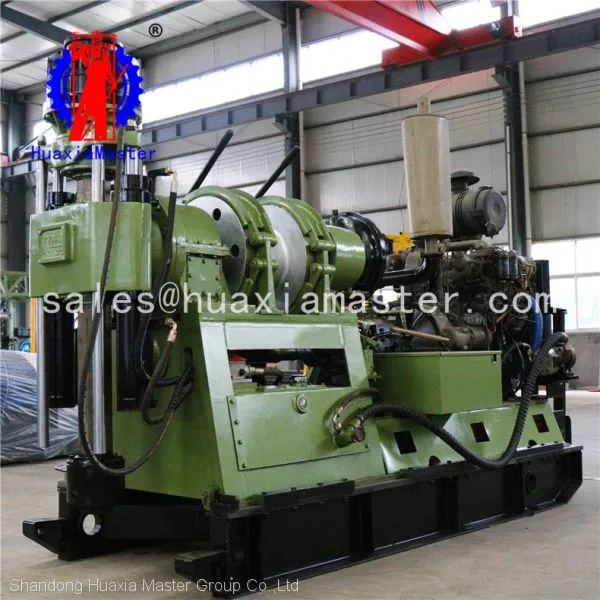

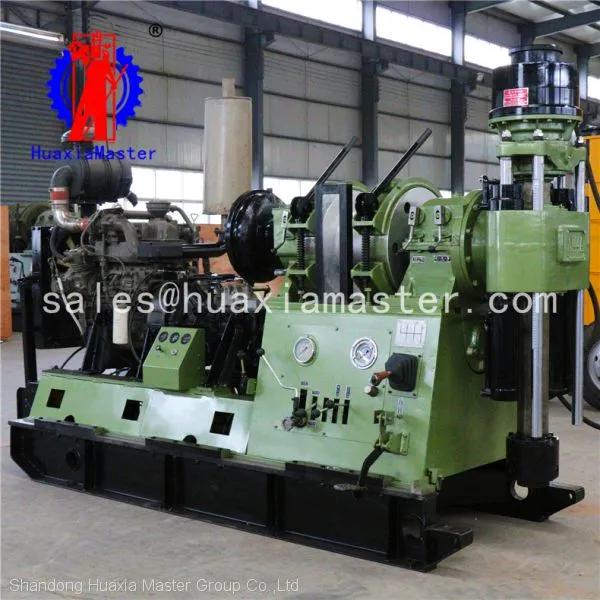

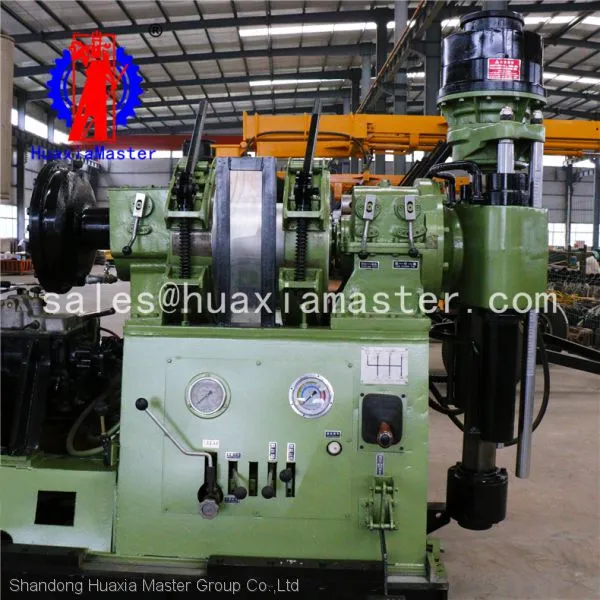

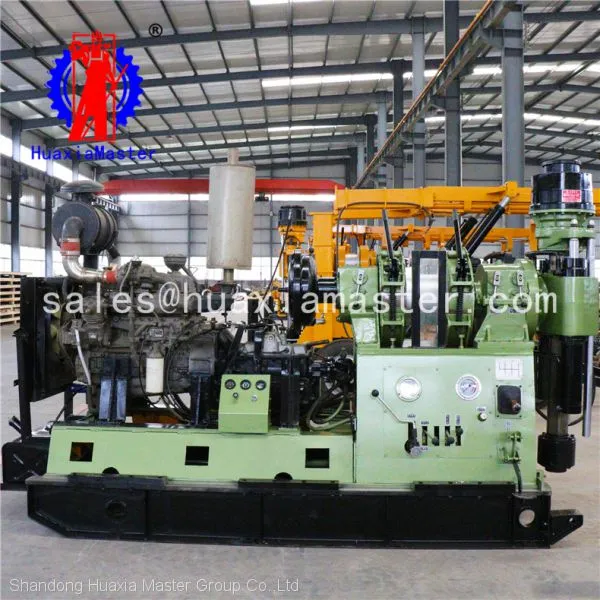

Deep Hole Core Sampling Drilling Rig XY-44A/engineering Exploration Drill Machine Multi Function Mining Apply
- Qingdao
- T/T L/C
You May Like
-
Crawler Drilling Rig XYD-3/600m Depth Hydraulic Rock Core Drill Machine/diesel Power Borehole Fast Speed for Sale
-
XYX-3 The Walking Type Hydraulic Water Well Drill Rig/large Size Geology Exploration Drilling Machine 600m Depth Rig
-
XY-200 Underground Core Drill Rig/200m Depth Civil Water Well Rig Engineering Geology Exploration Equipment for Sale
-
Huaxia Master Supply 300m Depth Pneumatic Water Well Drilling Rig/crawler Type Industry Water Well Drill Machine for Sale
-
Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig 180m Depth High Efficiency
-
Full Hydraulic Air Drilling Rig JDL-400 From Huaxia Master /soil Layer And Bed Rock Water Well Drilling Machine for Sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XY-44A | Type | Core Drilling Rig | |
| Certification | iso9001 | After-sales Service Provided | Overseas third-party support available | |
| Warranty | 6months | Weight | 2300KG | |
| Dimension(L*W*H) | 3500*1400*1900 mm | Power Type | Diesel | |
| Usage | Other, well engineering | Condition | New | |
| Power(W) | 81KW |
Product Description

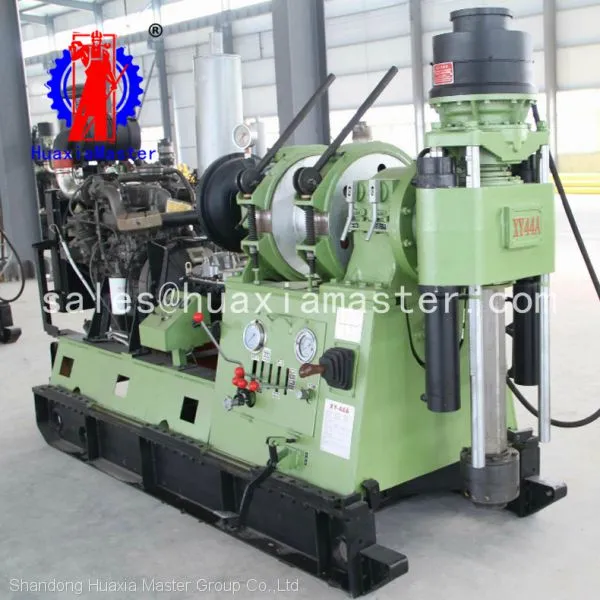

XY-44A hydraulic core drilling rig
1. Characteristics of XY-44A hydraulic core drilling rig
XY-44A is a hydraulic core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2. Applications of XY-44A hydraulic core drilling rig
Core drilling rig
Engineering geology exploration,
hydrology and core drilling
large diameter foundation piles construction
3. Parameters of XY-44A hydraulic core drilling rig
XY-44A hydraulic core drilling rig | |
Drilling depth | 600-1400m |
Max open hole caliber
| 300mm |
End hole caliber | 75mm |
Drilling rod diameter | 60mm |
Drilling angle | 90-65 |
Drill rig moving stroke | 450mm |
Spindle | |
Spindle speed ( Diesel Engine)
| Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
Reverse 65 201r/min | |
Spindle speed ( Electric Motor) | Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
Reverse 54 167r/min | |
Spindle stroke
| 600mm |
Spindle max. pressure force | 90kn |
Spindle inner diameter | 96mm |
Lifting capacity | 120kn |
Main hoist | |
Max.single line lifting capacity
| 45kn |
Max.single line lifting speed | 0-45m/s |
Wire rope caliber | 17.5-18.5mm |
Hoist capacity of wire line | 90-110m |
Roller diameter | 140mm |
Wirerope diameter
| 6mm |
Wire rope length | 450m |
Mud pump | |
Type | BW-250 |
Displacement | 250 l/min |
Work pressure | 80kg/cm² |
Water inlet pipe diameter | 75 mm |
Water outlet pipe diameter
| 50 mm |
Power | |
Diesel engine | YC4E135-1 81KW |
Electric motor | Y225S-4 37KW |
