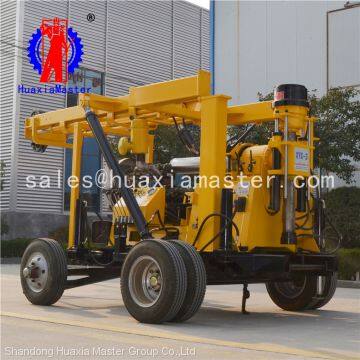

XYX-3 The walking type hydraulic water well drill rig/large size geology exploration drilling machine 600m depth rig
- Qingdao
- T/T L/C
You May Like
-
XY-200 underground core drill rig/200m depth civil water well rig engineering geology exploration equipment for sale
-
Huaxia master supply 300m depth pneumatic water well drilling rig/crawler type industry water well drill machine for sale
-
crawler pneumatic water well drilling rig FY180/full automatic hydraulic water well rig 180m depth high efficiency
-
full hydraulic air drilling rig JDL-400 from huaxia master /soil layer and bed rock water well drilling machine for sale
-
QTZ-3D portable soil sampling rig/impact drilling rig/ light sample equipment waterless no pollution for sale
-
gasoline power high-frequency vibration fast speed 10m soil sampling drilling rig easy operated by one person for sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XYX-3 | Type | Core Drilling Rig | |
| Certification | iso9001 | After-sales Service Provided | Overseas third-party support available | |
| Warranty | 6months | Weight | 2600KG | |
| Dimension(L*W*H) | 4200*2000*2300 mm | Power Type | Diesel | |
| Voltage | 380v | Usage | Other, well engineering | |
| Condition | New | Power(W) | 22KW |
Product Description

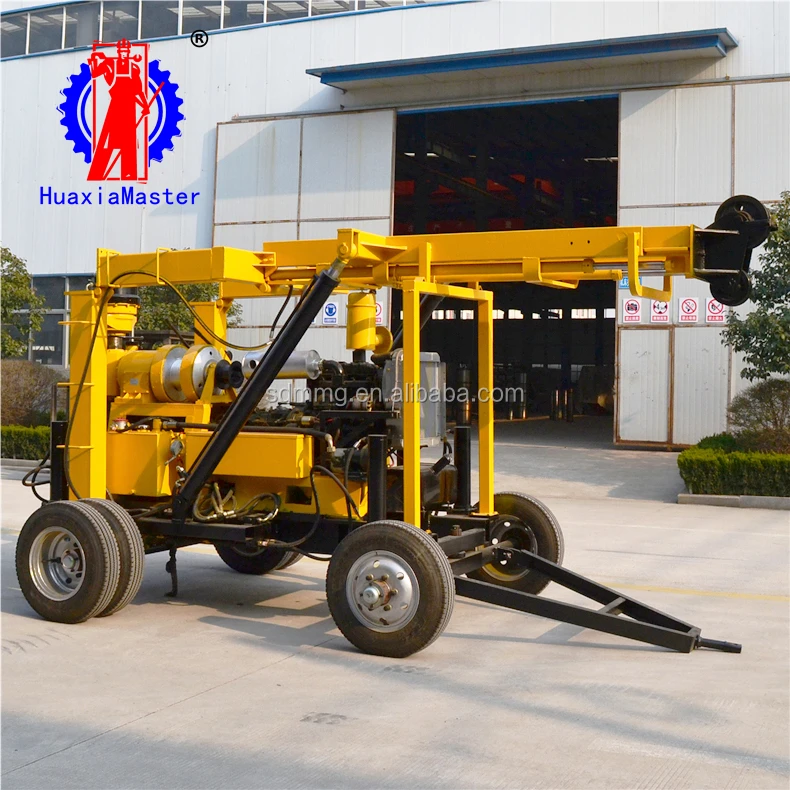

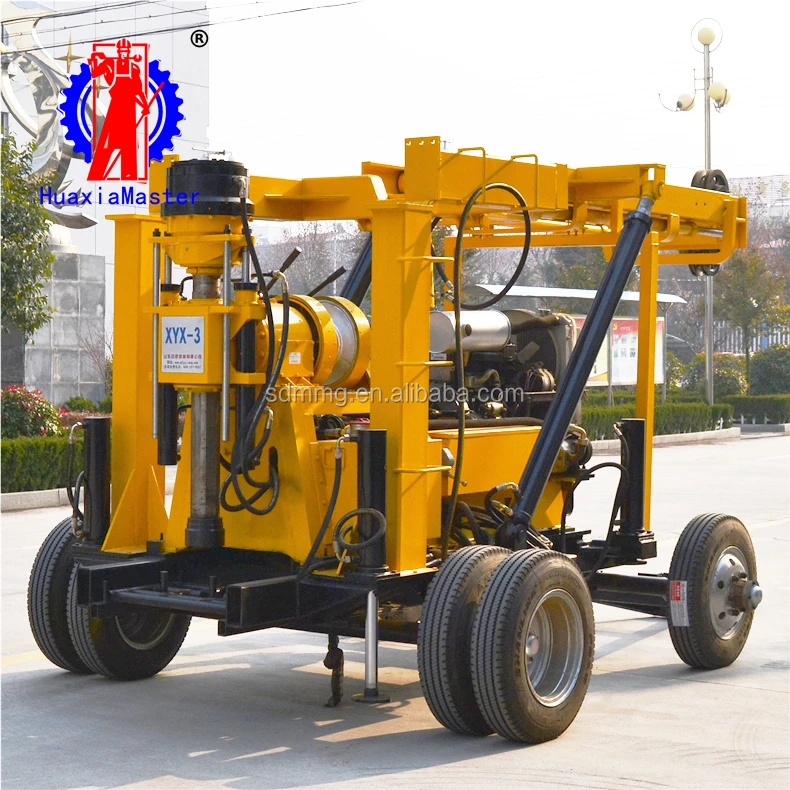

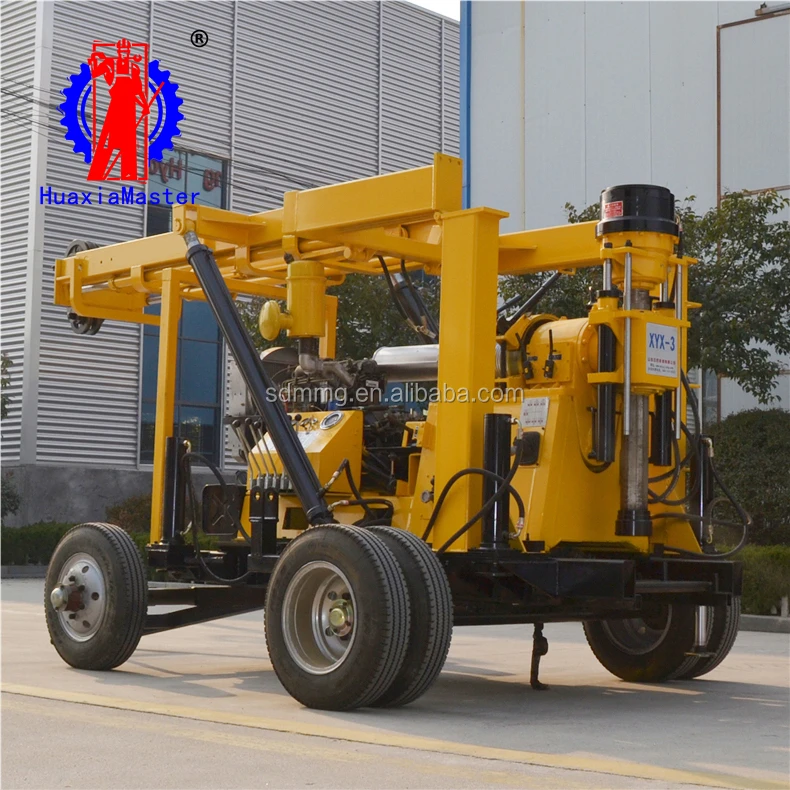

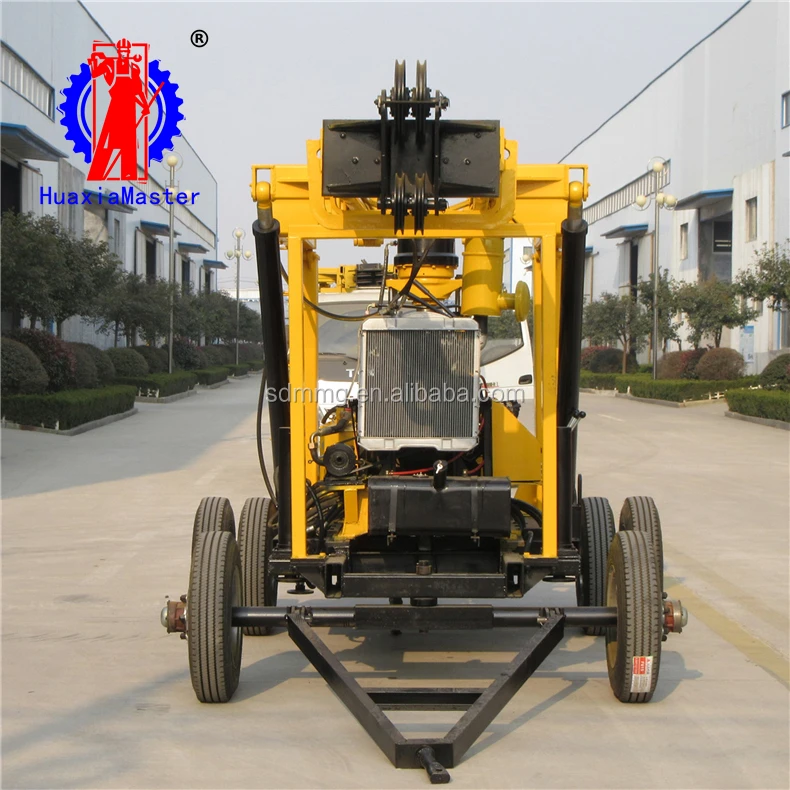

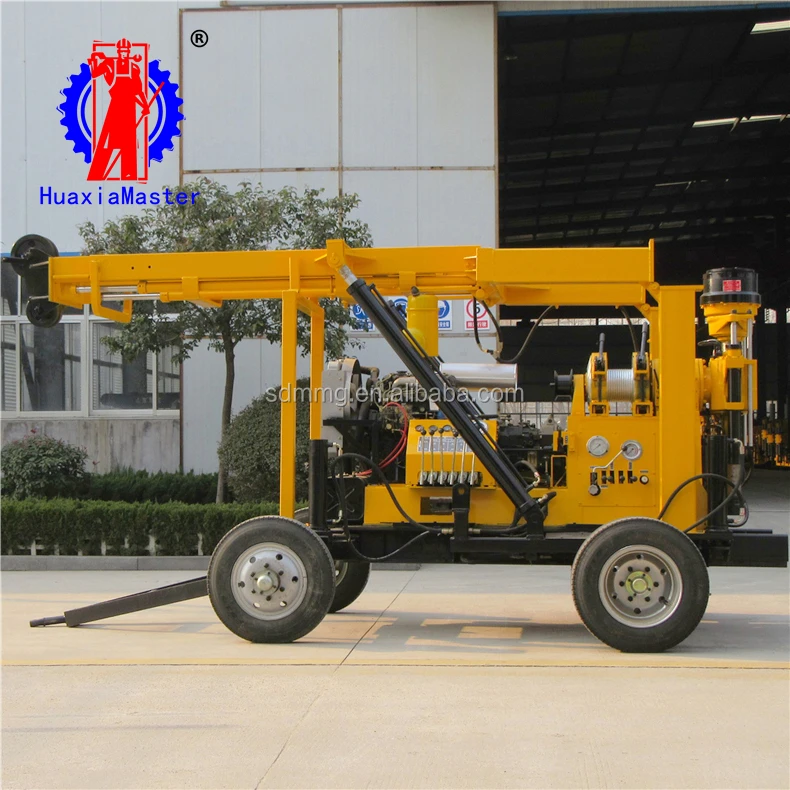

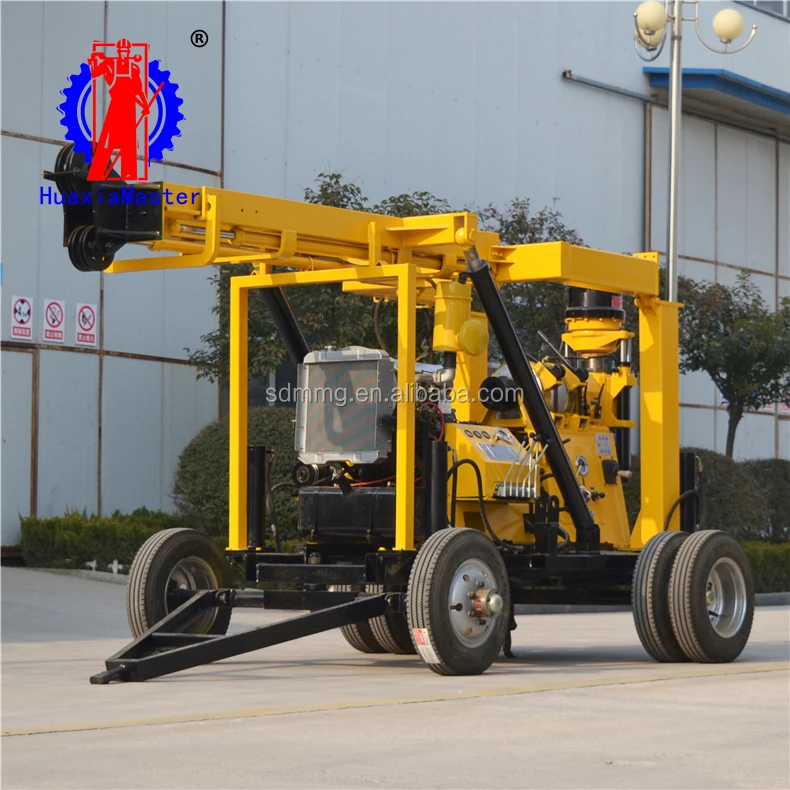

XYX-3 wheeled hydraulic core drilling rig
1. Characteristics of XYX-3 wheeled hydraulic core drilling rig
· The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
· Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
· With oil pressure feeding mechanism to improve drilling efficiency
· The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.
· The lifting and falling tower is hydraulic operation, which is convenient and reliable.
· The diesel engine uses electric start to reduce the labor intensity of the worker.
2. Parameters of XYX-3 wheeled hydraulic core drilling rig
Drilling depth | 100/ 250 / 300/ 600 m |
Maximum opening diameter
| 300 / 200 /150 / 75mm |
Max open hole caliber | 300mm |
Final hole diameter | 75mm |
Drill pipe | 60mm |
Borehole inclination
| 90°-65° |
A vertical scroll of painting | |
Vertical rotation speed of vertical axis 30-1050r/min | |
Vertical reversal speed | 29-137r/min |
Vertical axis stroke | 560mm |
Diameter of shaft inner hole
| 96mm |
Vertical axis lifting capacity | 60kn |
Main hoist (hydraulic drive) | |
Single rope lifting speed | 0-45m/min |
Wire rope diameter | 14mm |
Band width | 90mm |
Drum diameter
| 300mm |
Reel capacity | 30m |
Maximum lifting capacity of single rope | 40kn |
Auxiliary hoist (hydraulic drive) | |
Drum diameter | 140mm |
Diameter of steel wire | 6mm |
Reel capacity | 450m |
Mud pump | |
Mud pump | BW-250 Horizontal three cylinder |
Flow | 250 l/min |
Working pressure
| 7mpa |
Inlet diameter | 75mm |
Outlet diameter | 50mm |
Gear oil pump | |
Double oil pump | CBF-F63/25 |
Front-end flow pressure | 63 l/min 20mpa |
Backend flow pressure
| 25 l/min 20mpa |
Rig power | |
Diesel engine | FAW Xichai 4 cylinder |
Electric machinery | Y180L-4 22KW |
Wheeled chassis | |
Bearing capacity of wheel chassis
| 3.5t |
Wheel chassis length | 2.6m |
Wheel chassis width | 2m |
Wheel chassis height | 0.6m |
