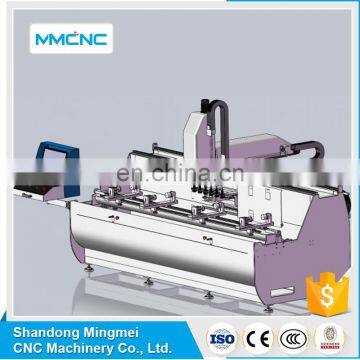

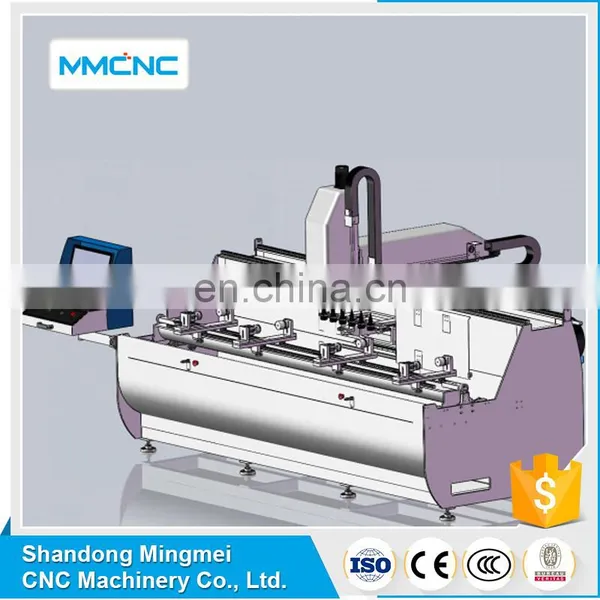

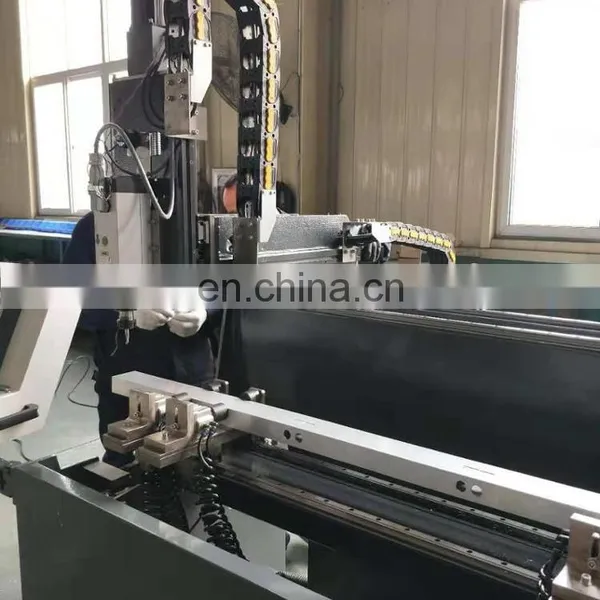

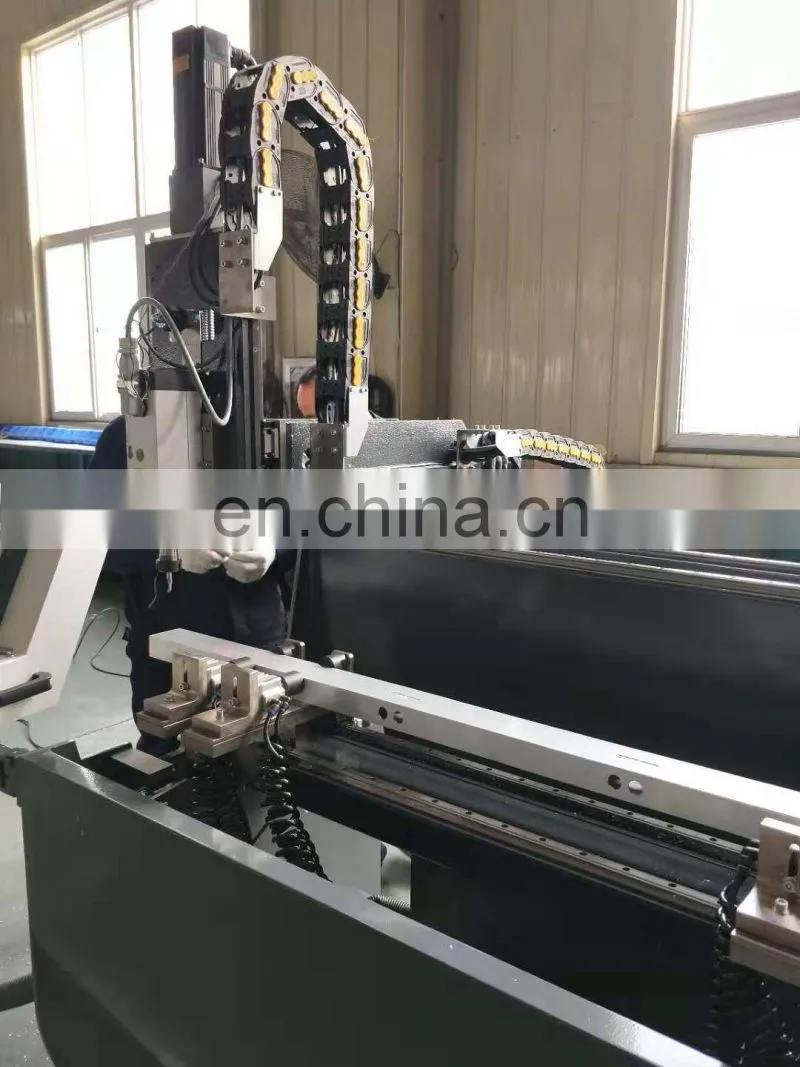

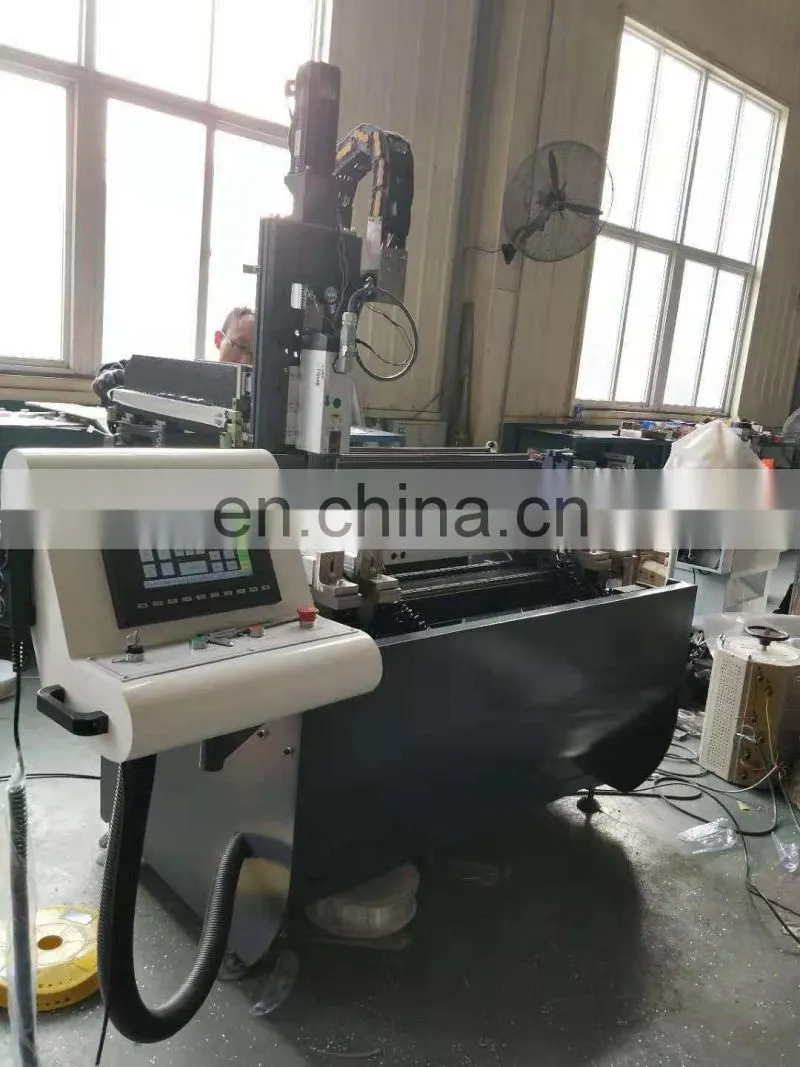

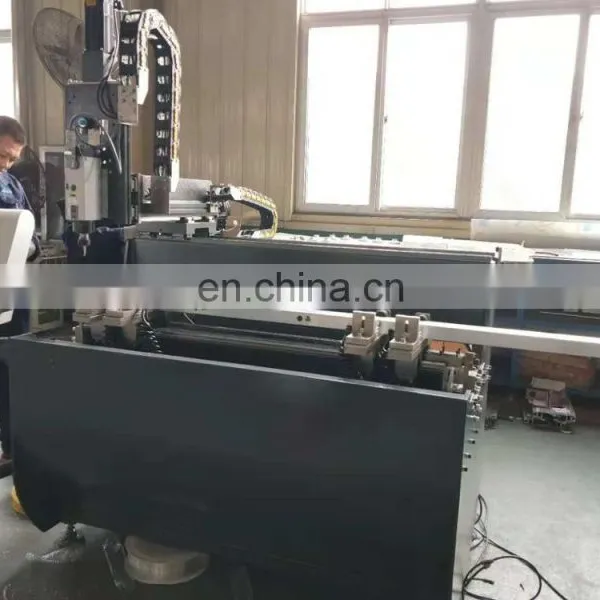

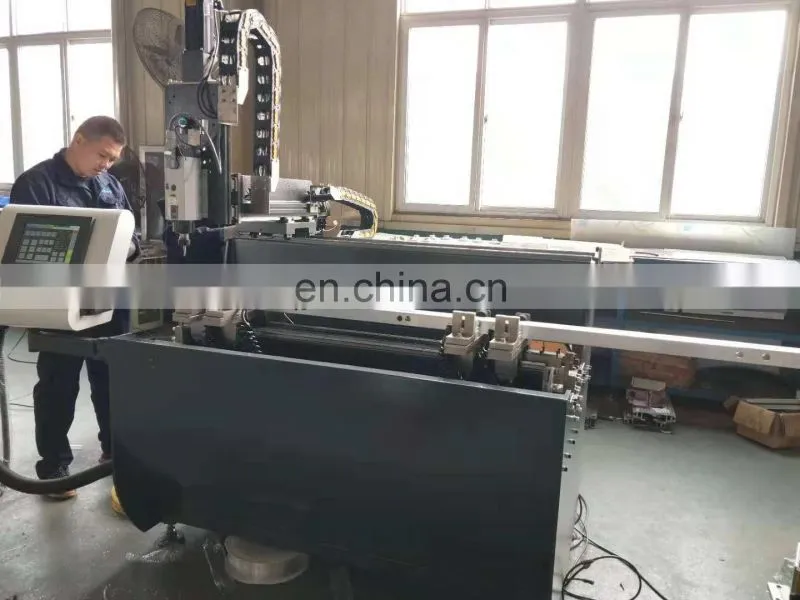

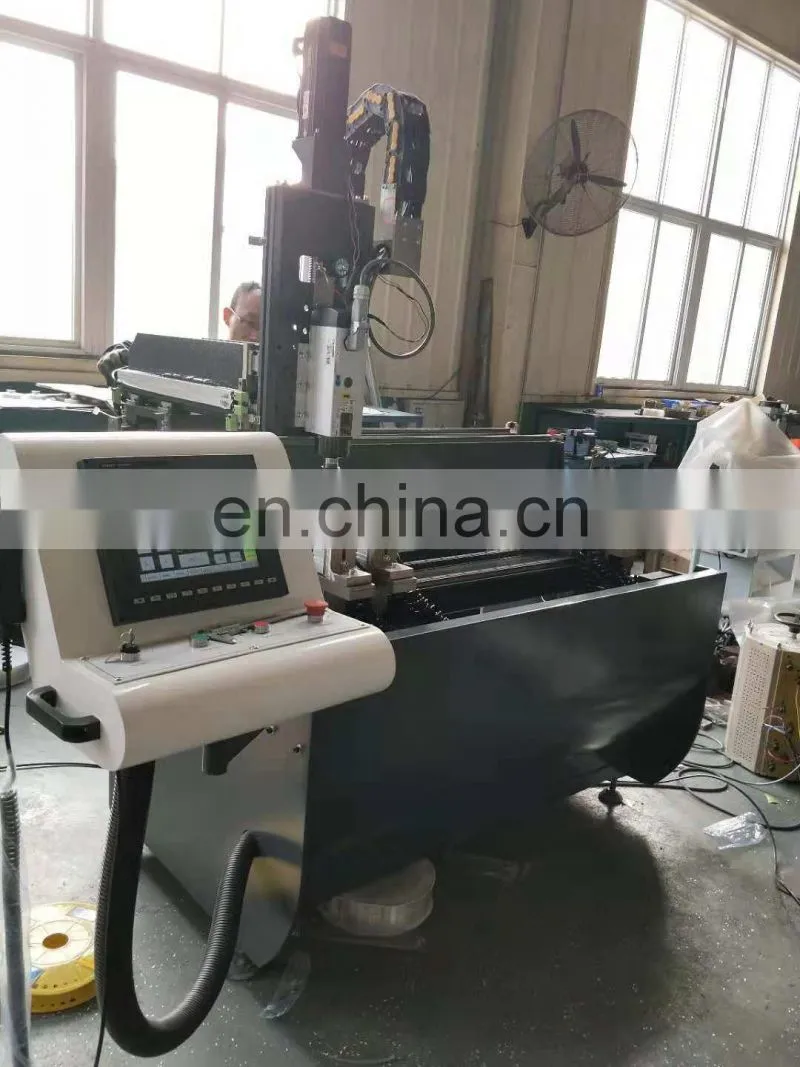

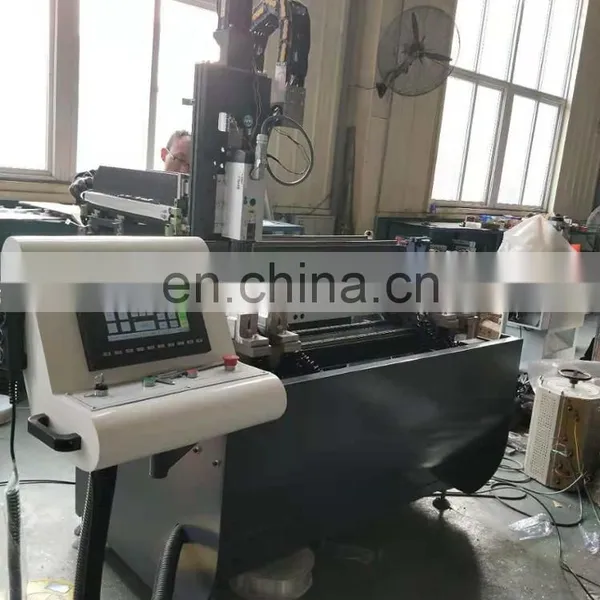

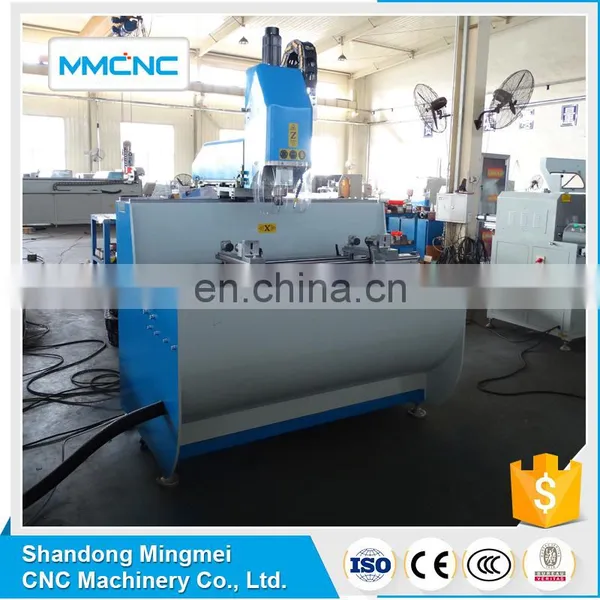

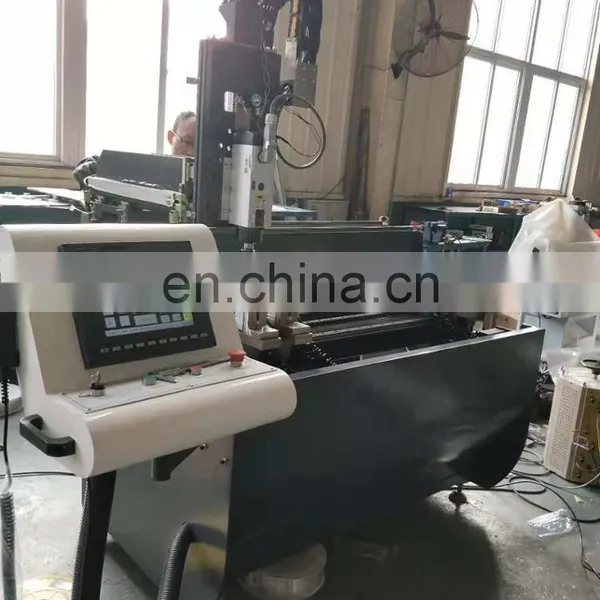

Aluminum Profile CNC Drilling Milling Machine
SKX-CNC-1200
1. Feature
1.1 Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
1.2 System adopts Taiwan Syntec CNC controller.
1.3 Adopting electric spindle; high precision, high safety and reliability
1.4 X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission; steady transmission and high precision.
1.5 By using programming software to automatically transform and process G code; easy operation; high efficiency and low labor intensity.
1.6 Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision.
2. Specification
Parameter |
|
Air Pressure | 0.5~0.6MPa |
X/Y/Z Axis stroke | 1200mm*300mm*280mm |
Input Voltage | 380V 50Hz or As Customer need |
Input Power | 3Kw |
Handle type | ER25*Φ8 |
Processing range | 100*140 |
Overall size | 2200×1500×19500mm |
Weight | 700kg |
Main accessory |
|
Control system | Taiwan Syntec |
Solenoid valve | Germany FESTO |
Cylinder | PC(FESTO Joint Venture Brand) |
Motor | Anhui Sanyang (Best Chinese Motor Brand) |
Air Filter Device | STNC |
Electrical Button and Switcher | Schneider |
AC Contactor and Circuit Breaker | Schneider |
Approach Switch | Taiwan Delta |
Guide rail | Taiwan Hiwin |
