Mulion Cutting Saw for PVC Profile

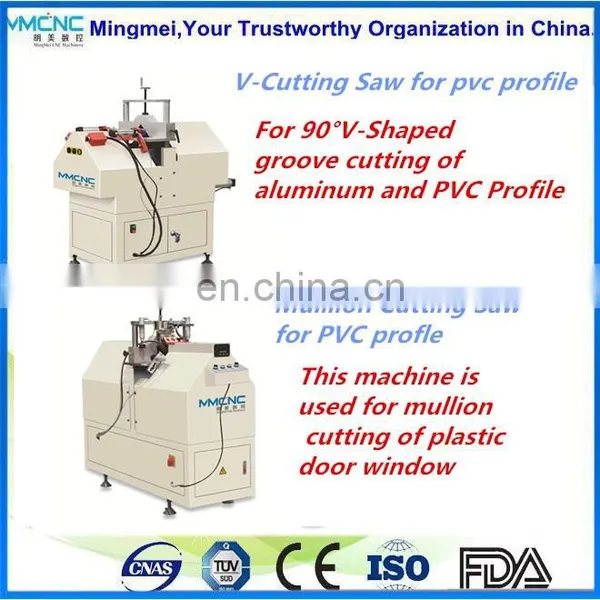

This machine is used for mullion cutting of plastic door window
1.Equipment Features |
For our Mullion Cutting Saw PVC Profile Saw |
Model SVJ-45
1.1 This machine is used for mullion cutting of plastic door window
1.2 Two cutting blades are in the space of 90 degree layout,a clamp is installed at the same
time to complete two v-shape cutting head ,with high cutting precision and high productivity
1.3 Horizontal structure for high cutting precision
1.4 Special clamping device,no pop material
1.5 Cutting waste is produced in the curf only,make good use of the profiles
2.Technical Parameter |
For our Glazing Bead Saw PVC Profile Saw |
1 |
Model |
Svj-45 |
2 |
Air Pressure |
0.4~0.6Mpa |
3 |
Air Consumption |
80L/min |
4 |
Input Voltage |
380V/50Hz |
5 |
Input Power |
2x1.1Kw |
6 |
Cutting Width |
120mm |
7 |
Cutting Height |
29mm |
8 |
Cutting Range |
300~1600mm |
9 |
Overall Dimension |
1900x700x1350mm |
10 |
Weight |
about 210kg |

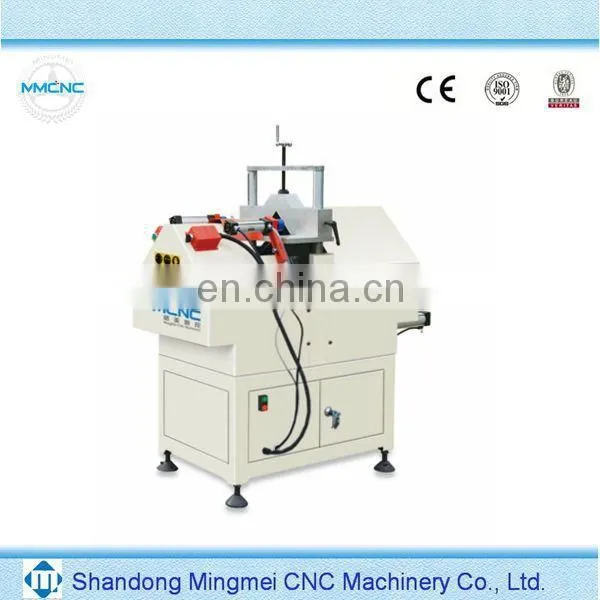

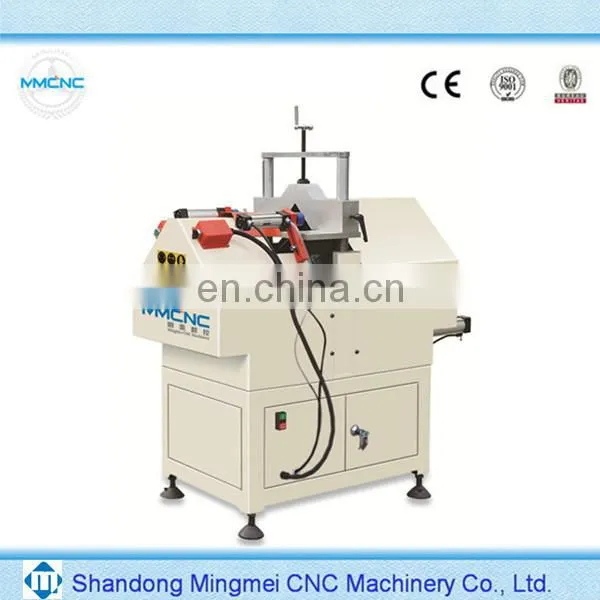

3.Whole Machine |
The Machine in the factory |

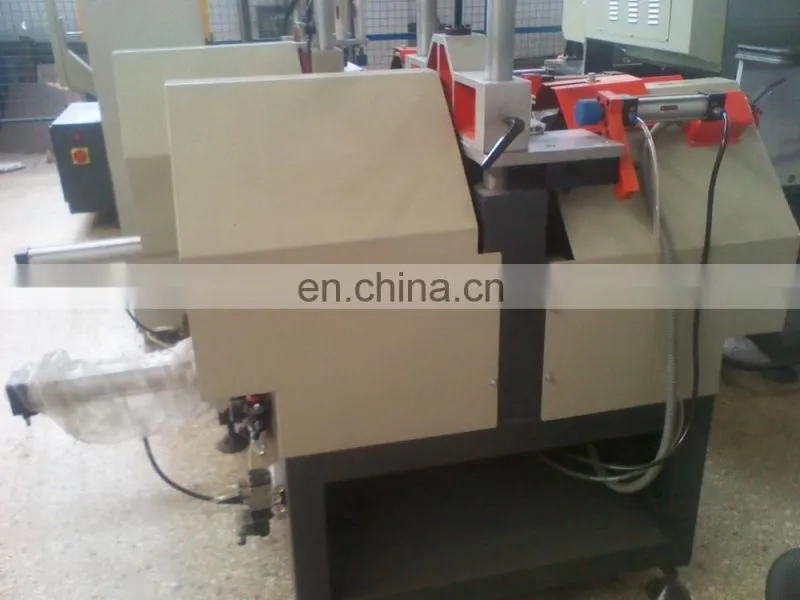

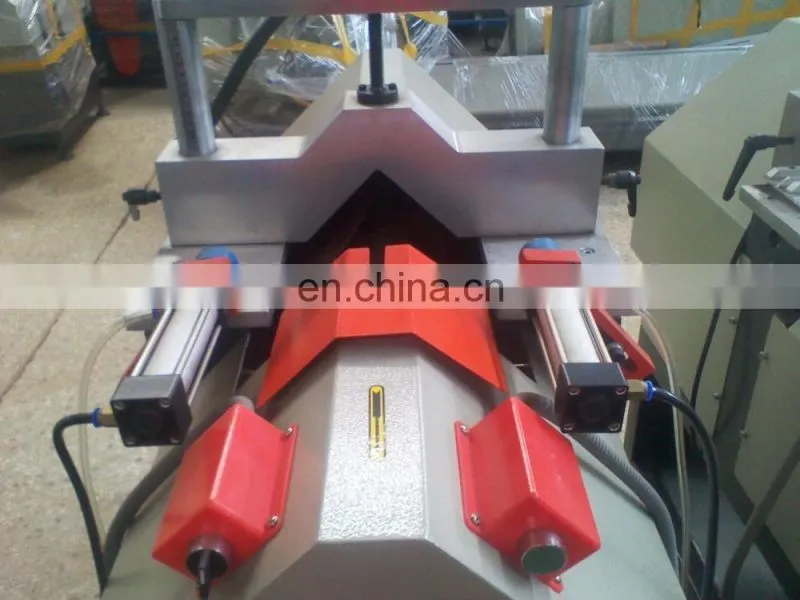

4.Detailed Photos |
Some parts of the machine |
5.Testing Machine |
Mullion Cutting Saw for PVC Profile |
