Glazing Bead Saw for PVC Profile
For 45° Glass batten cutting of aluminum and PVC Profile
1.Equipment Features |
For our Glazing Bead Saw PVC Profile Saw |
Model SYJW-18005
For 45° glass batten cutting of aluminium and PVC profile.
1).The machine is used for processing the glazing beads, with the cutting and milling blades,
it can finish the 45° cutting of two glazing beads in the back.
2).The machine is fixed horizontally so that the clamping of profile is simple and the cutting movement is stable, Thus, it ensures the high accuracy of bead processing and beautiful appearance.
3). This model is mainly cut the PVC profile glaze bead profile, if you want to cut Aluminum
profile glaze bead profile, we will change the strong saw blade for you, so that it can both
cut Aluminum and PVC profile.
4).We will make the machine according to your true local power supply.
2.Technical Parameter |
For our Glazing Bead Saw PVC Profile Saw |
1 |
Model |
SYJW-1800 |
2 |
Air Pressure |
0.4~0.6Mpa |
3 |
Air Consumption |
80L/min |
4 |
Input Voltage |
380V/50Hz |
5 |
Input Power |
2x1.1Kw |
6 |
Cutting Width |
120mm |
7 |
Cutting Height |
29mm |
8 |
Cutting Range |
320~1800mm |
9 |
Overall Dimension |
1900x700x1350mm |
10 |
Weight |
about 160kg |
3.Whole Machine |

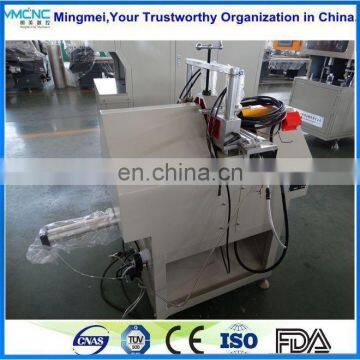

The Machine in the factory |
4.Detailed Photos |
Some parts of the machine |
5.Testing Machine |
Glazing Bead Saw for PVC Profile |
