Automatic Water Slot Milling Machine
SCX02-3-60
1. Feature
1.1 Milling all kinds of water slots and air pressure balance groove
1.2 Full design with high rigidity, processing beautiful water slot, high appearance quality.
1.3 ·Automatic cutter changer on the under head, one time clamp to finish water slots processing.
1.4 · High efficiency , suitable for mass production
1.5 · Special feeling system, need no special maintenance, high milling quality
1.6 Easily adjustment for the. Cutter location to meet different kinds of profiles
1.7 Water slot milling length adjustable within 100mm,wide adaptability
1.8 Adopt linear bearing motion to ensure the processing precision
2.Equipment Feature
2.1 Input Voltage 220V/50Hz
2.2 Input Power 0.38kw x 3
2.3 Air Pressure 0.5~0.8MPa
2.4 Air Consumption 30L/min
2.5 Main-shaft revolution 25000r/min
2.6 Cutter Diameter Φ4Φ5mm
2.7 Slot Depth 30mm
2.8 Slot Length 10~100mm
2.9 Overall Dimension 1200x1200x1800mm
3.0 Weight 200kg
Parameters:
Input Voltage |
220V/50Hz |
Input Power |
0.38kw x 2/3/4 |
Air Pressure |
0.5~0.8MPa |
Air Consumption |
30L/min |
Main-shaft revolution |
25000r/min |
Cutter Diameter |
Φ4Φ5mm |
Slot Depth |
30mm |
Slot Length |
10~100mm |
Overall Dimension |
1200x1200x1800mm |
Weight |
200kg |

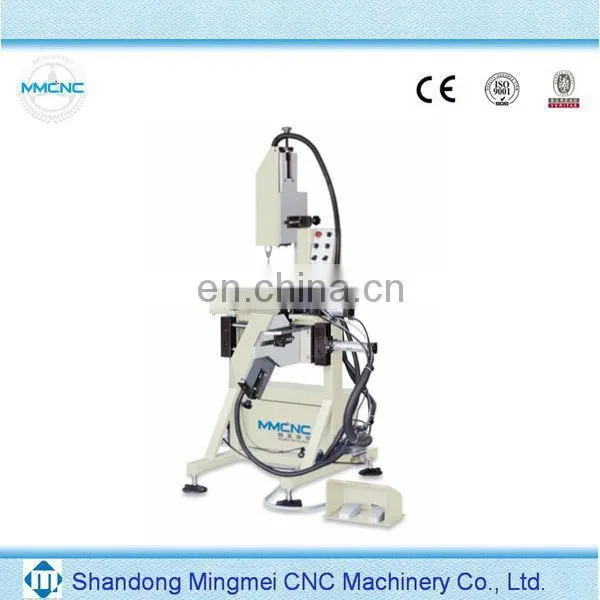

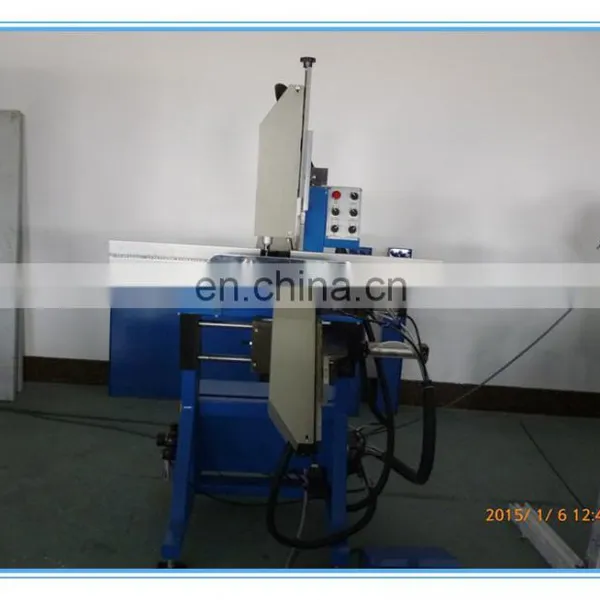

3.Picture of machine
