Any Angle Double-head Cutting Saw CNC for Aluminum Profile
We are the company of trade assurance of Alibaba. You can send our company order on Alibaba website.The Alibaba will Ensure on-time shipment and pre-shipment product quality.
1. Feature
1.1 The machine is the most advanced double-head cutting saw equipment for Aluminum Window & Door.
1.2 The control system adopts the new closed-loop system.
1.3 The servo motor drives the speed reducer to adjust angle in 45°~157.5°.
1.4 Several profile processing dimensions can be input one time and make continuous cutting.
1.5 The imported high precision blade makes the cutting surface more smooth
1.6 The processing dimension can be changed without returning the reference point
1.7 The air proof device under the workable has wonderful crumbs-clearing effect
1.8 The following saw cover keeps it working in the clean environment
1.9 The profile is clamped by two cylinders in every head,and kept the cutting security
2. Technical Parameter
Input Power |
6.5kw |
Power Supply |
380V/50Hz |
Working Pressure |
0.6-0.8 MPa |
Rpm |
2800r/min |
Size of Saw Blade |
φ500xφ30 |
Cutting Angle |
45°-157.5° |
Cutting Length |
760-6000mm |
Cutting Width * Height |
120*230 |
Dimension |
7800*1800*1530 |
Weight |
2500kg or so |
3. Detailed Photos
3.1 Taiwan Delta Touch Screen
3.2 Franch Schneider
3.3 Taiwan Delta AC Servo and power supply
3.4 Servo Motor
3.4 Control Box

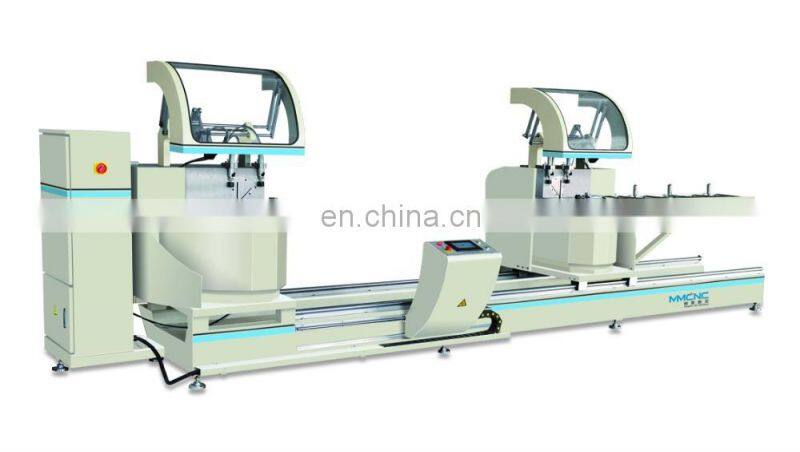

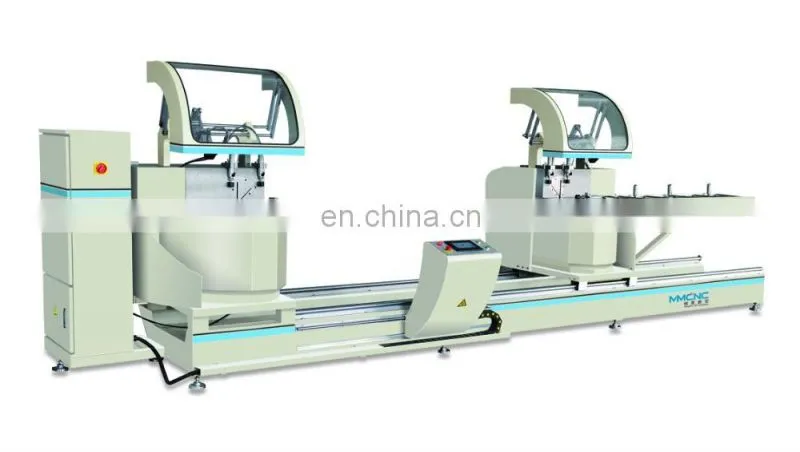

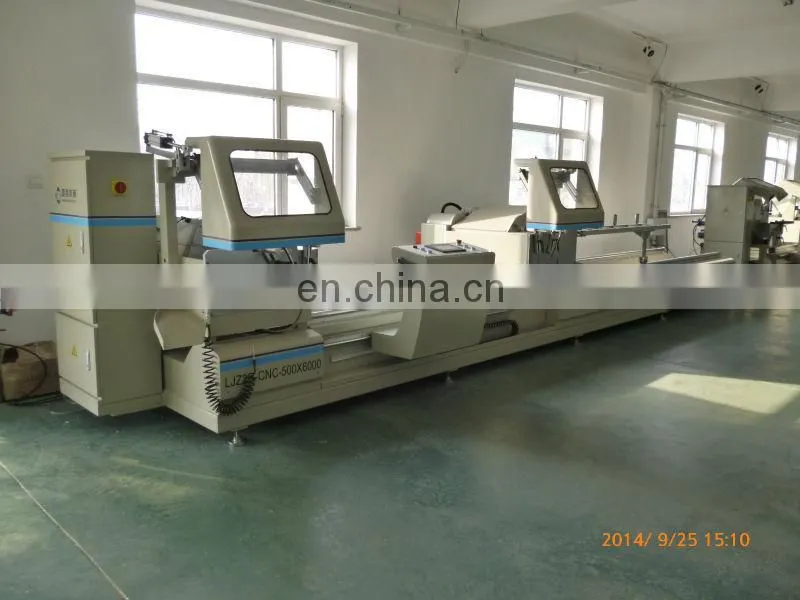

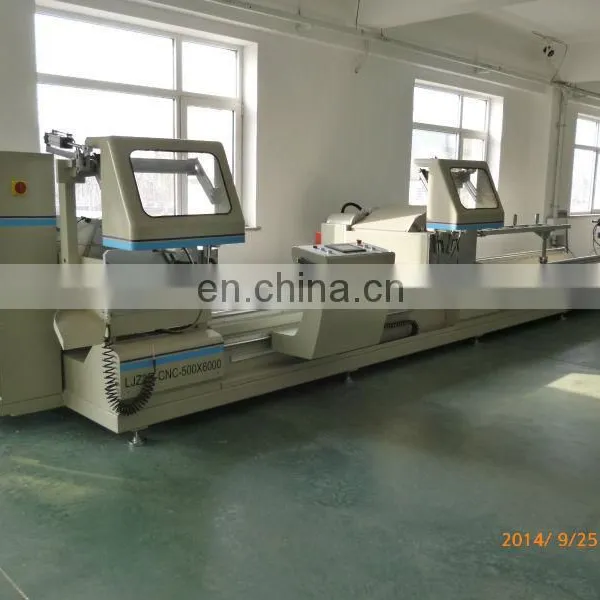

3.5 Overall Machine
