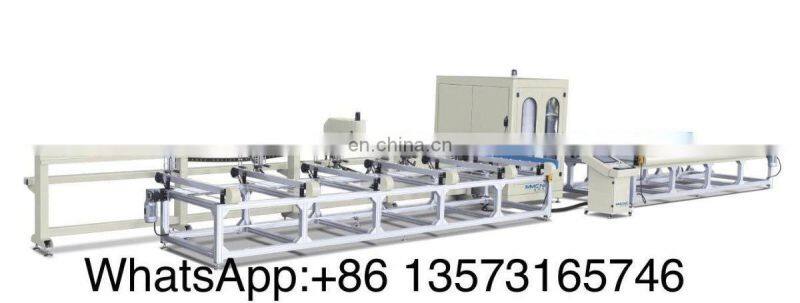

Window Door CNC Aluminum Profile Cutting Center

Aluminium Window Door Profile Cutting Machine/45 degree and 90 degree Cutting Machine for Aluminium Window Making/Window Machine/Aluminum Profile Cutting Center

1.Feature
1.1  One Spindle is 90 °cutting,the other two spindles are 45 °cutting with two saw blades, make the machine simple structure, easy to operate;

Feeding and head feeding adopt high lead ball screw. Japan Yaskawa servo transmission high precision, Accurate positioning,Working smoothly enables the saw blade to feed at constant speed, and effectively prolongs the life of the saw blade.

2.Main Parameter
Cutting Width X Height: 100X100mm
Input Power: 12KW
Main Spindle motor: 3X2.2KW
Saw blade rotating speed: 2800Rpm
Saw blade size: Ø500×Ø30δ=4.4mm z=120
Cutting angle: 90° 45°
Working Power: 380V 50Hz
Overall Dimension: 13000×3000×32600mm
Weight: 3000KGS
Repeated fixed length accuracy: ≤0.1mm
Angle allowance error: ±5′
Flatness tolerance:≤0.10mm
Roughness: Ra12.5Um
Cutting Length: 450-6000mm

3.Component
CNC Control: Taiwan Syntec
Linear guide: Taiwan ABBA
Saw Blade: Japan Kanefusa
Button and other electric parts: France schneider
Linear bearing: South Korea KSL
Ball screw: Taiwan ABBA
Solenoid valve: Taiwan Airtac
Main spindle: Italy Seimec
Servo motor and driver: Japan Yaskawa
Limit sensor: South korea autonics

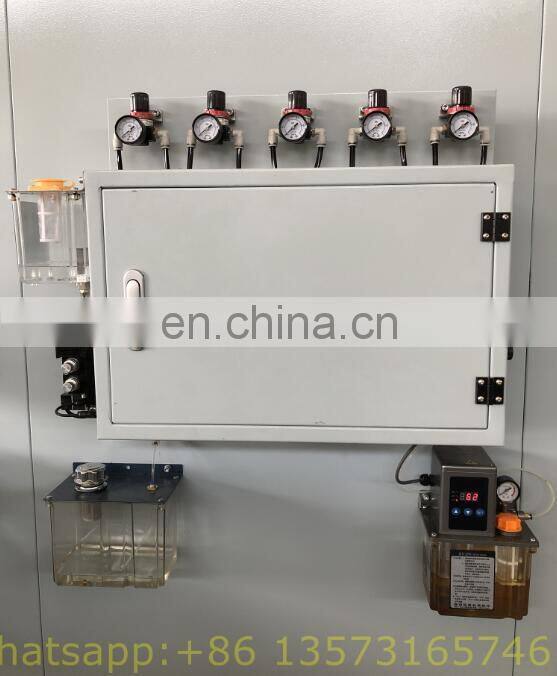

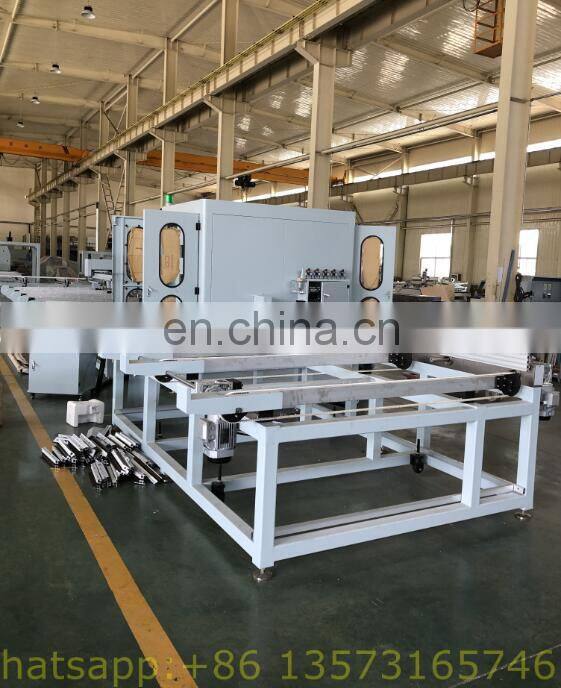

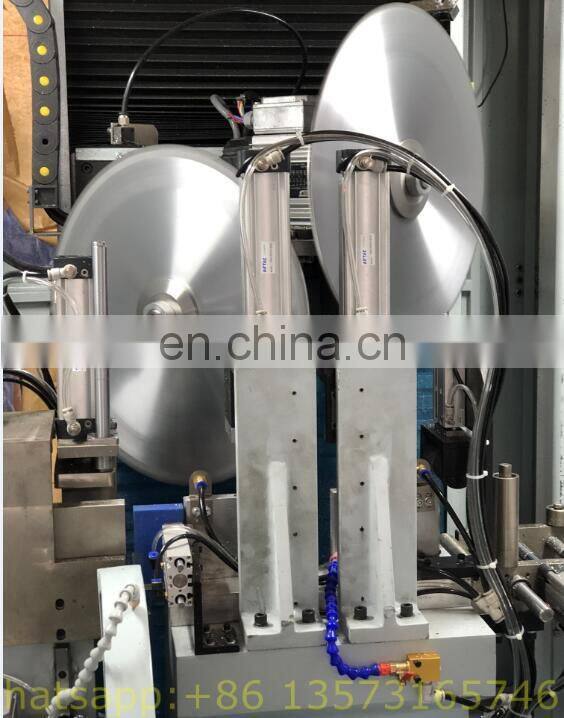

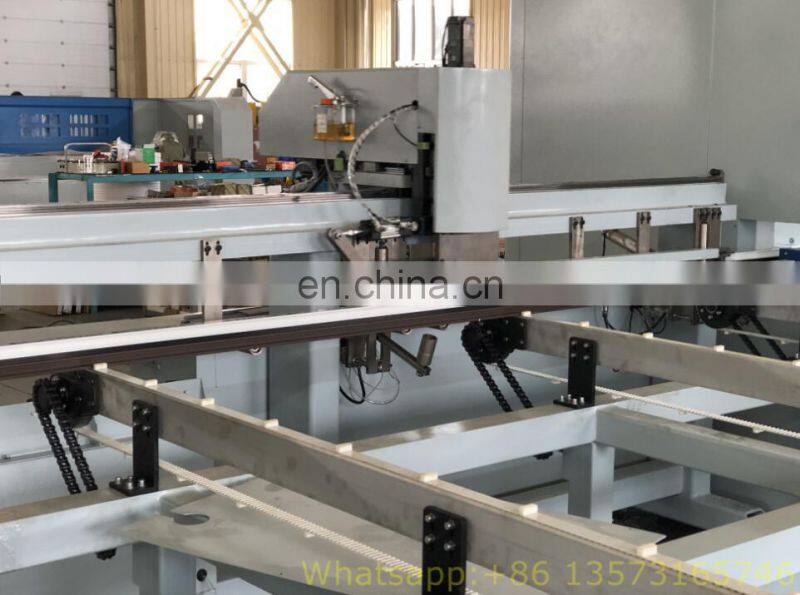

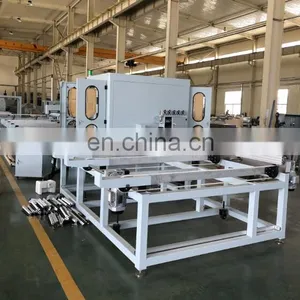

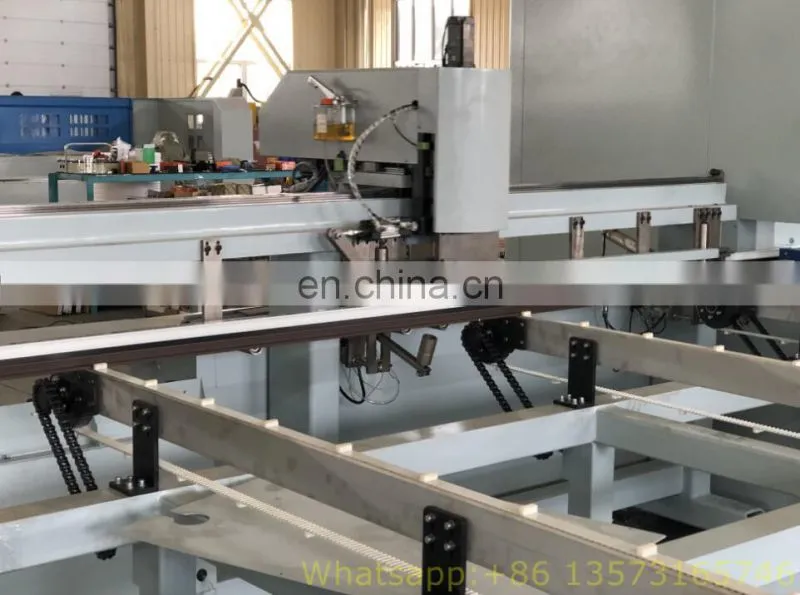

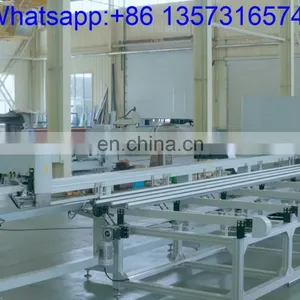

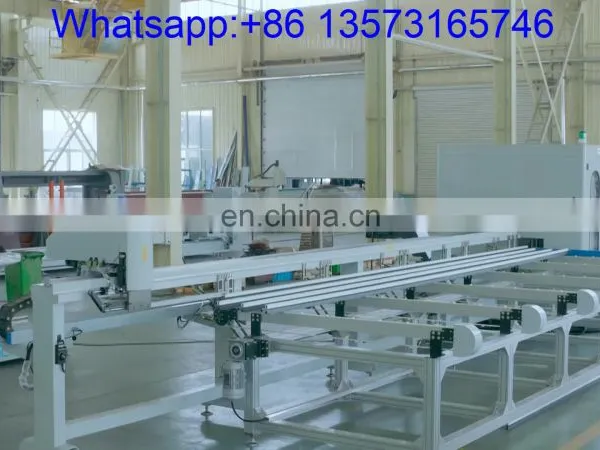

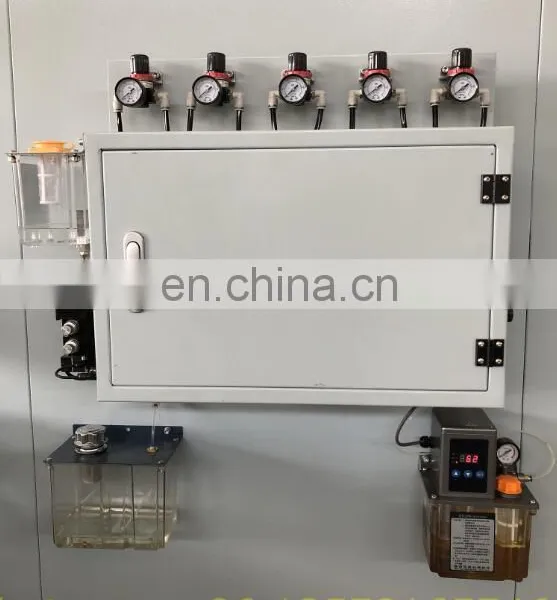

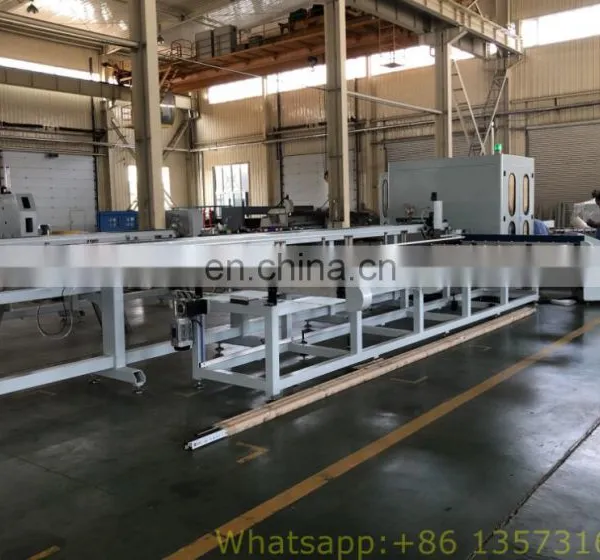

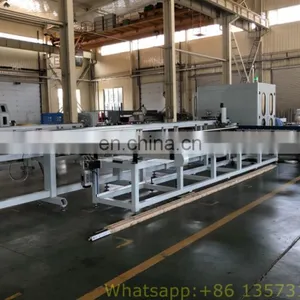

4.Detailed Photos Of Aluminium Profile CNC Cutting Center(Auto Loading&unloading)

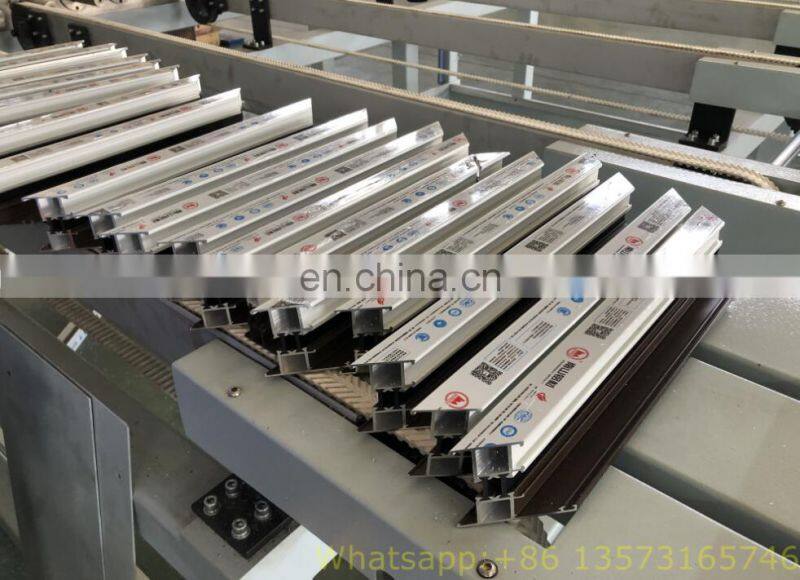

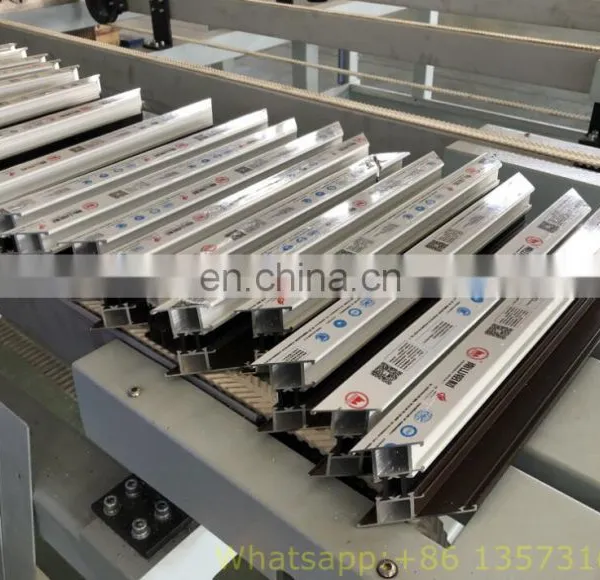

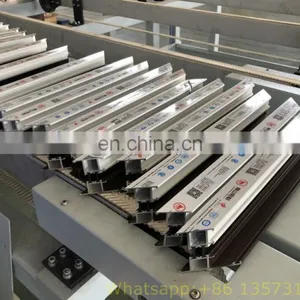

5.Samples OF Cutting Saw Center for cutting 45&90 degree on alu profile)

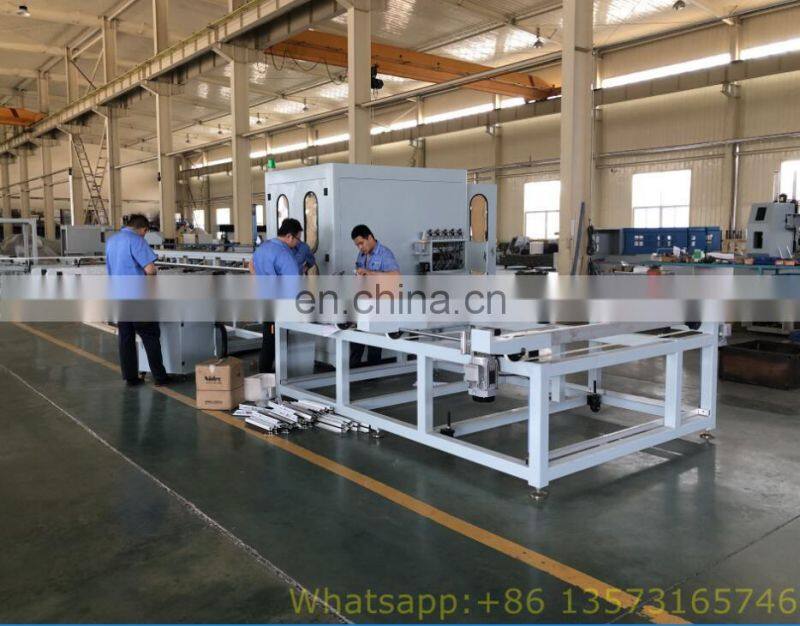

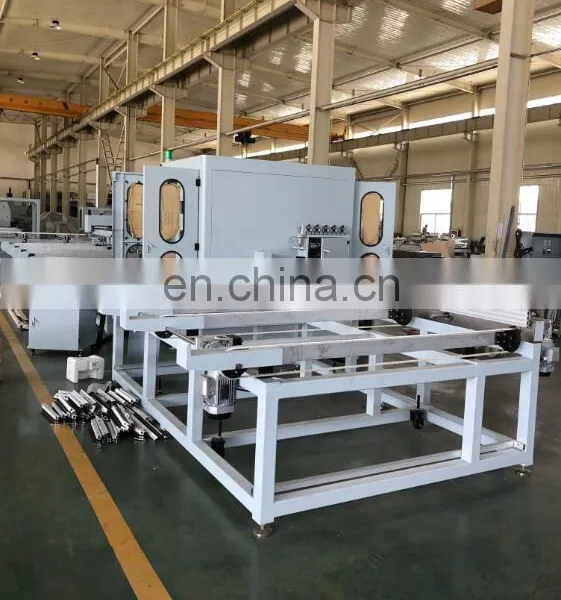

6.Our Factory

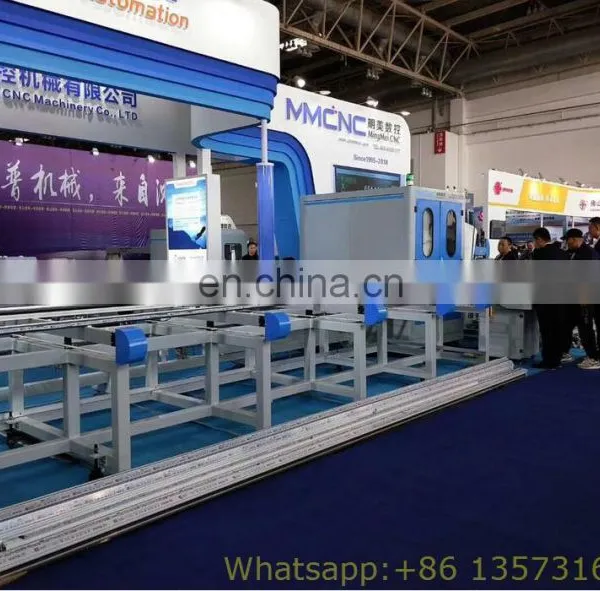

7.MMCNC at Aluminum Window Door Facade Expo

8.Contact Demi freely for further info

MMCNC as Leading Aluminum Window Door Making Machine, Aluminum Curtain Wall Facade Machine, Industrial Aluminum Machine SINCE 1995, chose MMCNC, tomorrow will be better.
