1.Main Features for Small Aluminum profile end-milling machine

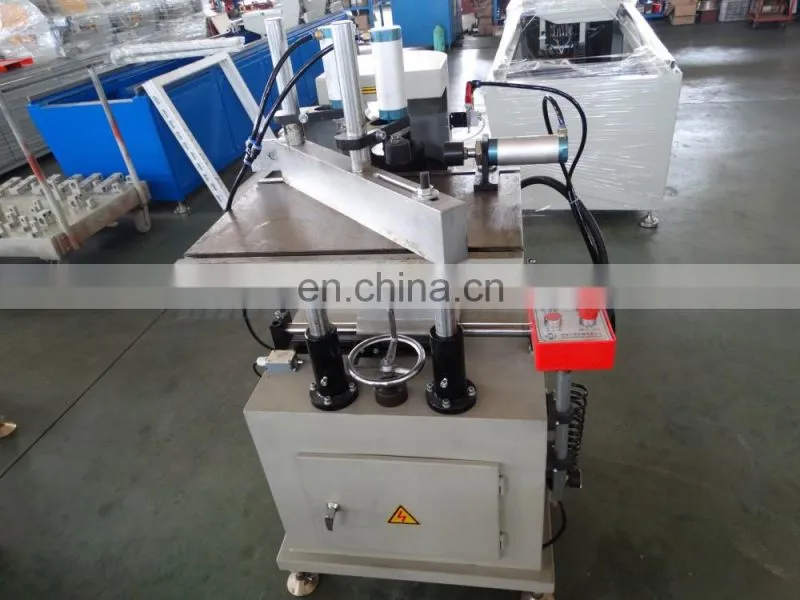

1.1 LXDA-200

1.1.1  Used for processing aluminum profile end, step face and slot etc.

1.1.2. Super precision mani shaft insures accurate and steady processing.

1.1.3. Automatic feed ,small labor intensity .

1.1.4. Convenient tool setting is due to adjustable worktable .

1.1.5. At the same time milling multi -piece profiles.

1.2 LXD-200

1.2.1. Used for processing aluminum profile end, step face and slot etc.

1.2.2. Adjustable processing angle within 35°~90°.

1.2.3. Super precision mani shaft insures accurate and steady processing.

1.2.4. Convenient tool setting is due to adjustable worktable .

1.2.5. The cutter is mounted on high precision spindle,the motor running accurary will not affect the tool working accurary.

1.2.6. Cutter feeding adopts linear bearing motion pair so that the working performance is stable.

1.3 LXDC-300

1.3.1. Used for processing various profile surface and step surface etc.

1.3.2. Can fix cutter(diameter=300mm)

1.3.3. The motor power is 2.2Kw

1.3.4. This machine is a new design of our company,and can be seen as a combination of the strong points of other related machines.It has the features of compact structure,large processing range,easy operation and high efficiency.

2.Specifications for Aluminum profile end-milling machine

Model

 LXDA-200

LXD-200

LXDC-300

Cutting motor power

2.2Kw

2.2Kw

4x2.2Kw

Power supply

380v/50hz

380v/50hz

380v/50hz

Air-pressure

0.6-0.8MPa

0.6-0.8MPa

0.5-0.8MPa

Motor rotary speed

2800r/min

2800r/min

2840r/min

Saw blade specification

(Φ200~ Φ110)xΦ32

(Φ200~ Φ110)x Φ32

Φ110~ Φ300

Feeding space of workable

0~320mm

0~320mm

0~320mm

Max open tenon(HxW)

70x45mm

70x45mm

/

Location turning angle

/

35°~90°

16°~65°

Milling cutter width

/

/

90mm

Max clamping section

 /

 /

300x300

Air consumption

30L/min

Contour dimension

850x740x1500mm

850x740x1500mm

1600x860x1400mm

Weight

about 227kg

about 212kg

about 250kg

3.Detailed Images for your reference

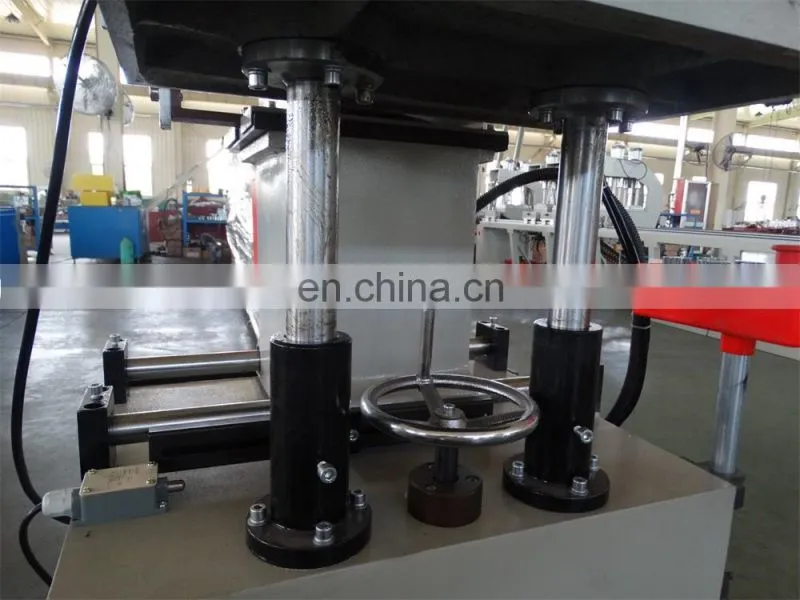

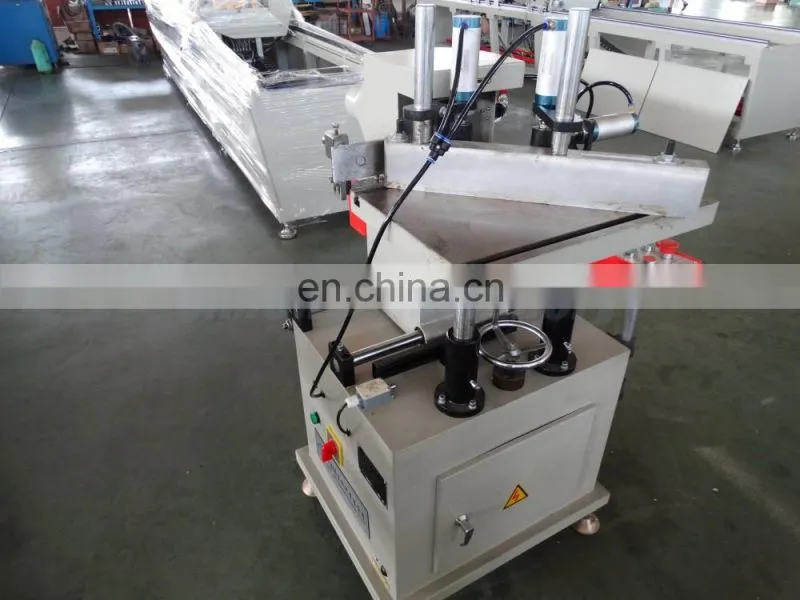

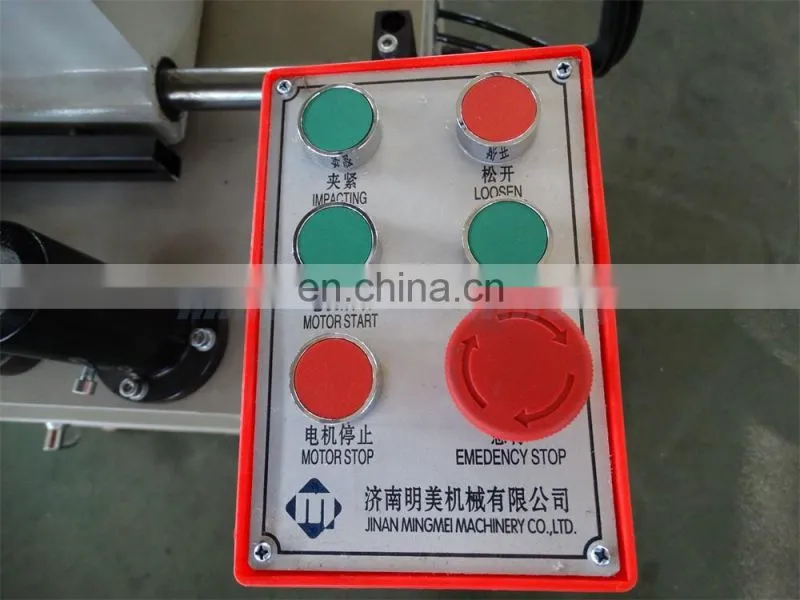

3.1 Details

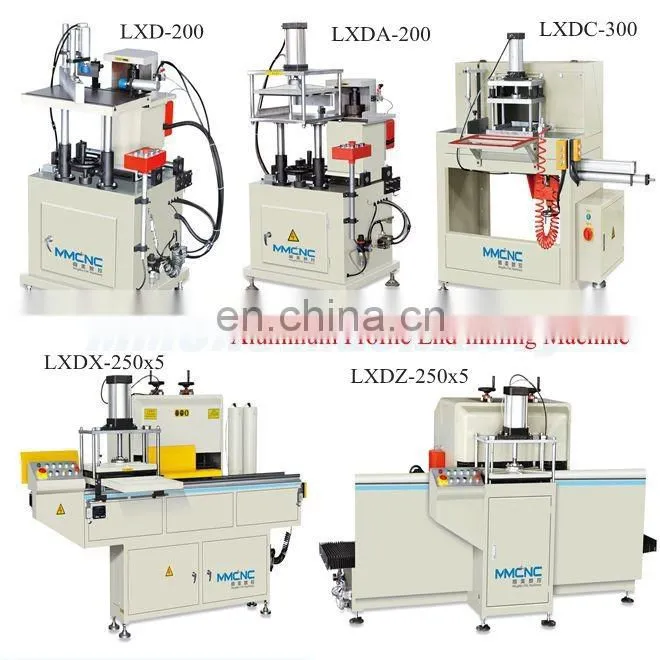

3.2 Material Samples for your reference3.3 Our End-milling Machine Series

4.Certifications of Mingmei CNC Machinery

We Hope Fully Become Your Trustworthy Organization In China.Do Not Hesitate To Contact With Me.

What we can do for customers?

-Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.

* Design drawing of the factory workshop
* View our Factory.

-After-Sales Service

* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail  solving the relative questions in time.

* Engineers available to service machinery overseas.

*We provide the consumable parts at agent price when you need replacement

      With us your money in safe,your business in safe!

How about the Packing&Delivery?

to make sure customer will receive the machines they ordered Intact.

Shipping:Shipping by 20GP,40GP,40HQ Container...

According to Customers’ location and the vehicle size , we will provide professional packaging can save sea freight for cutomers.

Shandong Mingmei CNC Machinery Co., Ltd

MMCNC was found in 1995,which is a modern private enterprise specialized in technology

development,machinery manufacture and product sales.Company cover an area of 70000

square meters and 200 staffs.

MMCNC machine include Processing machine for making aluminum PVC window and door as well

as curtain wall, such as---

Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got

CE,ECM,EEC authorization .and it has won good market reputation.

Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!

What's FAQ?

1. Q: Are you a factory or trading company?

A: We are a factory.We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall. Welcome to visit our web:

2. Q: which is the nearest international airport and domestic airport ? Can I visit there?

A: Yes , you can. Jinan airport is the nearest domestic air port in Shandong province.

3. Q: How does your factory do regarding quality control?          A:We have strict control in testing of raw material, production process and final process.Only qualified

products can be sent out.And we have passed ISO,CE certificate.

4.Q:What you can do if my machines have problems?

A: a.We can send you free components to you if your machines are in guarantee time.

    b.We can send our engineers to repair your machines

5. Q: If OEM available?

A: Yes, as we usually do.

6.When can we arrange shippment?

A:We usually arrange shippment in 15 days after getting deopsit, but customized machines should be

more than 25 days.

7.What's your payment methods?

A: L/C, 30% deposit by T/T,70% spare payment L/C.
     T/T, 30% deposit by T/T,70% spare payment before shipment.
     Western Union
