Product Details
| Brand Name | Mingmei | Model Number | DZ-600x1000/GXSK-450 |
Plastic Film and Wooden Case for Cutting saw for Window Aluminium Making Machines CNC Automatic Corner Connector Cutting Saw.
Product Description

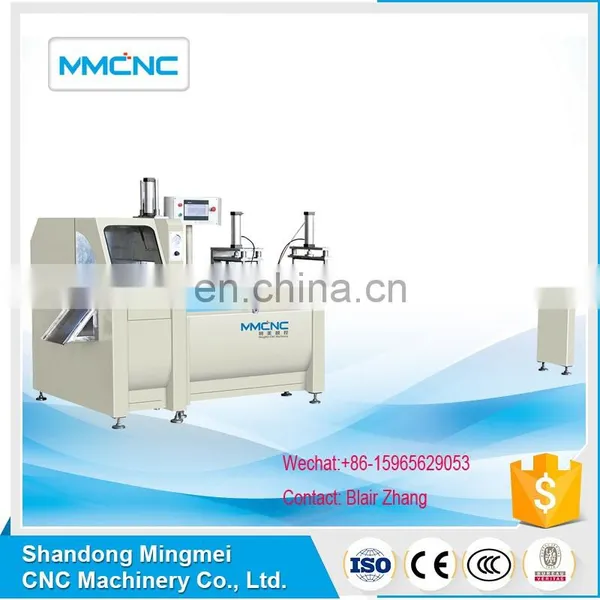

Window Aluminium Making Machines CNC Automatic Corner Connector Cutting Saw
1. Features for Corner Connector Automatic Cutting Saw
It is our new developed machine, which is welcomed from our clients. Forward and backward profile butt joint without tailling, when the profile was cutting. In addition, the thickness of the blade is 2.6mm(old type: 4.4mm), so it saves the profile and improve the work efficiency.
♣ Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high machining precision,high material utilization.
♣ The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw. Stable operation,high precision.
♣ With the function of automatic counting.
♣ With the device of spraying, which could improve the processing precision and prolong the service life of saw blade.
♣ Forward and backward profile butt joint without tailing, when the profile was cutting.(Patent No.:ZL 2015 20423765.6)

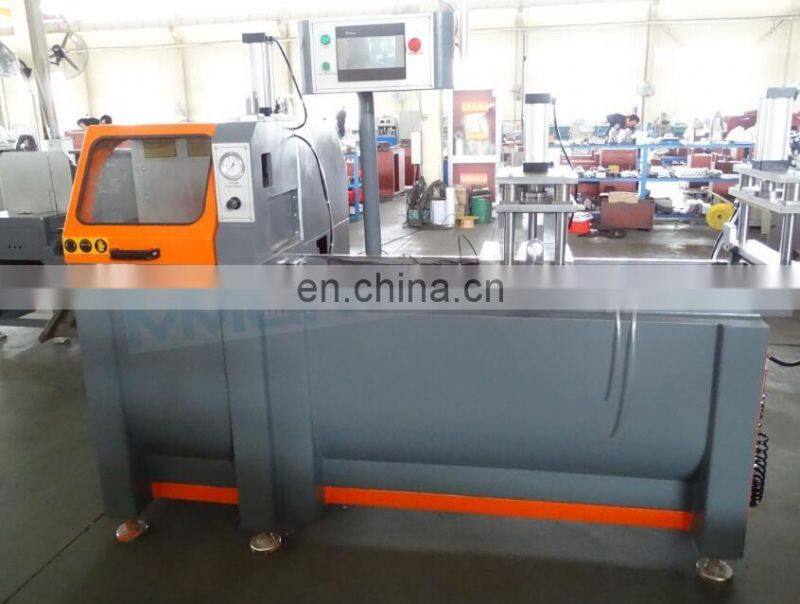

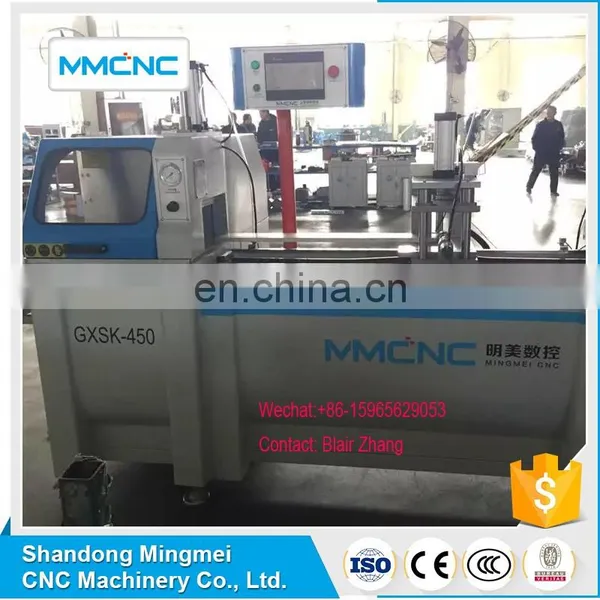

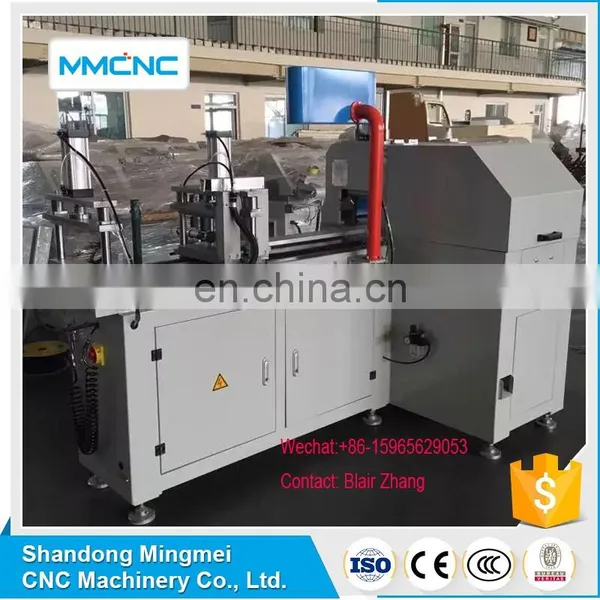

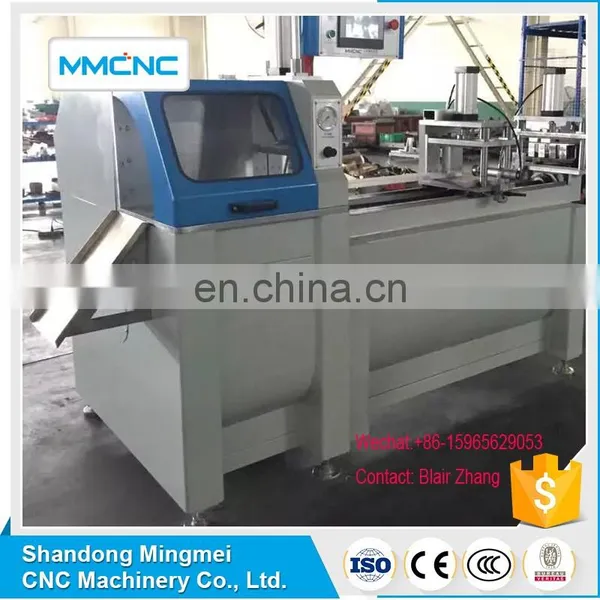

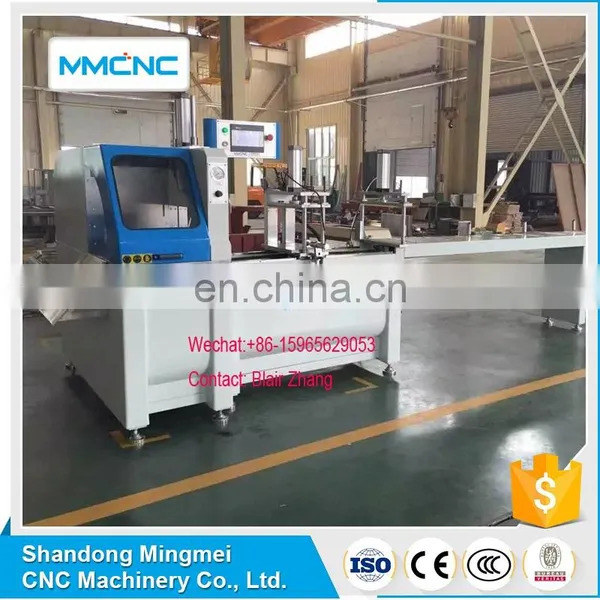

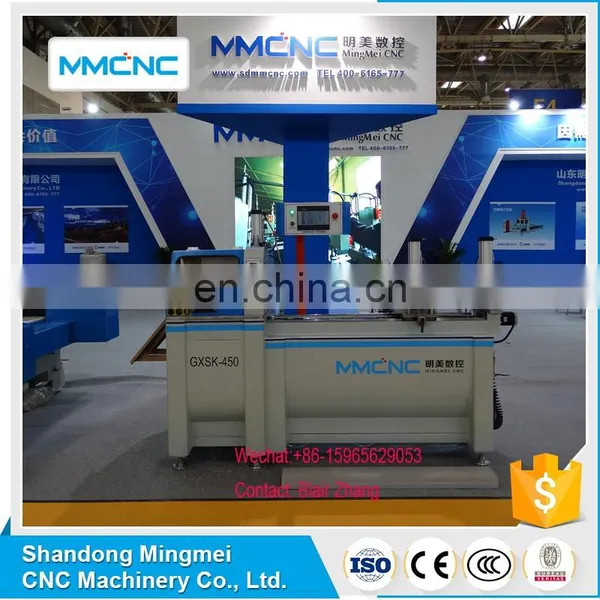

Real photo of High Efficient Corner Connector Automatic Cutting Saw

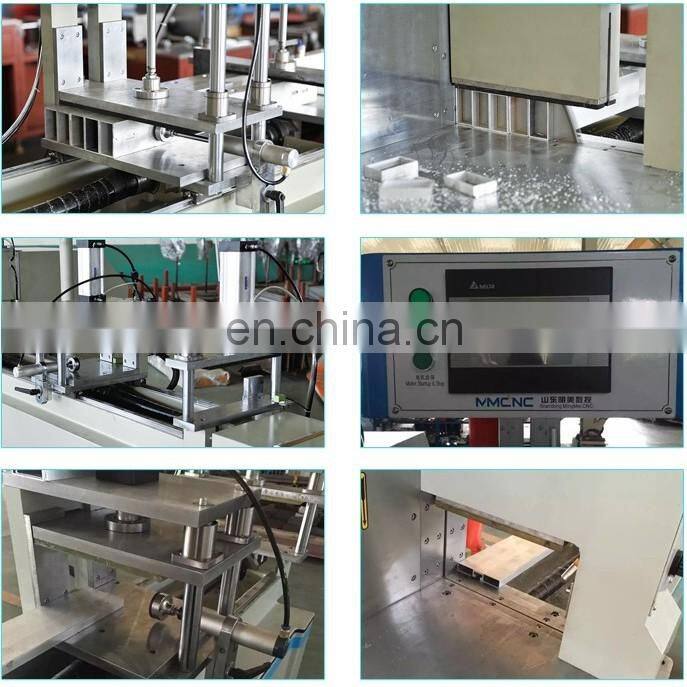

2. Details parts of Aluminum Corner Connector Automatic Cutting Saw

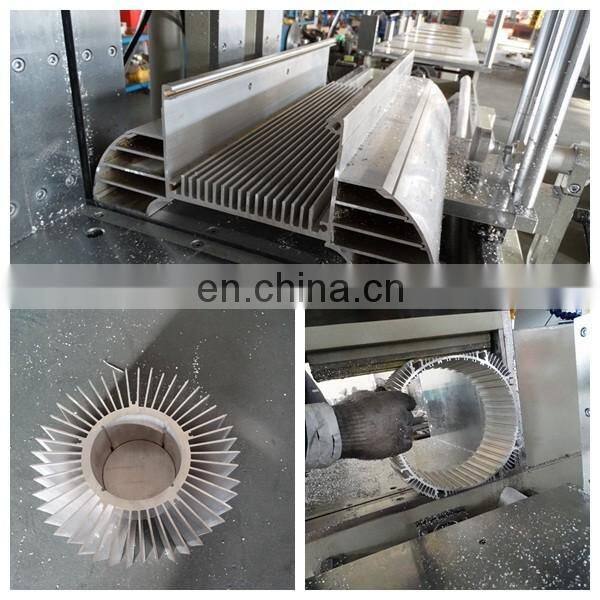

3.Some Cutting Samples showing
4.Packing & Shipping of Aluminiun PVC Window Door Equipments.

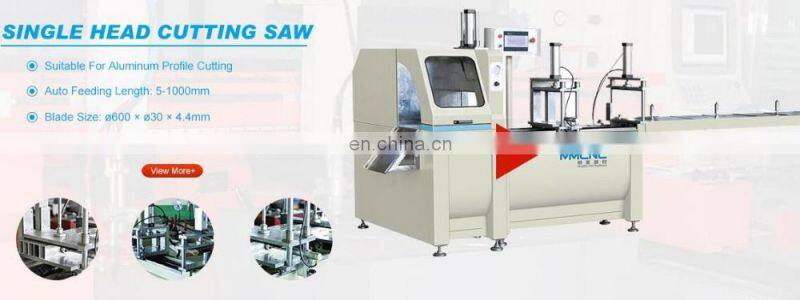

5.SPECIFICATIONS OF ALUMINUM SINGLE HEAD MACHINE
Model | GXSK-450 | DZ600x1000 |
Input power | 3.0Kw(Main spindle motor) | 3.0Kw(Main spindle motor) |
Power supply | 380v/50hz | 380v/50hz |
Air-pressure | 0.5-0.8MPa | 0.5-0.8MPa |
Motor rotary speed | 2800r/min | 2800r/min |
Saw Blade specification | Φ500xΦ30 mmx2.6 | Φ600xΦ30 mmx4.4 |
Saw blade feeding speed | 0-3m/min | 0-3m/min |
Cutting length | 5mm-1000mm | 5mm-1000mm |
The length of auto-feeding | 5-1000mm | 5-1000mm |
Overall dimension | 2500x1200x1650mm (Converyor:5400mm) | 2500x1700x1890mm (Converyor:5400mm) |
Weight | 780kg | 780kg |
View more>
Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.
SHANDONG MINGMEI CNC selected each part carefully. What's important is that we have our own sheet-metal workshop and machanical department. We are strive to quality first when machine production.
MINGMEI engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.So we will provide the best machine for you.
Welcome to visit our factory ! Abroad customers came to our factory for training and guidance.
MMCNC on the Exhibition:Shanghai,Beijing,Guangzhou,Korea...
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement.
-Are you manufacturer or trade company?
*We are factory.Factory starts from 1995.For more company introduction click here>
-How I can get suitable Machine?
Please give me your followed information:
*First: Please tell us what's your max working area (L*W*H),
*Second: Please send us your profile drawing.Its very important.
Those two answers will help us choice suitable CNC machine for you.
If you are new farmer, no idea, contact us, our service department will guide you.
-What's your payment methods?
*L/C, 30% deposit by T/T,70% spare payment L/C.
*T/T, 30% deposit by T/T,70% spare payment before shipment.
* Western Union,Trade Assurance...
