Punching Machine for Aluminum win-door
LYA6-50
Used for installation of aluminum alloy windows and doors and the punching processing of aluminum
1. Description
1.1 For different kinds of holes punching
1.2 Rotating work table can be installed with six sets of dies
1.3 Single position die can be designed and installed easily
1.4 Hydraulic drive,great power for special kinds of holes
1.5 Openside design,easy operation
2. Parameter
2.1 | Input power | 1.5 kw |
2.2 | Power supply | 380v/50Hz |
2.3 | Rated oil pump pressure | 15MPa |
2.4 | Capability of oil box | 20L |
2.5 | Press nominal pressure | 50KN |
2.6 | Closing height | 185mm |
2.7 | Punching travel | 30mm |
2.8 | Die size | 250*200*215mm |
2.9 | Overall dimension | 1000*1200*1700mm |
2.10 | Weight | 385kg |
Parameter
2.1 Input power 1.5 kw
2.2 Power supply 380v/50Hz
2.3 Rated oil pump pressure 15MPa
2.4 Capability of oil box 20L
2.5 Press nominal pressure 50KN
2.6 Closing height 185mm
2.7 Punching travel 30mm
2.8 Die size 250*200*215mm
2.9 Overall dimension 1000*1200*1700mm
3.0 Weight 385kg

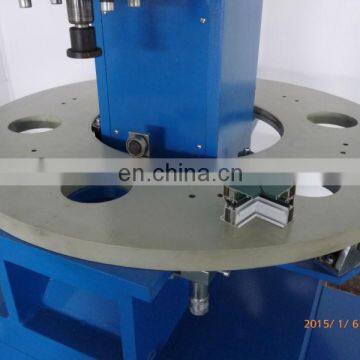

PIcture of machine
You could decide the color of the machine
The delivery pictures
