copy-routing Drilling Machine
LX3F-290X100
Used for copy-routing processing various kinds of holes,groovesand water-solts on aluminum windows and doors.
1. Feature
1.1 Used for copy-routing processing various kinds of holes,groovesand water-slots on aluminum windows and doors
1.2· By copying template and auxiliary positioning two copying method
1.3· Using a foot switch control the pressing cylinder, safe and reliable
1.4· It has features of compact structure and small volume
2. Technical Parameter
2.1 Operation Air Pressure :0.6~0.8MPa
2.2 Input Voltage 380V/50Hz
2.3 Diameter of the three-hole drilling head Φ12
2.4 Centers distance of the three-hole drilling head 21.5 x 21.5mm
2.5 Input power 2.25kw
2.6 Cutter Diameter Φ5Φ8mm
2.7 Copy-routing range 290 x 100mm
2.8 Overall Dimension 1000 x 1130 x 1600mm
2.9 Weight about 220kg
Parameters:
Operation Air Pressure | 0.6~0.8MPa |
Input Voltage | 380V/50Hz |
Diameter of the three-hole drilling head | Φ12 |
Centers distance of the three-hole drilling head | 21.5 x 21.5mm |
Input power | 2.25kw |
Cutter Diameter | Φ5Φ8mm |
Copy-routing range | 290 x 100mm |
Overall Dimension | 1000 x 1130 x 1600mm |
Weight about | 220kg |

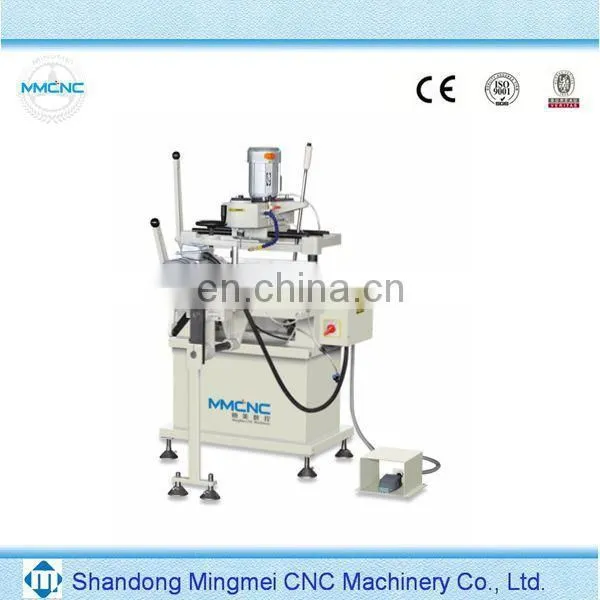

Picture of Machine

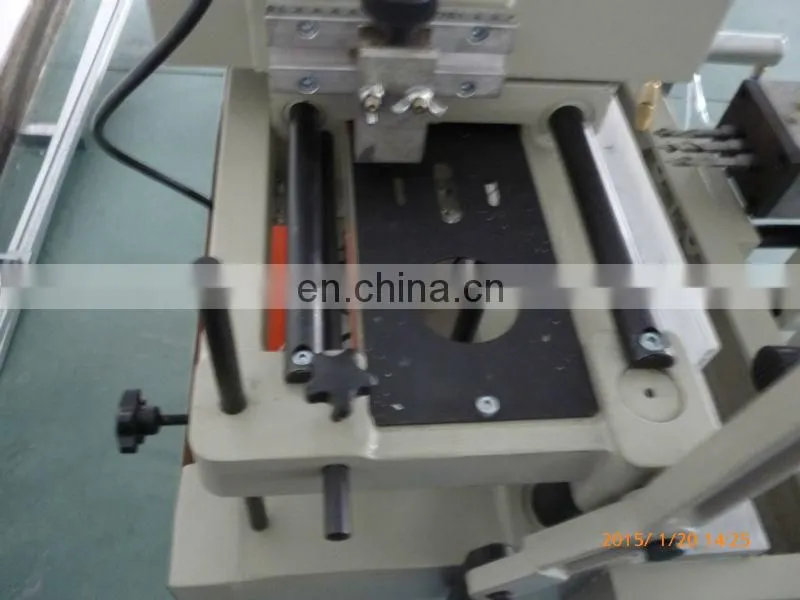

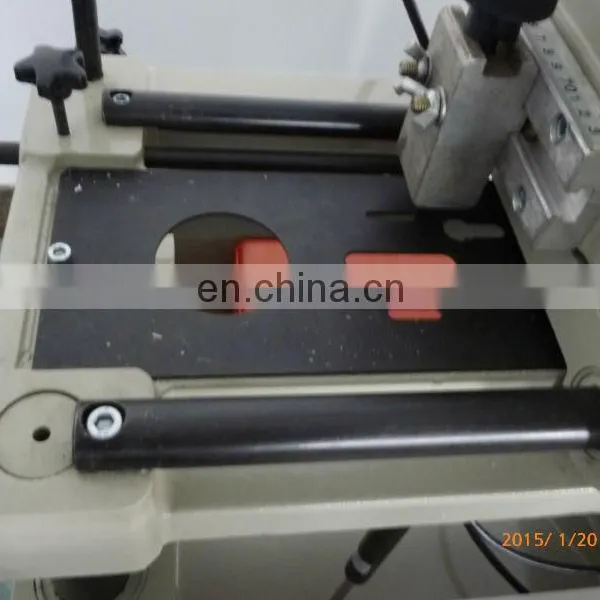

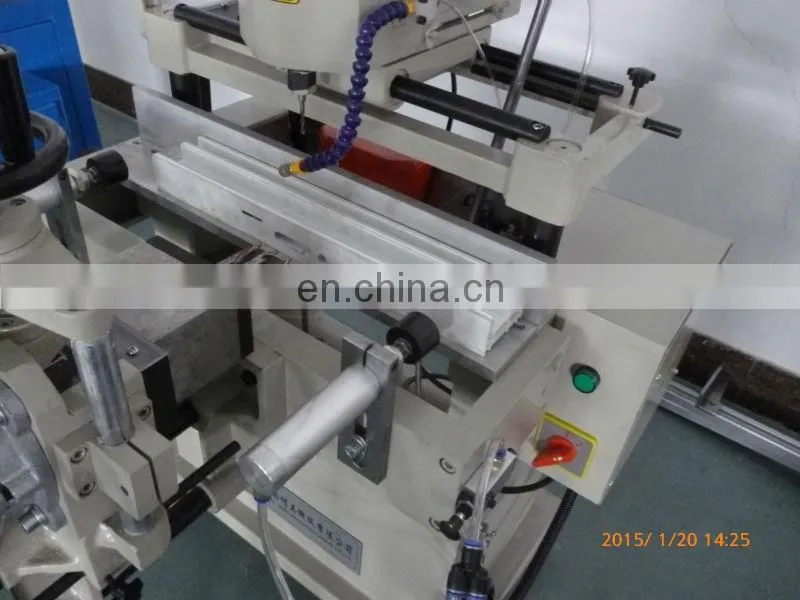

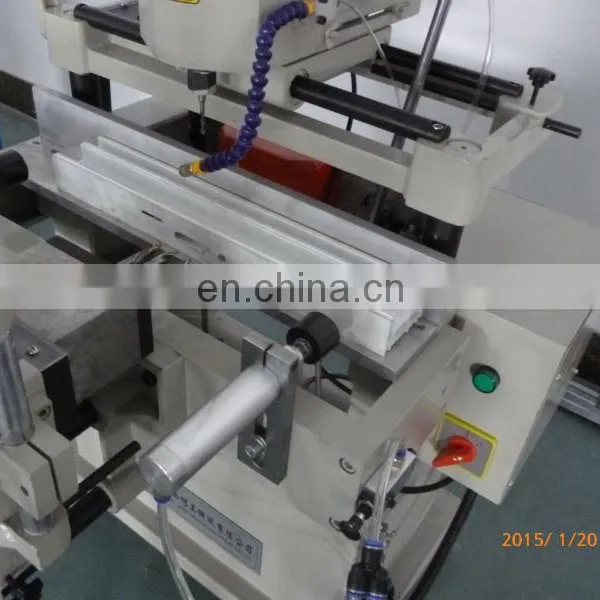

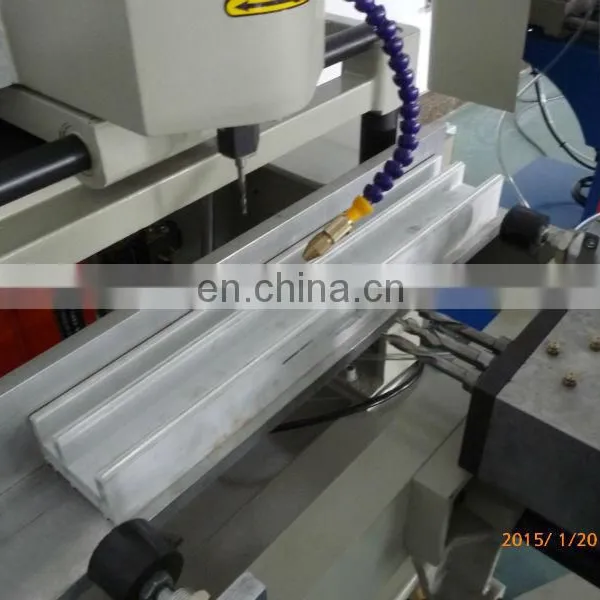

Detailed Picture
