Sinon CNC Machine Co., Ltd.: 5Yrs; Main products: Door and window equipment, , ,

Home > Products > Aluminum Window-door Machine > LMB-1290 corner combining machine for aluminum window

LMB-1290 corner combining machine for aluminum window

FOB Price

US$ 1,800 - 6,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	maxicut		Place of Origin	Shandong, China
Model Number	LMB-120		After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

iron frame ,plywood case,it depends on customer

Product Description

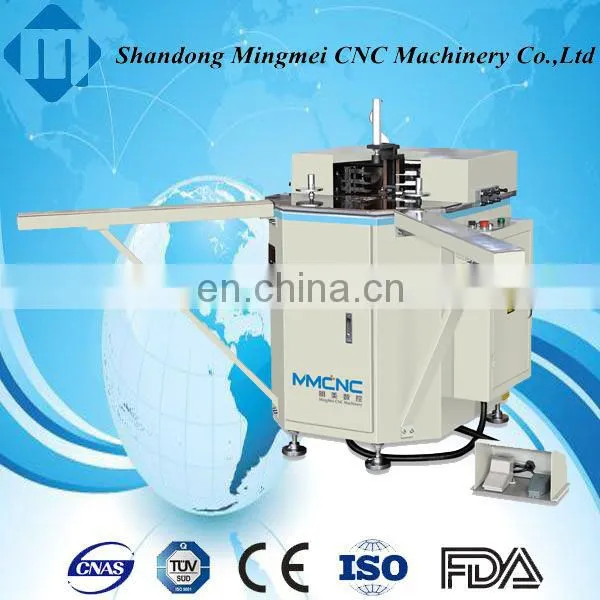

Corner Combining Machine

LMB-120

Used for corner punching combination of aluminum window & door,one corners connecting at one time is available

1.Equipment Feature

1.1 ·Hydraulic system driving, ensure a stable working

1.2 ·Synchronous feeding of the level(left ang right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently

1.3 ·Convenient operation and less error in processing

1.4 ·Distance of tool knife adjustable,as the screw thread connection,easy working for tools.

2.Technical Parameter

2.1. Voltage 380V/50Hz

2.2 Rating power 1.5kw

2.3 Rated pressure 15MPa

2.4 Air Consumption pressure 0.6~0.8MPa

2.5 General pressure of corner combining 48KN

2.6 Air consumption 3L/MIN

2.7 Capability of oil box 20L

2.8 Corner crimping casing movement journey 0~85mm

2.9 Profile processing width 90mm
2.10 The adjustable range of the main location block 54mm

2.11 Contour dimension 1000 x 1200 x 1200mm

2.12 Weight about 340kg

3.Parameter

Voltage	380V/50Hz
Rating power	1.5kw
Rated pressure	15MPa
Air Consumption pressure	0.6~0.8MPa
General pressure of corner combining	0~85mm
Profile processing width	90mm
The adjustable range of the main location block	54mm
Contour dimension	1000 x 1200 x 1200mm
Weight about	340kg

4.Picture of Machine

Guanzhou Fair

Beijing Fair

Our Services

After sales service:

1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.

2. Our engineer could support you technology to your contry if necessary.

3. Our enginner could service on weekend even on vacation.

4. Our engineer could train you on at our factory for free.

5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.

Warranty :

#we have sincere raw material suppliers, all of our raw material are original, not copy.

# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.

# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system

FAQ

Questions and answer:

♥Q1.how to get the most suitable machine and best price

please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

♥Q2: Do you have the manual of machine.

Yes,we have

♥Q3.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

♥Q4.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.

♥Q5.How about your guarantee period?

one year and during the time,if you have any questions ,we will solve it for free.

how to order

Company Profile

Sinon CNC Machine Co., Ltd.

Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
