Home > Products > Aluminum Window-door Machine > Mingmei Aluminum Window Frabrication /equipment Door Frame Forming Machine
Mingmei Aluminum Window Frabrication /equipment Door Frame Forming Machine
- qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | Shandong Mingmei | Model Number | LJZ2-450 X 3700 |
iron frame,plywood case,it depends on customer
Product Description

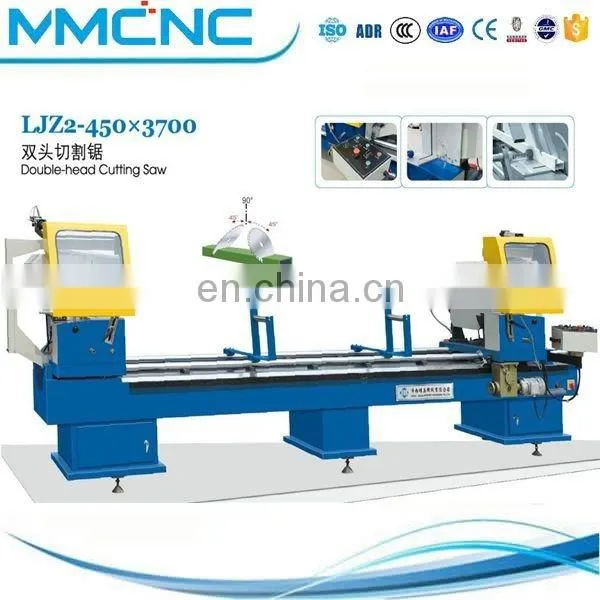

Double-head Cutting saw for aluminum & PVC Profile
LJZ2-450 X 3700
1. Feature
1.1 The machine is used for cutting of aluminum profile
1.2 Imported carbides blade is of accurate processing and high endurance
1.3 The two heads can work alone,can also work at the same time
1.4 To cut out a section of desired length and two end angles
1.5 Right head adopts motor drive

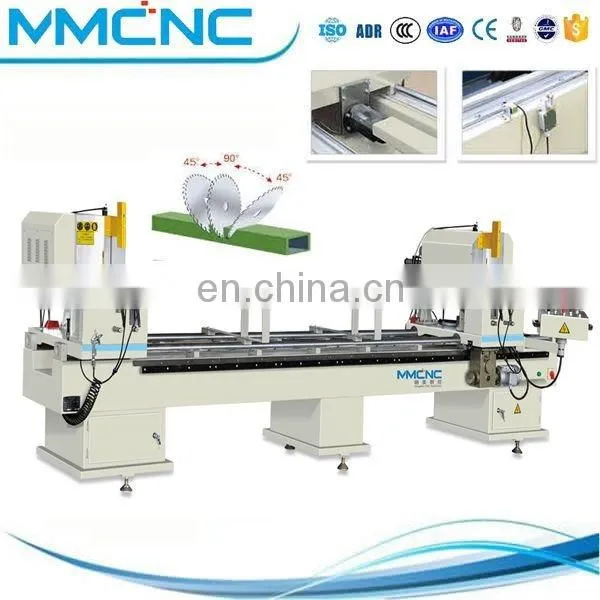

1.6 Two saw head can be manually switching angle,realize the -45 degrees,90 degrees,45 degrees angle cutting profile.
2. Technical Parameter
2.1 Input power: 3.55kw
2.2 Power supply: 380V/5Hz
2.3 Air pressure: 0.5~0.8MPa
2.4 Motor rotary speed: 2800r/min
2.5 Saw blade specification: φ450xφ30
2.6 Cutting angle: 45°~90°~45°
2.7 Cutting length: 680~3700mm
2.8 Cutting width x height: 120 x 160mm
2.9 Overall dimension: 4600 x 1300 x 1550mm
3.0 Weight about: 770kg
Parameters:
Input Power | 3.55kw |
Power Supply | 380V/50Hz |
Working Pressure | 0.5-0.8MPa |
Rpm | 2800r/min |
Size of Saw Blade | φ450xφ30 |
Cutting Angle | -45°-90°-45° |
Cutting Range | 680-3700mm |
Cutting Width * Height | 120*160mm |
Dimension | 4600*1300*1550 |
Weight | 770kg or so |

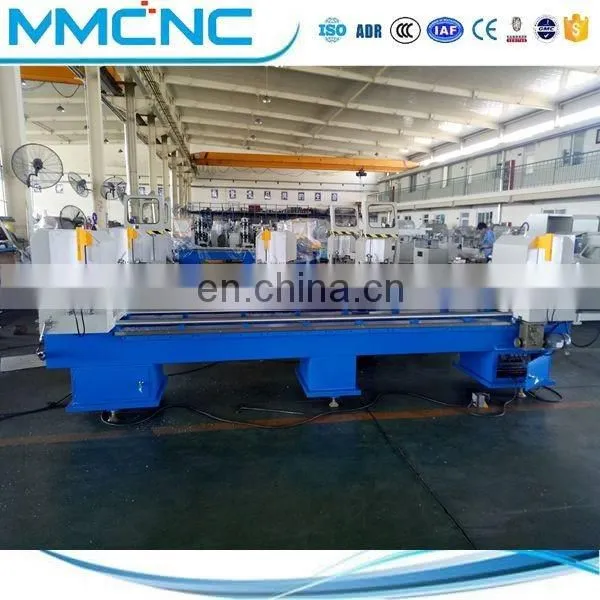

3.Pictures

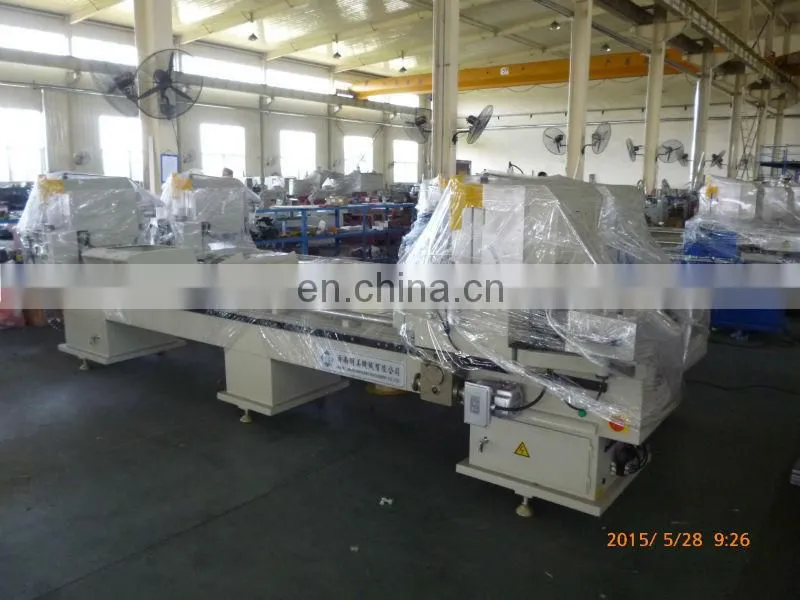

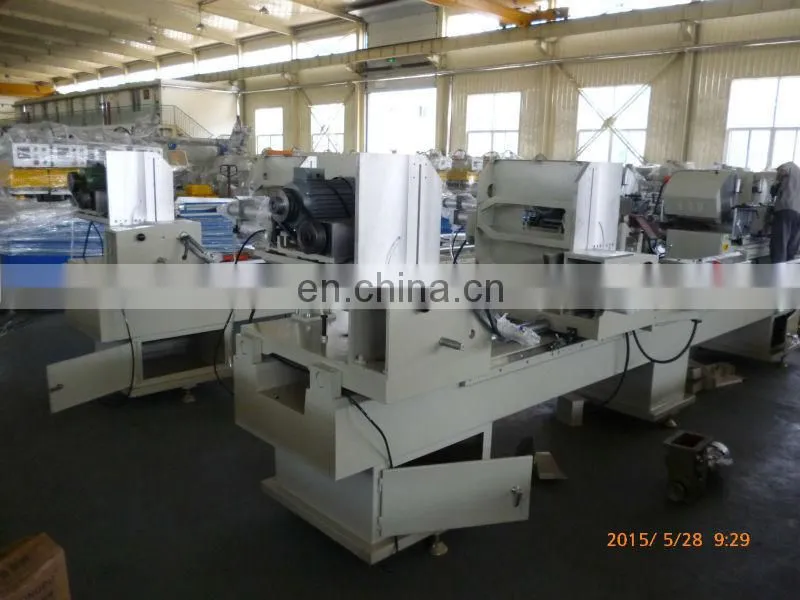

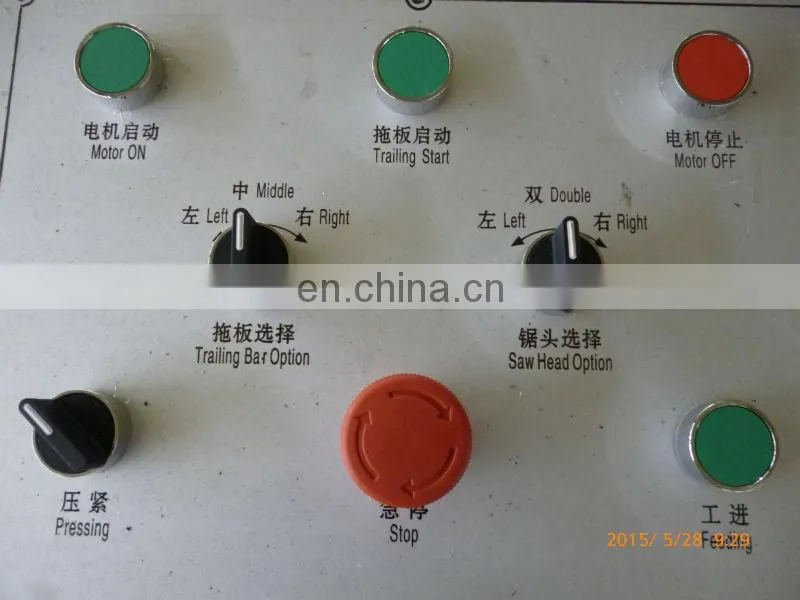

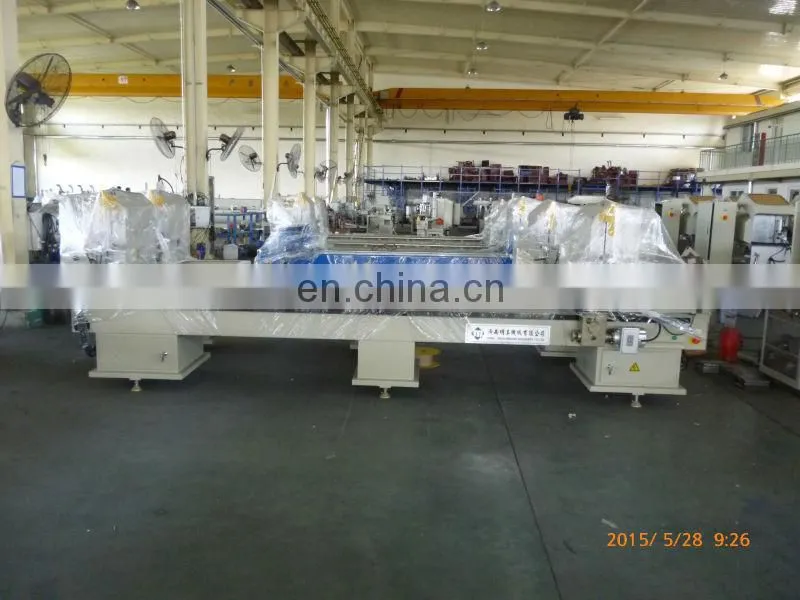

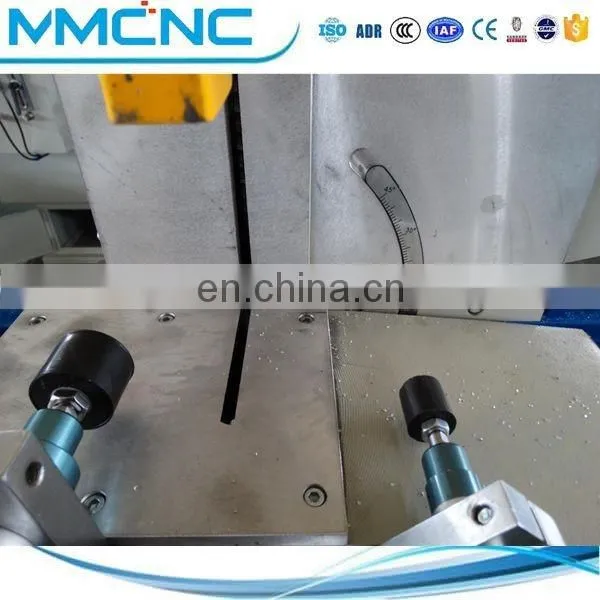

4.Detailed Picture


Selection of Mingmei,tomorrow will be better
Our certificate
Our Factory

After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system

Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
