Industrial Aluminum CNC Cutting Saw
It is mainly used for processing of extra-wide aluminum profile,also can be used ti processing aluminum profile vertical end-face meterial-discharging.Adopt servo motor to drive reducer,implement saw blade rotationg positioning at any angle between 45°and 90°.
1.Equipment Features |
For our Industrial Aluminum cutting saw |
Model SKZXR-600X5300
This machine is used for Industrial Aluminum Profile
1.The machien is the most advanced double head cutting sawequipment for Aluminum windon and door making.
2.The control system adopt the new closed-loop system.
3.The servo motor drives the speed reducer to adjust angle in 45°~157.5°.
4.Several profile processing dimensions can be input one time and make continuous cutting.
5.The imported high precesion blade makes the utting surface more smooth.
6.The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
7.The airproof device under the worktable has wondeful crumbs-clearing effect.
8.The following saw cover keeps it working in the clean environment.
9.The profile is clamped by two cylinders in every head, and kept the cutting security.
2.Technical Parameter |
For Industrial Cutting Saw |
1 |
Power supply |
3 phase four wire 380V 50Hz |
2 |
Cutting head motor Power |
3x2.2kw |
3 |
Rotate speed |
2800r/min |
4 |
Saw blade swing angle servo motor power |
0.9x2kw |
5 |
Cutting head horizontal move servo motor power |
1.5kw |
6 |
Cutting head turn angle motor power |
0.18x2kw |
7 |
Working air pressure |
0.5~0.8Mpa |
8 |
Saw max cutting length |
5300mm |
9 |
Saw max cutting width x height |
90°500x180mm |
10 |
Saw mac cutting height |
90° 210mm |
11 |
Saw cutting angle blade |
45°~90° arbitrary angle |
12 |
Cutting head |
45°~90° arbitrary angle |
13 |
Cutting feed speed |
stepless speed regulation 0~3000mm/min |
14 |
Blade specification |
φ600x4.4xφ30mm Z=120 |
15 |
Overall size |
7500x2450x1700mm |
16 |
Weight about |
5000kgs |

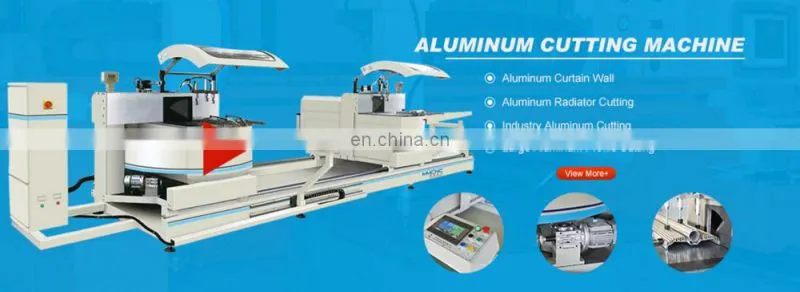

3.Whole Machine |
Industrial ALuminum Cutting Saw |
4.Detailed Photos |
Some parts of the machine |

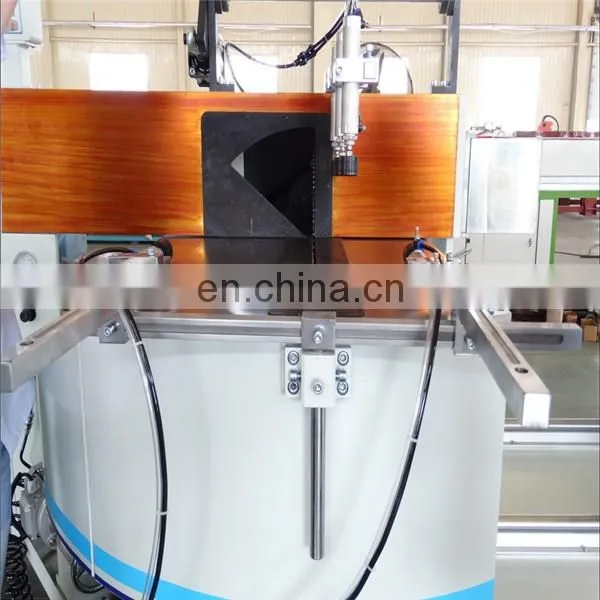

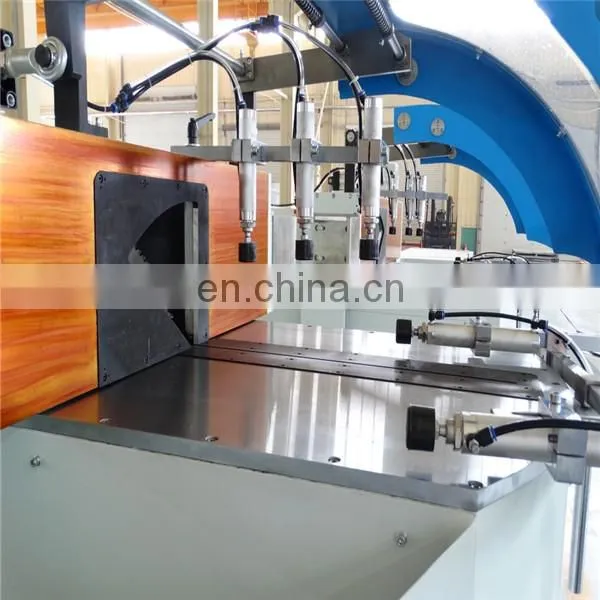

Working Table Cylinder
The cylinder and measure ruler

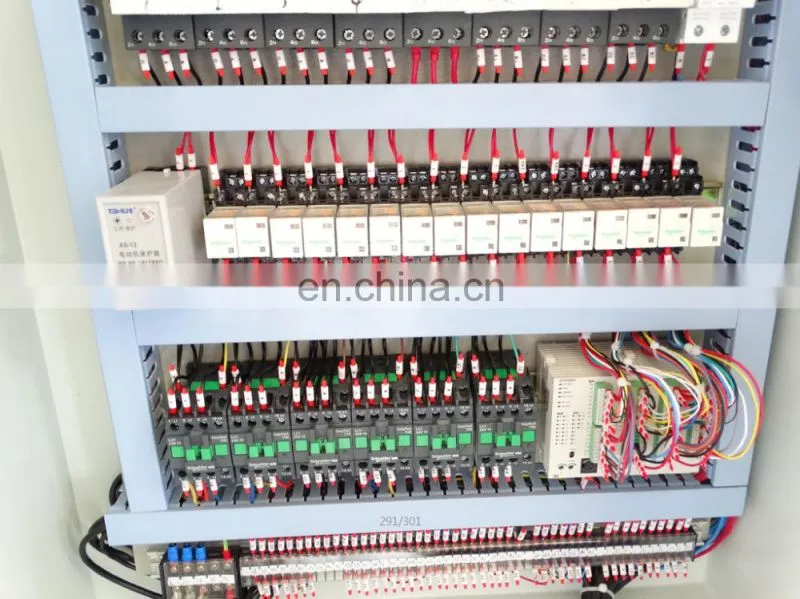

The inside of the control box

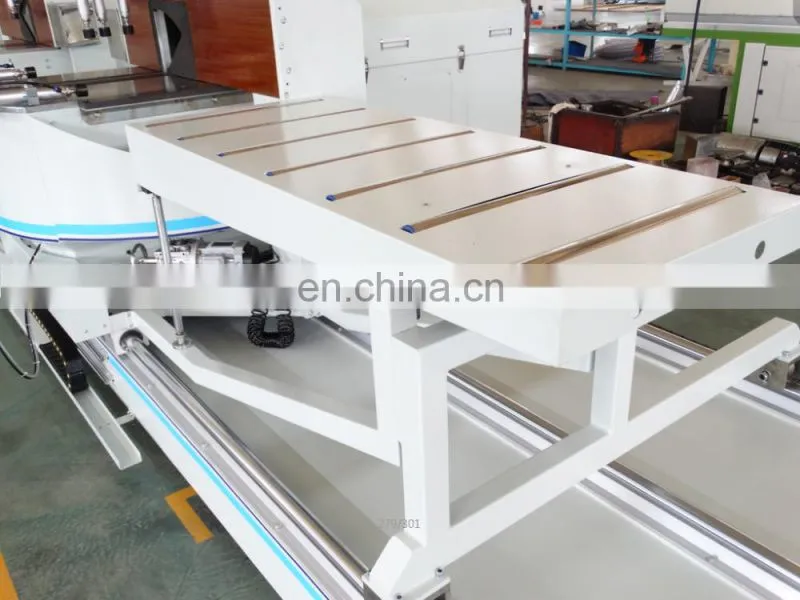

The Spporting Frame
5.Sample Profile |
You will get this |
6.Our Company |
The MMCNC Machinery Factory |

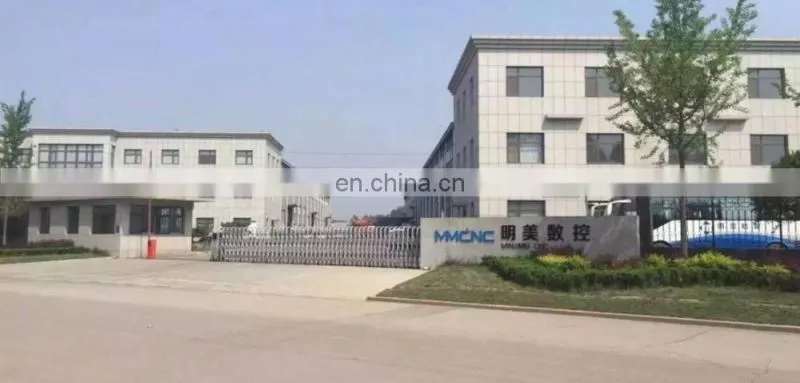

7.Factory |
The photos of our factory |
8.Customer |
The Come to Our Factory and buy the machine |
♣1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
♣2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
♣3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
♣4. If I make Aluminum window and door, how many basic machines do i need?
1).double head aluminium door and window making machine
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic aluminium door and window making machine
5).Single head Corner combining machine

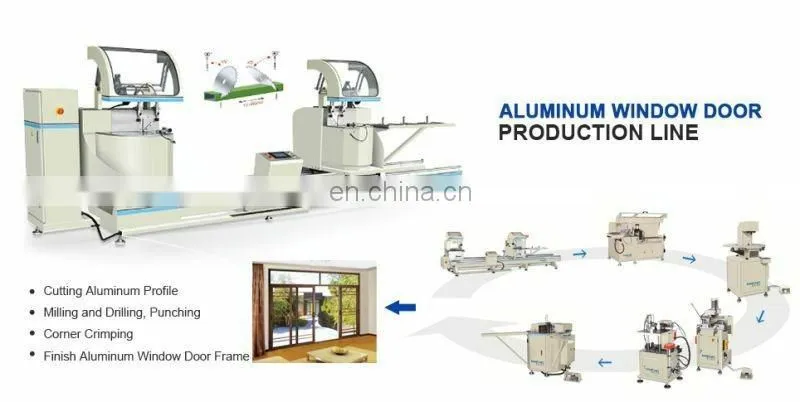

9.Processing line |
The whole processing line need like these |
