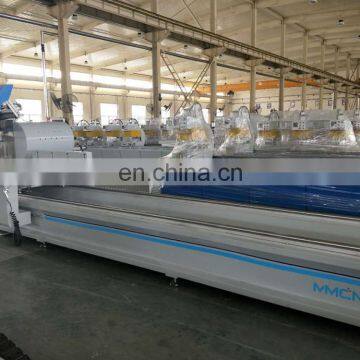

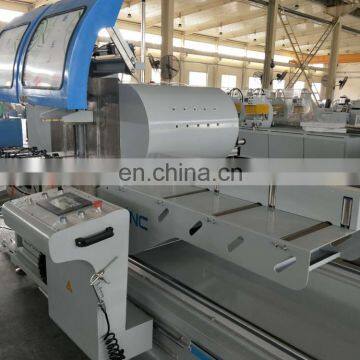

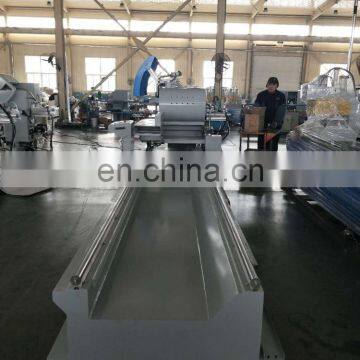

Bigger! Double Head Cutting Saw on ALU.Window-door Profile

 Double-head Precision Cutting Saw CNC On Aluminum Profile

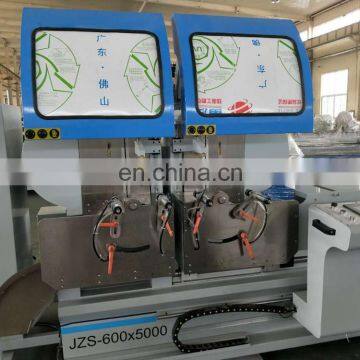

JZS-600*5000

1.  Features

1 Two head adopt cylinder transmit can achieve head sawing separately, Can sawing 90 and outer 45 degree.

2 Have the function of chose clamping press, Vertical and horizontal clamp can control in separately also can clamping together.

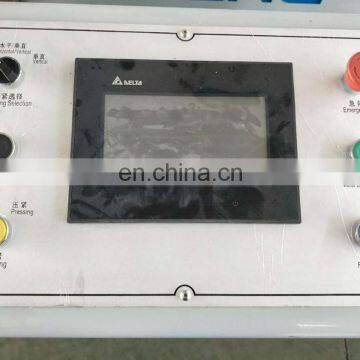

3 Head sawing adopt program control, make the complicate circuit integration, and reduce the fault about electric components.

4 Right head conveyor is 1200mm

5 Head is moved by handle wheel

6The min cutting scope is 430mm when  90°, Can cutting 5000mm when 45°

2 Parameter

1 Voltage: 380v 50Hz

2 Working Pressure:0.6~0.8MPa

3 Power:4.0kwx2

4 Blade specification:Ø600x30 (Option 650 saw blade)

5 Cutting Scope:   90°min 430mm, outer 45°, max 5000mm

6 Cutting width*height:200x200

7 Dimension:6620x1950x1700mm
