Beautiful Design Good quality!Double-head Precision Cutting Saw CNC machine

Standard Package

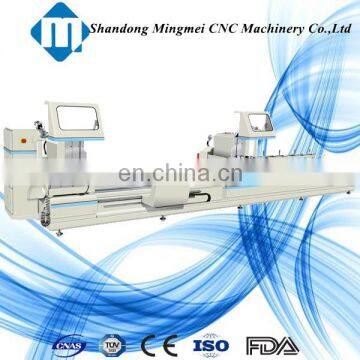

Double-head Precision Cutting Saw CNC

LJZ2S-500*4200

1. General Introduction

 This machine is designed for cutting any of aluminum curtain wall and window and door profile. The cutting angle is auto adjustable through the imported servo motor between 45.,67.5°,90..

 2. Equipment Features

2.1  Imported carbides blade is of accurate processing and high endurance.

2.2  Saw blade rotates smoothly due to high accurate main spindle.

2.3  Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.

2.4  The feeding system adopts the imported linear guide pair,with high accuracy and stability.

2.5  Two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.

2.6  Auto-opening shield make the operation safety.

2.7  Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving ,locating and smooth working.

2.8  This machine uses the numerical control technology, profiles of different specifications

can be completed automatically under the expected size.

 3. Parameter

3.1  Input power 5.9 Kw

3.2  Power supply 380V/50Hz

3.3  Air pressure 0.5~0.8MPa

3.4  Motor rotary speed 2800r/min

3.5  Saw Blade specification Φ500?Φ30

3.6  Cutting angle 90~67.5~45?

3.7  Cutting length 400~4200mm

3.8  Cutting width *height 135*200mm

3.9  Overall dimension 5700*1650*1520mm

3.10  Weight about 1613kg

products details
