Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking

Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking

Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking photo-1

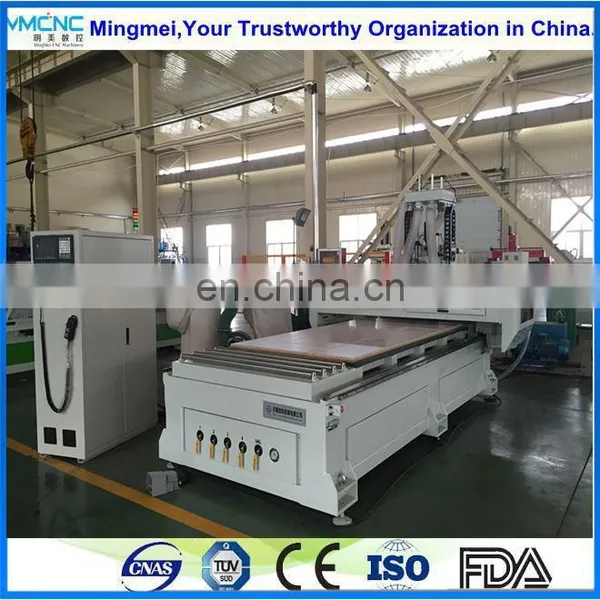

Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking photo-2

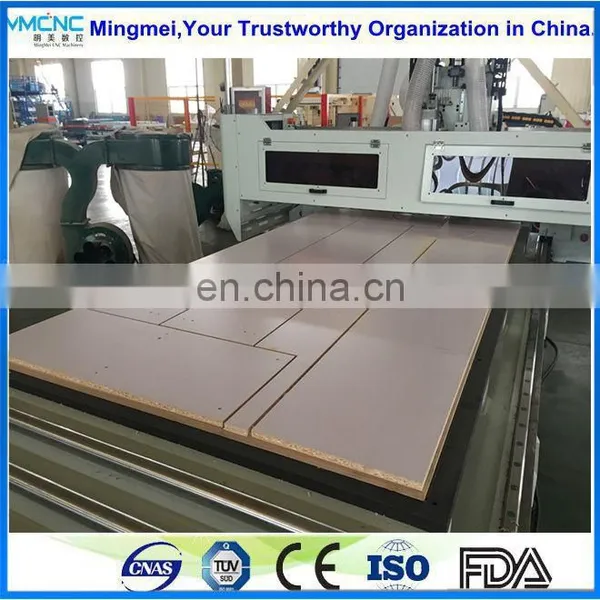

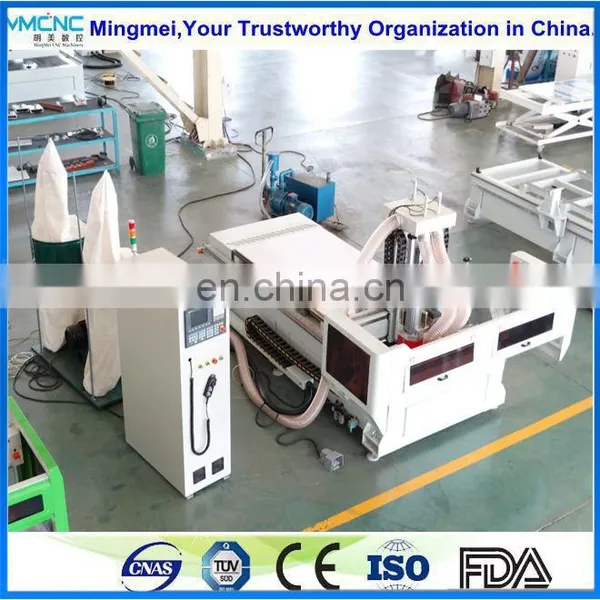

Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking photo-3

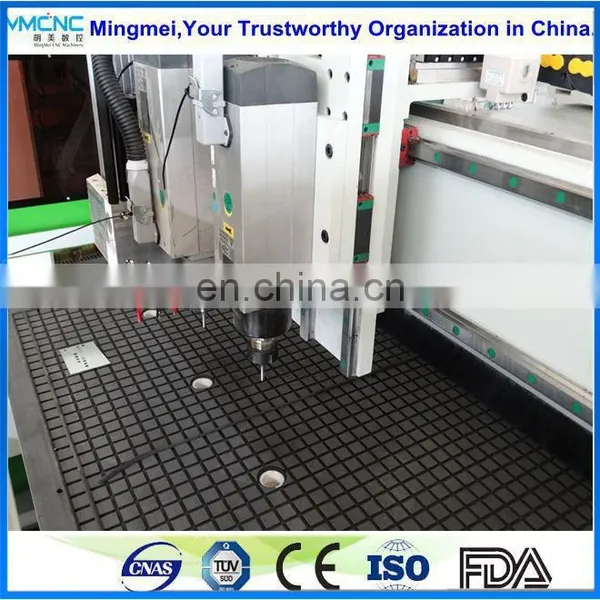

Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking photo-4
Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking photo-5
Mingmei 1325 2030 Two Spindles Boring Head ATC CNC Router for Woodworking photo-6
US$ 18,900 - 32,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MMCNC
Place of Origin:
Shandong, China
Model Number:
1325
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name MMCNC
Place of Origin Shandong, China
Model Number 1325
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 1200kg
Dimension(L*W*H) 3600*1900*2400
Voltage 220V/380V
Condition New
Power(W) 15KW
CNC or Not CNC

Quality is the Soul of an Enterprise!

Mingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking

Product Description

Shandong Mingmei Two Spindle1325 CNC Router is Widely used in Advertising engrave and cut ,Art and crafts,wood carving, density plate engraving, window and door carving etc.

MINGMEI focus on the quality of CNC Router and details to creating the value to customers.

 Mingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking



1.Two spindle and one multi-drilling head

Mingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking



2-Auto Push Material

Mingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking



3.More detail Parts of MachineMingmei 1325 2030 Two Spindles Boring head ATC CNC Router for WoodworkingMingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking

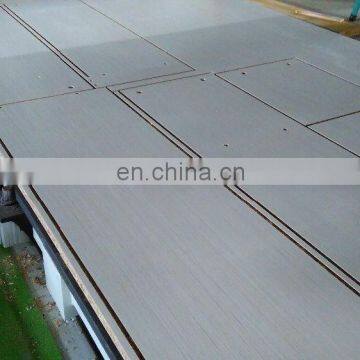

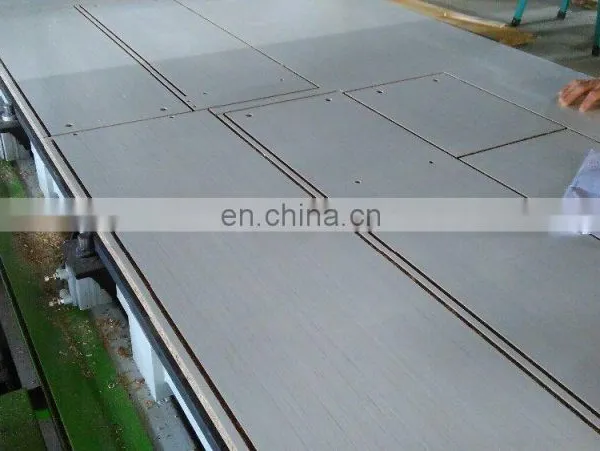

4-Samples after working of our CNC Router

Mingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking



Specification

Applications:

Advertising engrave and cut:sign and mark on MDF,Acrylic,PVC,double color boards,ACP, various lables.

Art and crafts:engraving text and graphics on gifts and souvenirs

Wood Processing:processing of various furniture such as door,window,cabinet,craft,wood door,wood screen.

NO

Description

Parameter

1

X,Y,Z, Working Area

1300x2500x200mm

2

Table Size

1300x2500mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy:

±0.03mm/300mm

5

Frame

Heavy Steel Tube Structure

6

X, Y Structure

Rack and Pinion Drive,Hiwin Rail Linear Bearings

7

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

8

Max. Power Consumption

(Without Spindle)About  15Kw

9

Max. Rapid Travel Rate

X  40000mm/min; Y  40000mm/min; Z  6000mm/min

11

Spindle Power

HSD 6kw and 3kw Spindle

12

Spindle Speed

0-24000RPM

13

Drive Motors

YASKAVA Servo motors

14

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

15

Command Language

G Code

16

Operating System

SYNTEC Control System

17

Computer Interface

USB / Ethernet

18

Flash Memory

512M

19

Collet

ER32

20

X,Y Resolution

<0.03mm

21

Software Compatibility

Type3/UcancameV9 software (Option: Artcam software)

22

Running Environment Temperature

0 - 45 Centigrade

23

Relative Humidity

30% - 75%

Company Information

MMCNC was found in 1995,which is a modern private enterprise specialized in technology development,

machinery manufacture and product sales.Company cover an area of 70000 square meters and 200 staffs.

MMCNC machine include Processing machine for making aluminum PVC window and door as well

as curtain wall, such as---

Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC WeldingMachine;

Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got CE,ECM,

EEC authorization .and it has won good market reputation.



Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!Mingmei 1325 2030 Two Spindles Boring head ATC CNC Router for Woodworking
