Home > Products > CNC Router > Milling atc 5 axis cnc router machine for foam wood plastic
Milling atc 5 axis cnc router machine for foam wood plastic
- 2000 Set / Sets per Month
- Qingdao China
- T/T Credit Card
-
5 axis cnc router for plastic wood aluminum mould making machine
-
5 Axis 5D CNC Router Machining Center for cutting,milling drilling holes,grooves on fiberglass,solid wood,plastic
-
Mingmei manufacturer 1325 woodworking cnc drilling router milling machinery price for furtinure
-
cnc router mingmei 1325 dual heads 3D double heads CNC Router,multi spindle wood carving machine
-
Heavy body 1325 two head cnc engraving machine/1325 double head cnc router
-
Five axis CNC Router Processing Center from Mingmei
Product Details
| Brand Name: | MMCNC | Place of Origin: | Shandong, China | Model Number: | MMCNC 1060 |
| Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 Months |
| Weight: | 6000KG | Dimension(L*W*H): | 8500x2500x3000mm | Voltage: | AC380V/50HZ |
| Condition: | New | Power(W): | 20kw | CNC or Not: | CNC |
Packaging Details
to make sure customer will receive the machines they ordered Intact.
Shipping:Shipping by 20GP,40GP,40HQ Container...
According to Customers' location and the vehicle size , we will provide professional packaging can save sea freight for cutomers.">These machines will be packed with Plastic Film and standard export wooden case,
to make sure customer will receive the machines they ordered Intact.
Shipping:Shipping by 20GP,40GP,40HQ Container...
According to Customers' location and the vehicle size , we will provide professional packaging can save sea freig
Product Description
Milling atc 5 axis cnc router machine
for foam wood plastic
1.Applicable materials:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial stonesplastics and soft metal sheets.
2.Technical Datasheet
Model Name | 1060-5axis CNC Router | ||
1 | Movement type |
| Movable table |
2 | Working area(MM):X*Y*Z |
| 1000*6000*900MM |
3 | Travel ling | C Axis | ±240° |
A Axis | ±120° | ||
4 | Beam spacing(mm) |
| 2750 |
5 | Beam Height(mm) |
| 1500 |
6 | Double pendulum head type |
| HS655 |
7 | Supplier for Double pendulum head |
| HSD |
8 | Output power of spindle |
| 15KW |
9 | 12.0KW Italian HSD Spindle speed |
| 24000R/M |
10 | Servo system |
| YASKAVA servo system |
11 | Inverter |
| Delta inverter |
12 | Table size(mm) |
| 1500*6000 |
13 | Material of Table |
| Casting iron |
14 | Material fixed Type |
| T-Slot |
15 | Tool magazine |
| Rotary tool magazine(8positions) |
16 | Cutter specifications |
| HSK.F63.ER40 |
17 | Control system |
| Taiwan Syntec 200MA |
18 | Minimum training period for operator |
| 2 weeks |
19 | Programming Softwares |
| AlphaCAM |
20 | Software version |
| V7 |
21 | Machine size |
| 8500*2500*3000mm |
22 | Total weight |
| 6T |
23 | Total power(kw) |
| 30KW |
24 | Voltage |
| AC 3P 380V 50HZ |
25 | Efficiency File Conversion(hr/day) |
| 0.5 |
26 | Maximum speed | X Axis | 60m/min |
Y Axis | 60m/min | ||
Z Axis | 30m/min | ||
C Axis | 2700°/min | ||
A Axis | 2700°/min | ||
3.Detailed Photos
3.1 HSD Main spindle 18KW
3.2 Disc tool magazine with HSD HSK F63 tool holder; Cutting Saw Blade
3.3 Automatic oil lubracation system; Mist spray for cooling down bit temperature; Water chiller for cooling down spindle; booster pump and air filter
3.4 Taiwan Syntec 200MA control system
3.5 France scheneider electric parts; Japan 1.3KW Yaskawa servo motors&drivers with SHIMPO reducers; Taiwan Delta VFD-B inverter

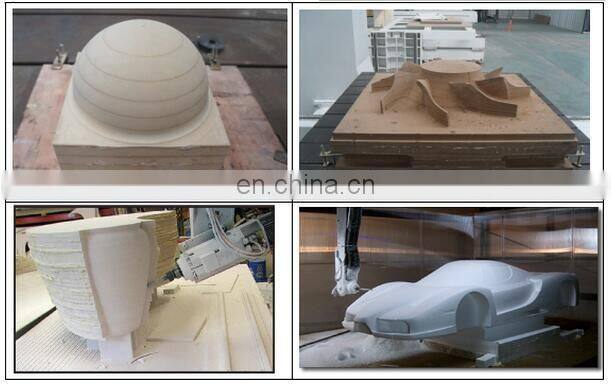

3.Samples
Firstly some small parts will be packed with wet resistant film; Secondly,we will use wet resistant film double wrapped; Thirdly, it will be wrapped with green stips make it stable then no movement during transportation; Fourth, it will wear thick plastic protective machine clothes; Finally, it will be packed in plywood box.
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
*We provide the consumable parts at agent price when you need replacement.
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.MMCNC Professional Manufacturer Of CNC Router 3 Axis,4 Axis,5 Axis, Automatic tool change cnc, Auto loading&unloading wood panel furniture making production line.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
1.Does your cnc router approved european standard?
-Yes, we past official CE testing with CE certificate and CE report.
2.Does your country attend any exhibition each year?
-Yes, we attend shanghai,guangzhou,beijing exhibitions each year..
Below is our 5 Axis CNC Router at Shanghai 2016 alu exhibition:
We supply you the complete SOLUTION from design to produce. Your questions, MMCNC solve, because we are more professional!
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
Contact Us
- Sinon CNC Machine Co., Ltd.
-
5-axis five synchronizing cnc gantry aluminim milling drilling working center machine
-
Aluminum profile Plastic steel groove milling processing working center machine five axis
-
Wood MDF Plastic Aluminum Metal 3d desktop 4 axis cnc router engraver machine
-
rotary attached 4 axis cnc router/mini cnc 5 axis/cnc milling machine
-
China cnc router machine 4 axis cnc router cnc woodcarving machine
-
1325 Four-axis Carousel ATC CNC Center/1325-4 ATC-axis machining center
-
4 axis CNC router machine cnc 3d processing wood router 1325 auto tool change
-
China 4 axis ATC woodworking cnc router/4 axis cnc machine with rotary clamp
-
Chinese milling/drilling machine 4 axis wood cnc router atc 1325 cnc router
-
cnc wood planer machine 4 axis ATC cnc router for furniture
-
4 axis one head wood cnc machine price ATC 4 axis wood cnc router machine
-
3 or 4 axis cnc milling machine wood milling machine cnc router atc machine
-
4 axis atc cnc router with rotary for sculpting
-
HSD air cooling spindle mould desktop mini wood carving engraving router center 3D 5 axis cnc woodworking machine
-
China CE supply wood 5 axis cnc vertical machining center/5 axis cnc woodworking machine
-
Jinan hot sale 5 axis cnc wood router machining center for art work with CE certification
-
woodworking machines from china 5 axis cnc router for wood mould
-
wood processing cnc router machine 3d mould making cnc machine price
-
wood 5 synchronizing interpolated axes 3d models cnc router machine five axis working center
-
quality assured china made cheap 5 axis cnc machine
-
professional and homemade high speed quality boat mould 5 axis cnc router
-
professional 5 axis cnc machine price for wood foam stone mould sculpture statue
-
polystyrene router 5 axis 5 axe routeur cnc
-
new design cnc kitchen woodwork center cnc 5 axis machine center
