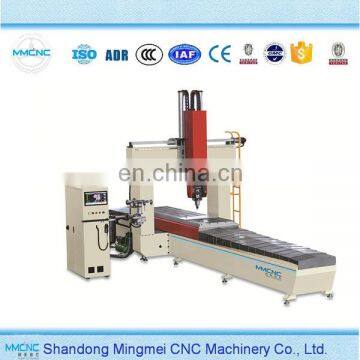

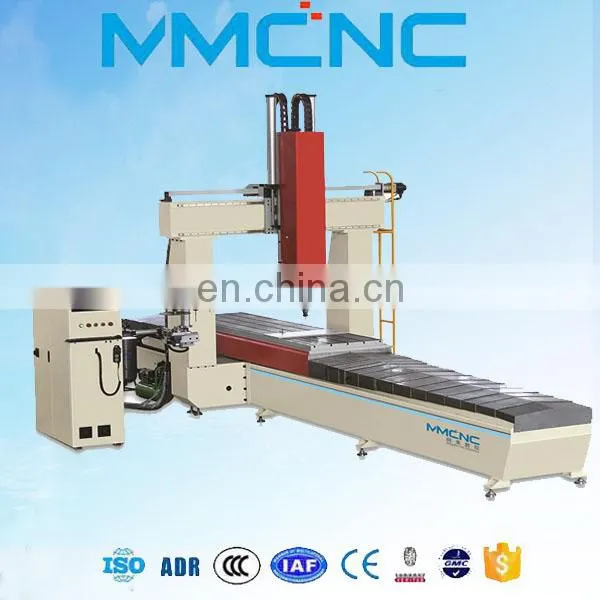

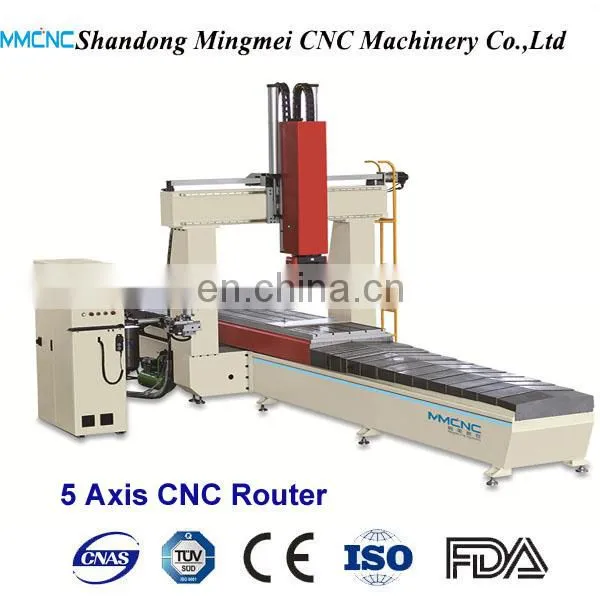

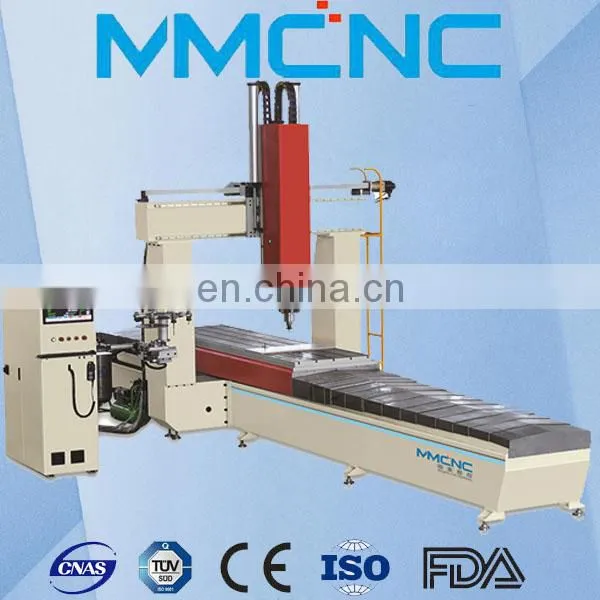

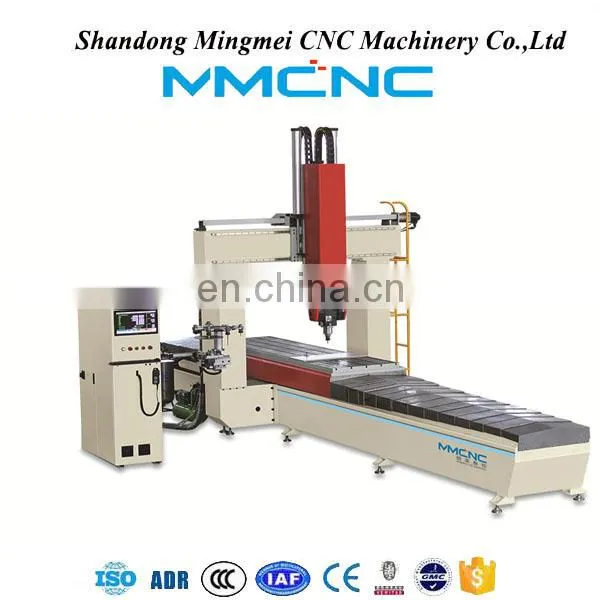

5 axis cnc router for plastic wood aluminum mould making machine
1.Applicable materials:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial stonesplastics and soft metal sheets.
2.Technical Datasheet
Model Name | 1060-5axis CNC Router | ||
1 | Movement type |
| Movable table |
2 | Working area(MM):X*Y*Z |
| 1000*6000*900MM |
3 | Travel ling | C Axis | ±240° |
A Axis | ±120° | ||
4 | Beam spacing(mm) |
| 2750 |
5 | Beam Height(mm) |
| 1500 |
6 | Double pendulum head type |
| HS655 |
7 | Supplier for Double pendulum head |
| HSD |
8 | Output power of spindle |
| 15KW |
9 | 12.0KW Italian HSD Spindle speed |
| 24000R/M |
10 | Servo system |
| YASKAVA servo system |
11 | Inverter |
| Delta inverter |
12 | Table size(mm) |
| 1500*6000 |
13 | Material of Table |
| Casting iron |
14 | Material fixed Type |
| T-Slot |
15 | Tool magazine |
| Rotary tool magazine(8positions) |
16 | Cutter specifications |
| HSK.F63.ER40 |
17 | Control system |
| Taiwan Syntec 200MA |
18 | Minimum training period for operator |
| 2 weeks |
19 | Programming Softwares |
| AlphaCAM |
20 | Software version |
| V7 |
21 | Machine size |
| 8500*2500*3000mm |
22 | Total weight |
| 6T |
23 | Total power(kw) |
| 30KW |
24 | Voltage |
| AC 3P 380V 50HZ |
25 | Efficiency File Conversion(hr/day) |
| 0.5 |
26 | Maximum speed | X Axis | 60m/min |
Y Axis | 60m/min | ||
Z Axis | 30m/min | ||
C Axis | 2700°/min | ||
A Axis | 2700°/min | ||
3.Detailed Photos
3.1 HSD Main spindle 18KW

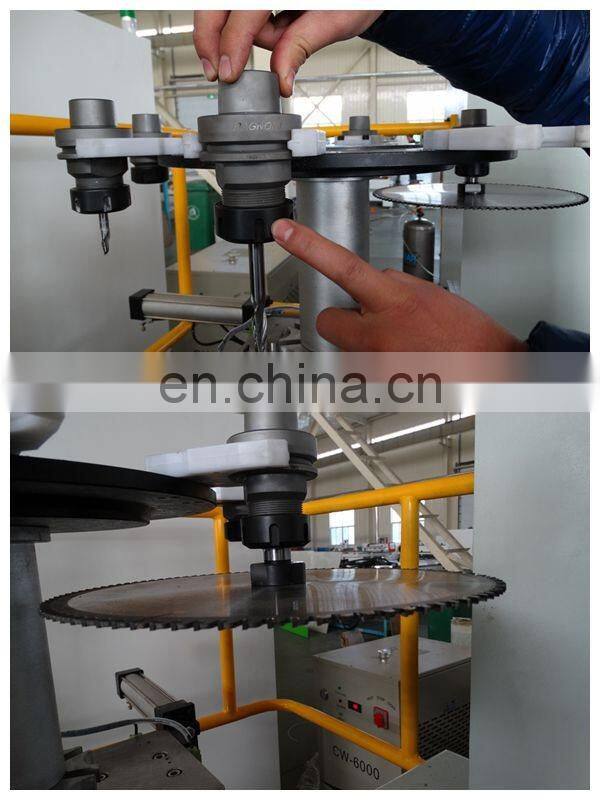

3.2 Disc tool magazine with HSD HSK F63 tool holder; Cutting Saw Blade

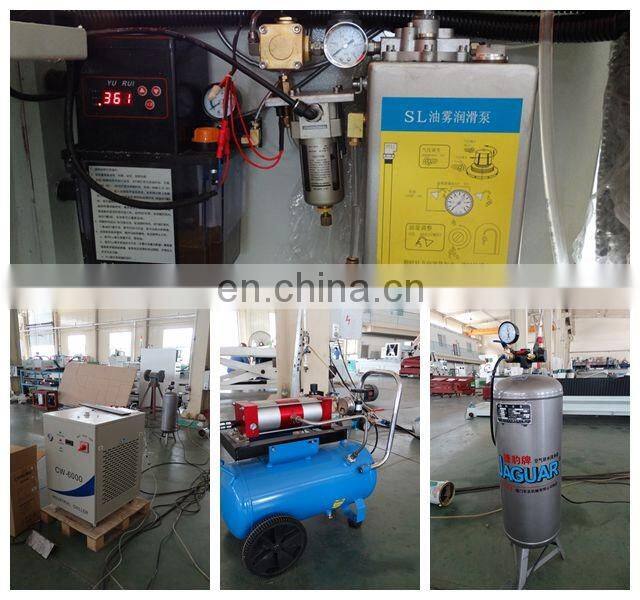

3.3 Automatic oil lubracation system; Mist spray for cooling down bit temperature; Water chiller for cooling down spindle; booster pump and air filter
3.4 Taiwan Syntec 200MA control system
3.5 France scheneider electric parts; Japan 1.3KW Yaskawa servo motors&drivers with SHIMPO reducers; Taiwan Delta VFD-B inverter

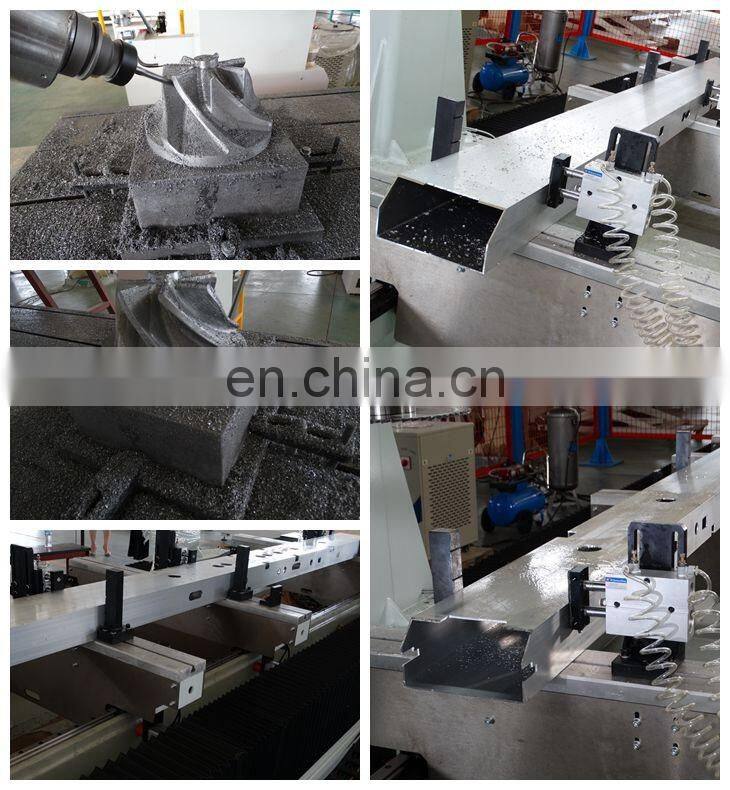

3.Samples:used for making aluminum mould and milling drilling cutting slots,grooves on aluminum profiles.
Firstly some small parts will be packed with wet resistant film; Secondly,we will use wet resistant film double wrapped; Thirdly, it will be wrapped with green stips make it stable then no movement during transportation; Fourth, it will wear thick plastic protective machine clothes; Finally, it will be packed in plywood box.
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
*We provide the consumable parts at agent price when you need replacement.
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.MMCNC Professional Manufacturer Of CNC Router 3 Axis,4 Axis,5 Axis, Automatic tool change cnc, Auto loading&unloading wood panel furniture making production line.
1.Does your cnc router approved european standard?
-Yes, we past official CE testing with CE certificate and CE report.
2.Does your country attend any exhibition each year?
-Yes, we attend shanghai,guangzhou,beijing exhibitions each year..

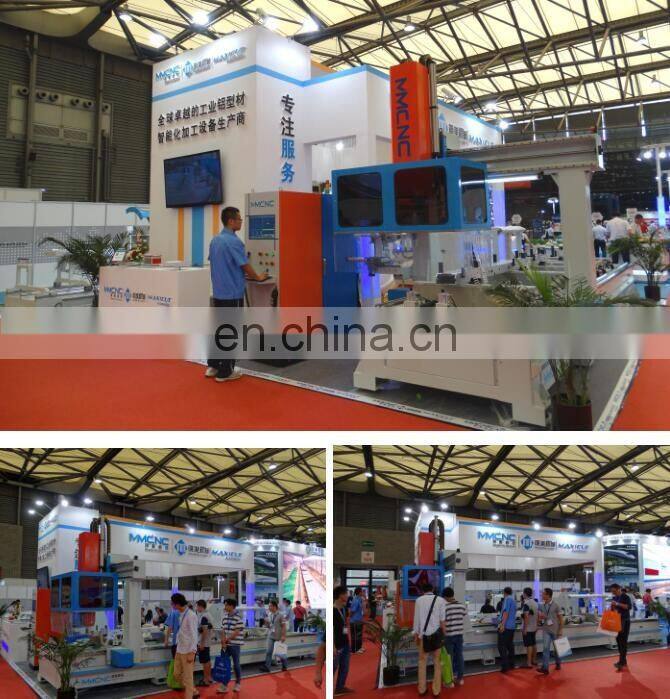

Below is our 5 Axis CNC Router at Shanghai 2016 alu exhibition:
We supply you the complete SOLUTION from design to produce. Your questions, MMCNC solve, because we are more professional!
