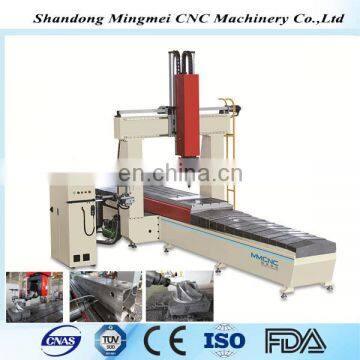

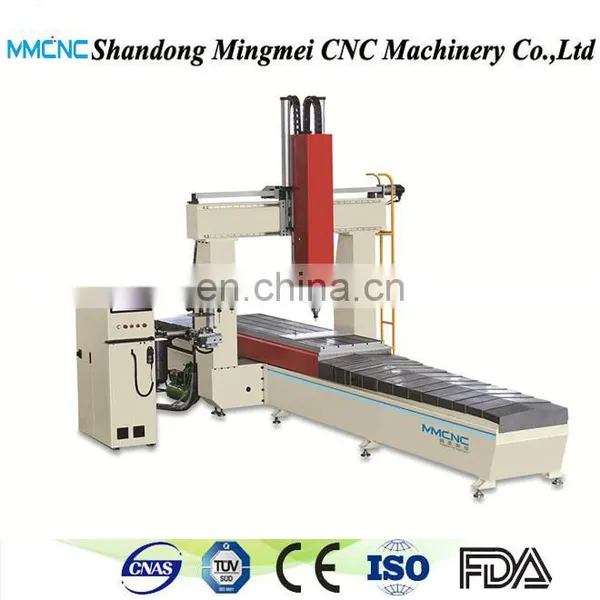

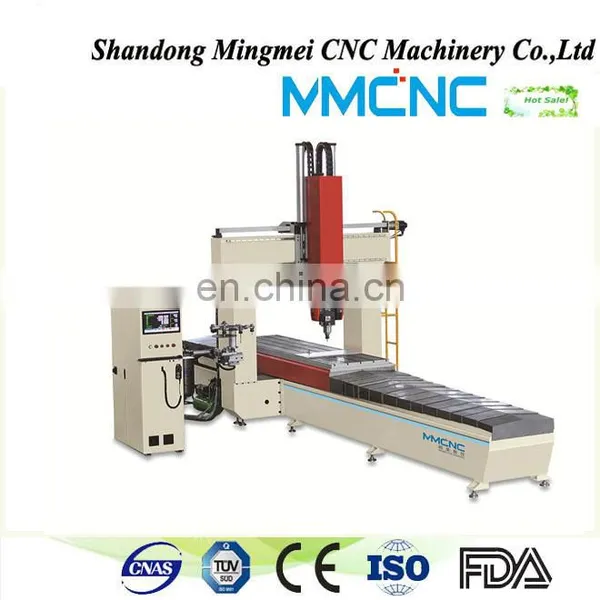

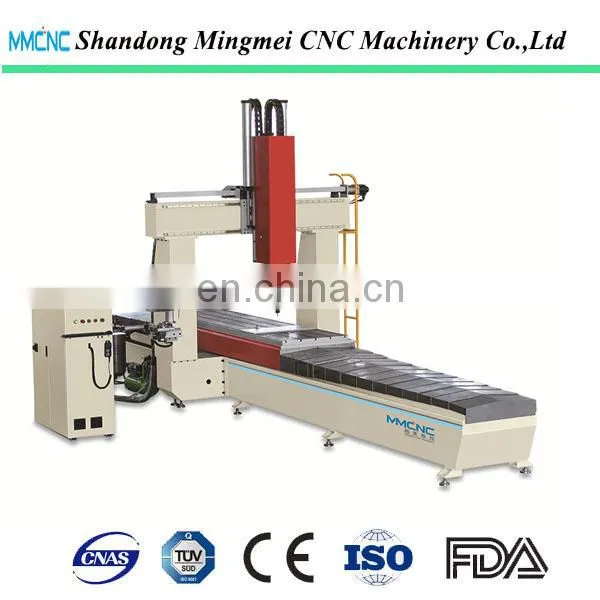

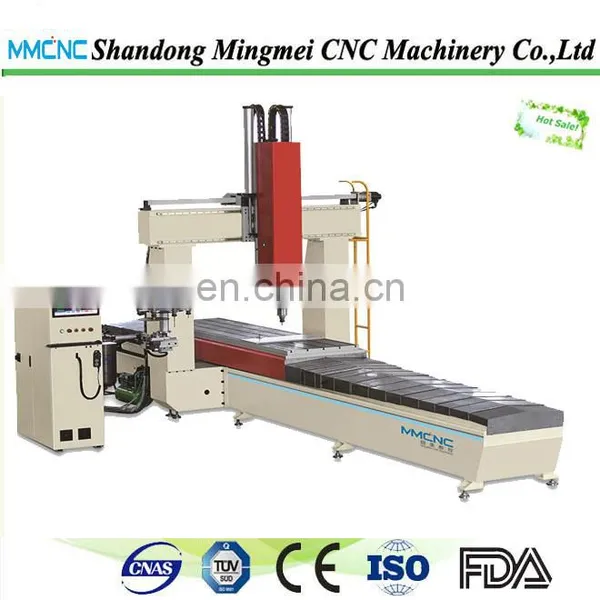

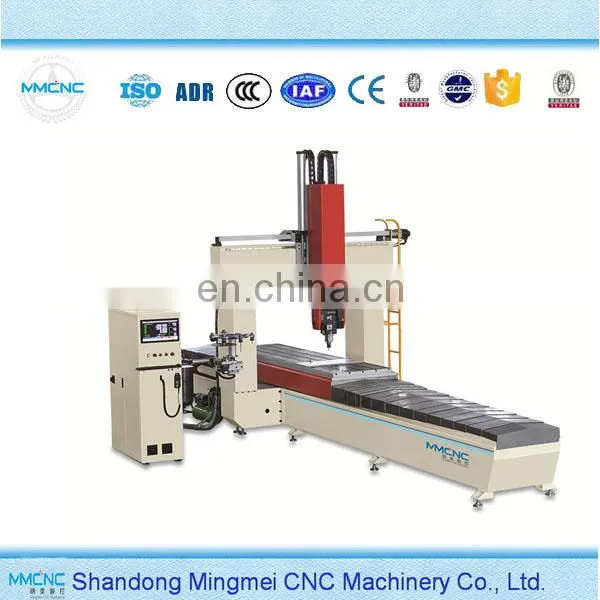

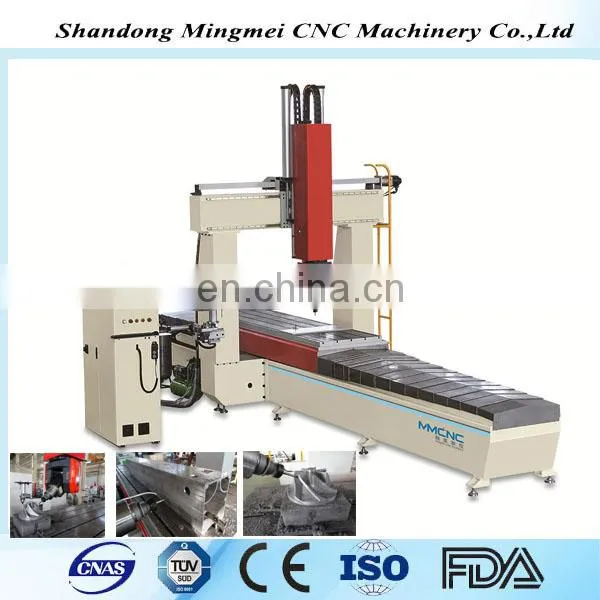

3d 5d mold making wood cnc milling machine price
1.Applicable materials:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial stonesplastics and soft metal sheets.
2.Technical Datasheet
Model Name | 1060-5axis CNC Router | ||
1 | Movement type |
| Movable table |
2 | Working area(MM):X*Y*Z |
| 1000*6000*900MM |
3 | Travel ling | C Axis | ±240° |
A Axis | ±120° | ||
4 | Beam spacing(mm) |
| 2750 |
5 | Beam Height(mm) |
| 1500 |
6 | Double pendulum head type |
| HS655 |
7 | Supplier for Double pendulum head |
| HSD |
8 | Output power of spindle |
| 15KW |
9 | 12.0KW Italian HSD Spindle speed |
| 24000R/M |
10 | Servo system |
| YASKAVA servo system |
11 | Inverter |
| Delta inverter |
12 | Table size(mm) |
| 1500*6000 |
13 | Material of Table |
| Casting iron |
14 | Material fixed Type |
| T-Slot |
15 | Tool magazine |
| Rotary tool magazine(8positions) |
16 | Cutter specifications |
| HSK.F63.ER40 |
17 | Control system |
| Taiwan Syntec 200MA |
18 | Minimum training period for operator |
| 2 weeks |
19 | Programming Softwares |
| AlphaCAM |
20 | Software version |
| V7 |
21 | Machine size |
| 8500*2500*3000mm |
22 | Total weight |
| 6T |
23 | Total power(kw) |
| 30KW |
24 | Voltage |
| AC 3P 380V 50HZ |
25 | Efficiency File Conversion(hr/day) |
| 0.5 |
26 | Maximum speed | X Axis | 60m/min |
Y Axis | 60m/min | ||
Z Axis | 30m/min | ||
C Axis | 2700°/min | ||
A Axis | 2700°/min | ||
3.Detailed Photos

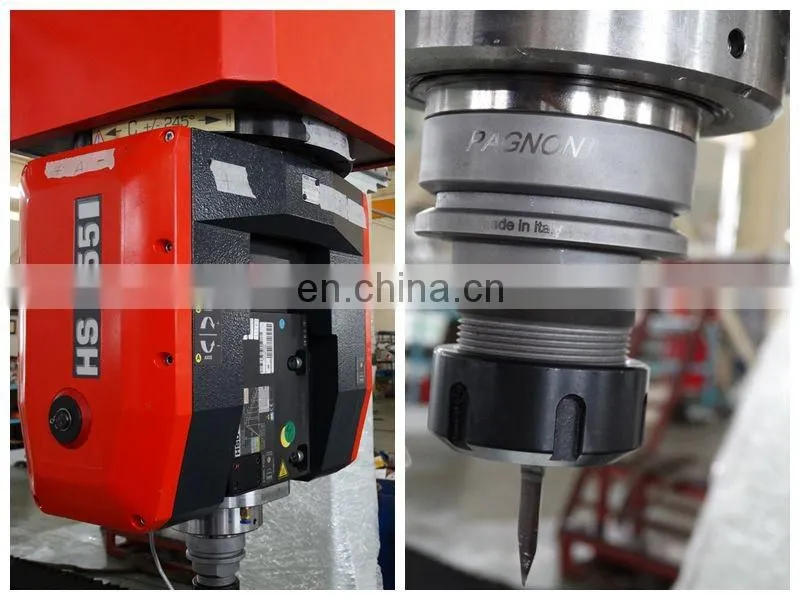

3.1 HSD Main spindle 18KW

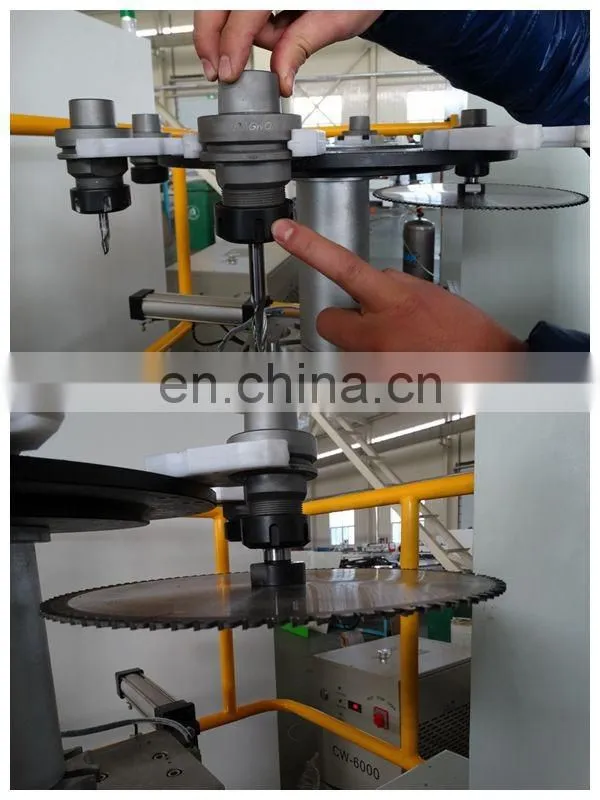

3.2 Disc tool magazine with HSD HSK F63 tool holder; Cutting Saw Blade

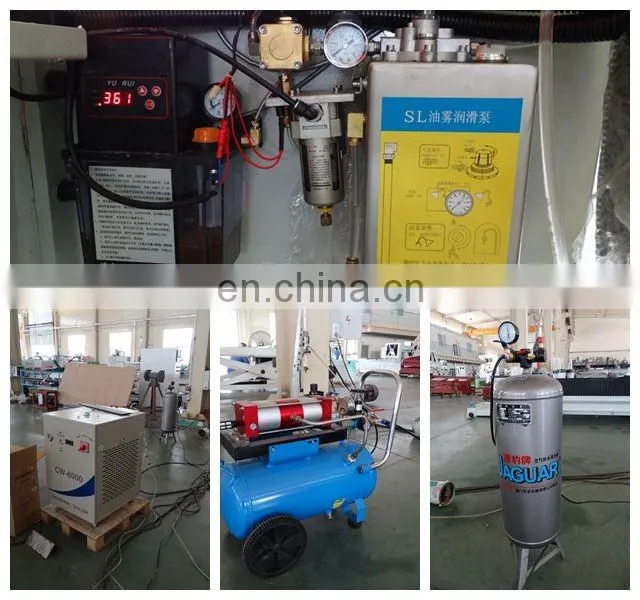

3.3 Automatic oil lubracation system; Mist spray for cooling down bit temperature; Water chiller for cooling down spindle; booster pump and air filter

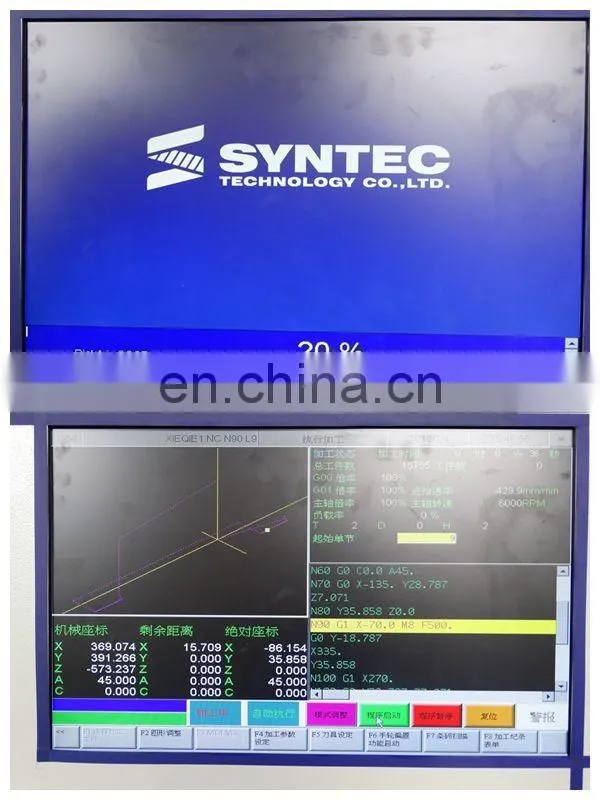

3.4 Taiwan Syntec 200MA control system

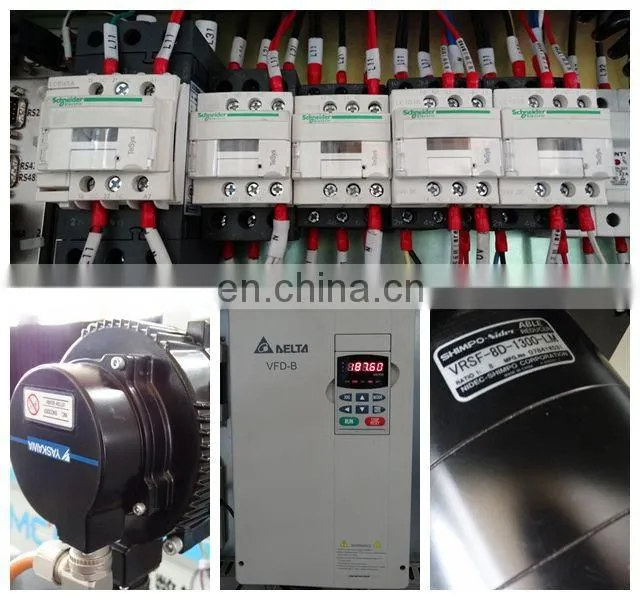

3.5 France scheneider electric parts; Japan 1.3KW Yaskawa servo motors&drivers with SHIMPO reducers; Taiwan Delta VFD-B inverter
3.Samples
Firstly some small parts will be packed with wet resistant film; Secondly,we will use wet resistant film double wrapped; Thirdly, it will be wrapped with green stips make it stable then no movement during transportation; Fourth, it will wear thick plastic protective machine clothes; Finally, it will be packed in plywood box.
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
*We provide the consumable parts at agent price when you need replacement.
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.MMCNC Professional Manufacturer Of CNC Router 3 Axis,4 Axis,5 Axis, Automatic tool change cnc, Auto loading&unloading wood panel furniture making production line.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
1.Does your cnc router approved european standard?
-Yes, we past official CE testing with CE certificate and CE report.
2.Does your country attend any exhibition each year?
-Yes, we attend shanghai,guangzhou,beijing exhibitions each year..

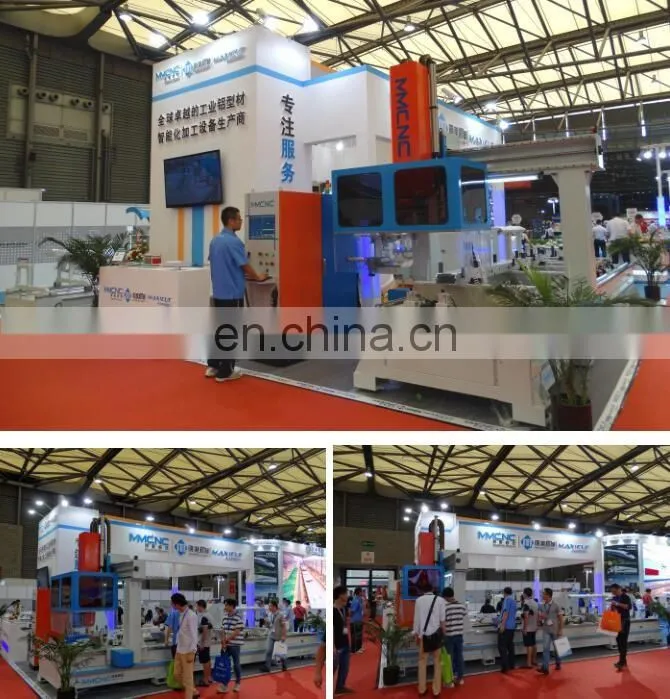

Below is our 5 Axis CNC Router at Shanghai 2016 alu exhibition:
We supply you the complete SOLUTION from design to produce. Your questions, MMCNC solve, because we are more professional!
