drilling holes on curtain wall profile drilling machine for upvc window
- 200 Set / Sets per Month
- Qingdao China multi-head combination drilling machine
- T/T Credit Card
-
drilling holes on curtain wall profile aluminum profile drilling machine
-
factory machine tool equipment
-
high speed SKX3+1-CNC-3000 milling and tenon machine process milling circular holes
-
Aluminum profile window door machine
-
aluminum profile window cnc drilling milling machine aluminium doors window manufacturing machine
-
SKX3+1-CNC-3000 Finland cnc milling machine for aluminum curtain wall
Product Details
| Brand Name: | Mingmei | Model Number: | LZZ4-13 |
Packaging Details
Iron frame or plywood box drilling machine for upvc window
Product Description
multi-head
combination drilling machine
Window And Curtain Wall Processing Machine
Drilling Hole Machine
1. Feature
1.1 Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume-produce
1.2 Max processing profile section size is 250 x 250 mm,max processing length is 5000mm
1.3 Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
1.4 Feeding system adopts airdraulic-damping cylinder,which ensured smooth feeding
1.5 Imported PLC control system with steady capability
2. Specification
2.1 | Power supply | 380V 50Hz |
2.2 | Cutting motor power | 4 x 1.1 kw |
2.3 | Max distance between two drilling holes | 5000mm |
2.4 | Min distance between each group holes | 300mm |
2.5 | Worktable size | 300x 200 mm |
2.6 | Drilling head feeding travel | 125mm |
2.7 | Feeding pressure | 0.5~0.8MPa |
2.8 | Max processing profile section size | 250 x 250mm |
2.9 | Overall dimension | 5500x1100x1800 mm |
3.0 | Weight about | 1175 kg |
3. Machine During Production.
4. Testing Machine
5. Machine Ready for Delivery

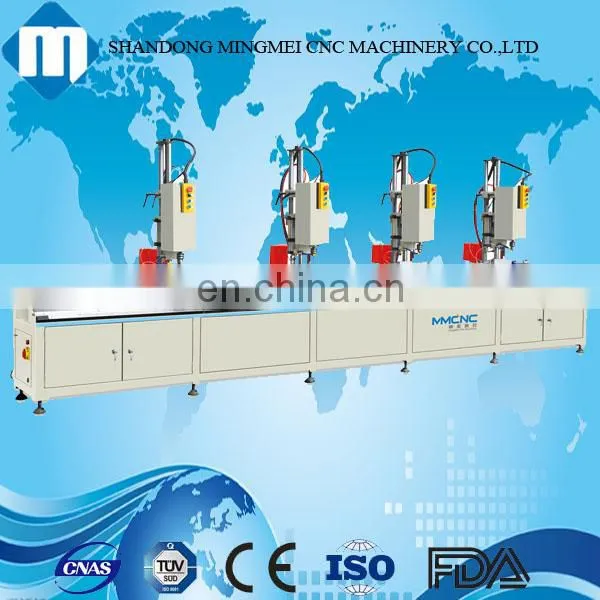

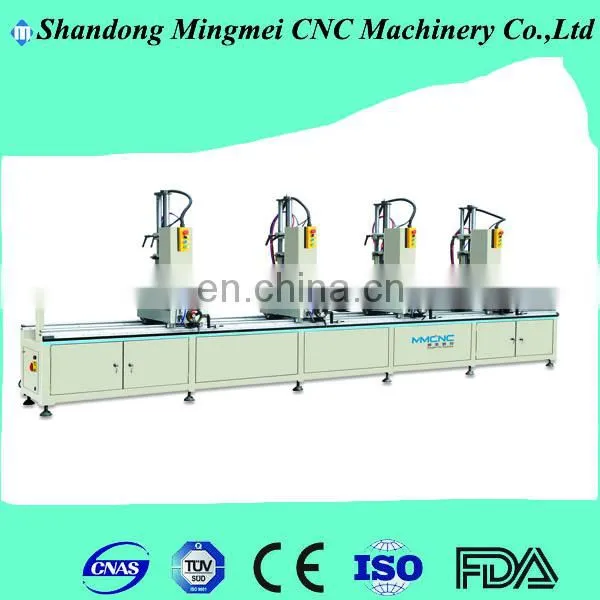

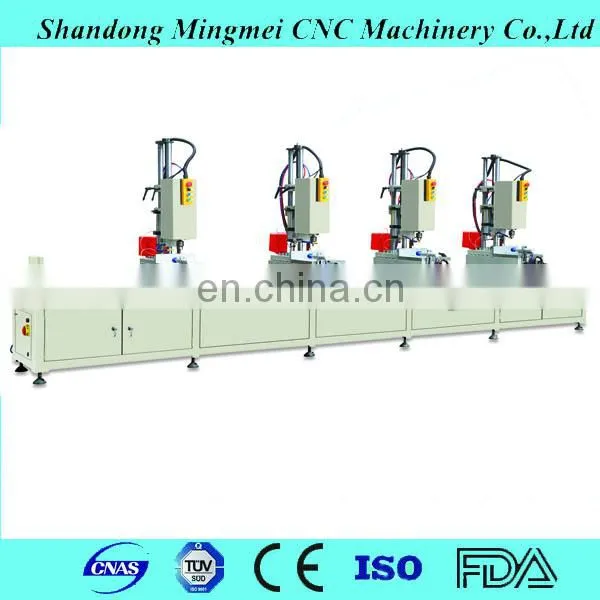

6. Overall Machine (we have two color:blue and white)
Our factory-Showroom
l 1.One year warranty time, we can repair and replace parts for free in one year.
l 2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
l 3.Life time free maintenance service.
l 4.Free training course at our factory with professional engineers.
l 5.We provide the consumable parts at agent price when you need replacement.
l 6.Engineer available overseas.
Our Certificates
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
