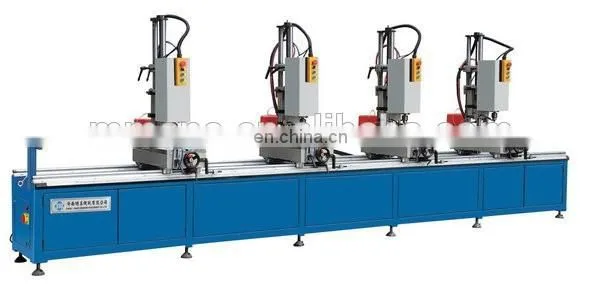

multi-head
combination drilling machine
Window And Curtain Wall Processing Machine
Drilling Hole Machine
1. Feature
1.1 Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume-produce
1.2 Max processing profile section size is 250 x 250 mm,max processing length is 5000mm
1.3 Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
1.4 Feeding system adopts airdraulic-damping cylinder,which ensured smooth feeding
1.5 Imported PLC control system with steady capability
2. Specification
2.1 |
Power supply |
380V 50Hz |
2.2 |
Cutting motor power |
4 x 1.1 kw |
2.3 |
Max distance between two drilling holes |
5000mm |
2.4 |
Min distance between each group holes |
300mm |
2.5 |
Worktable size |
300x 200 mm |
2.6 |
Drilling head feeding travel |
125mm |
2.7 |
Feeding pressure |
0.5~0.8MPa |
2.8 |
Max processing profile section size |
250 x 250mm |
2.9 |
Overall dimension |
5500x1100x1800 mm |
3.0 |
Weight about |
1175 kg |

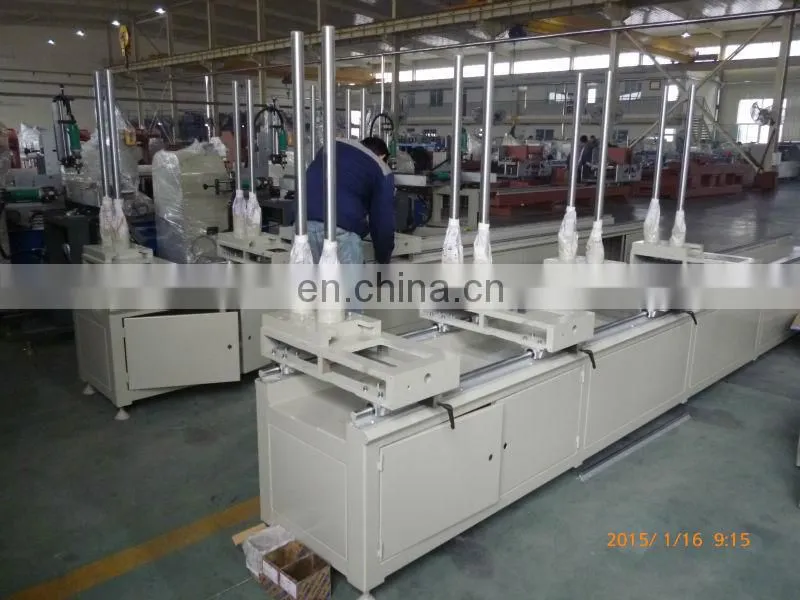

3. Machine During Production.

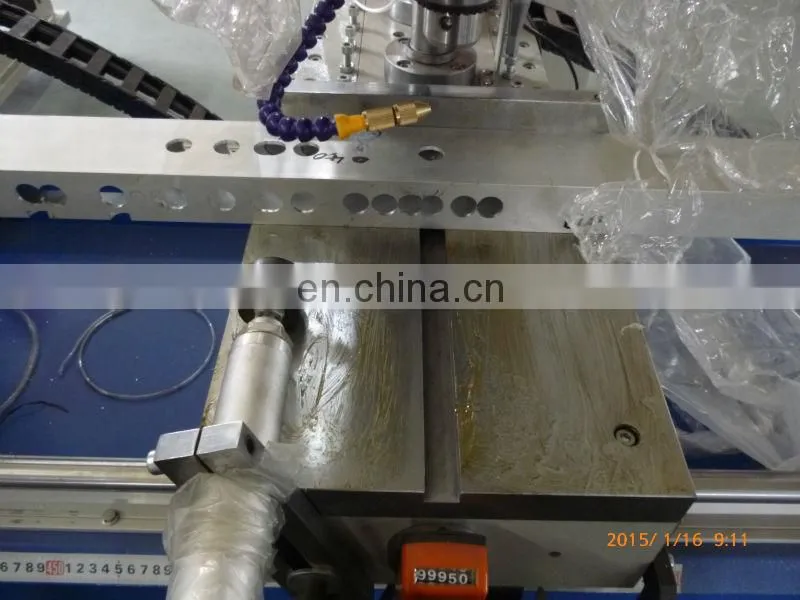

4. Testing Machine

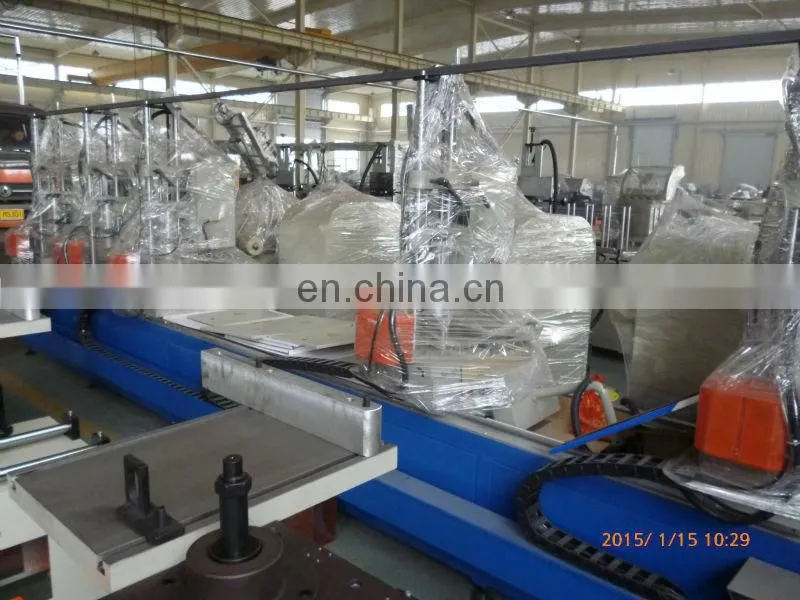

5. Machine Ready for Delivery

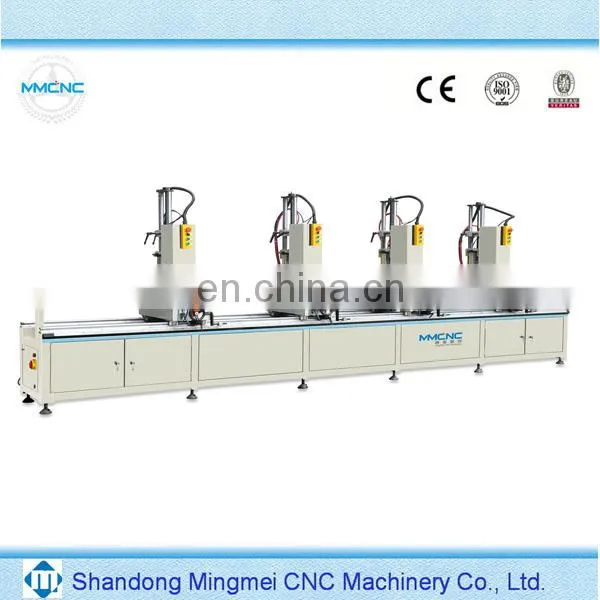

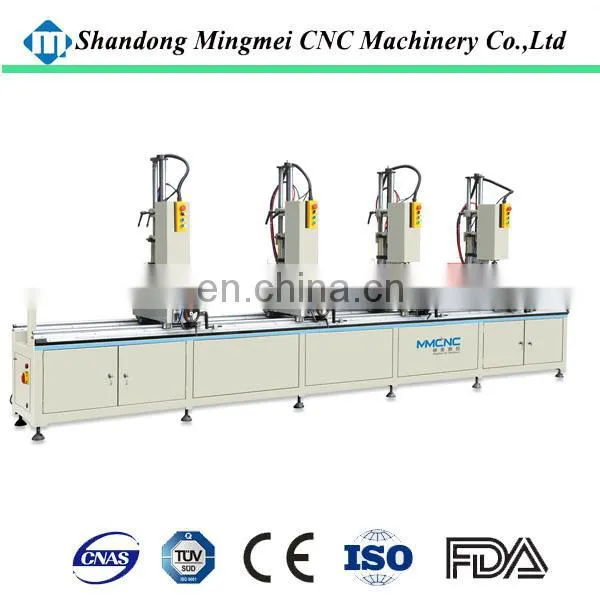

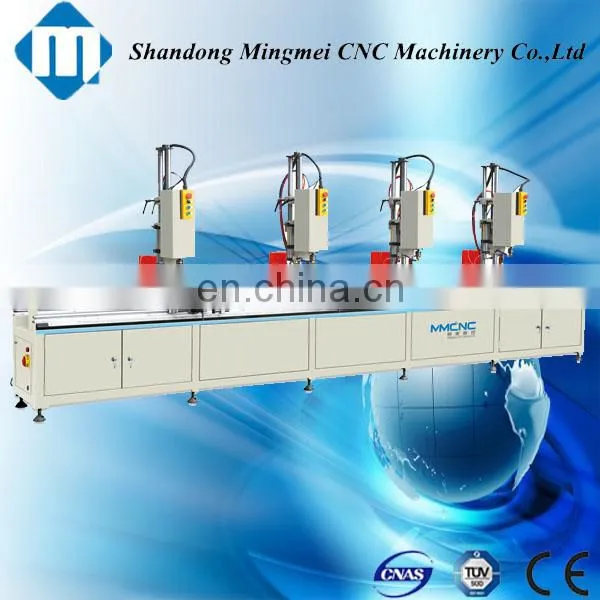

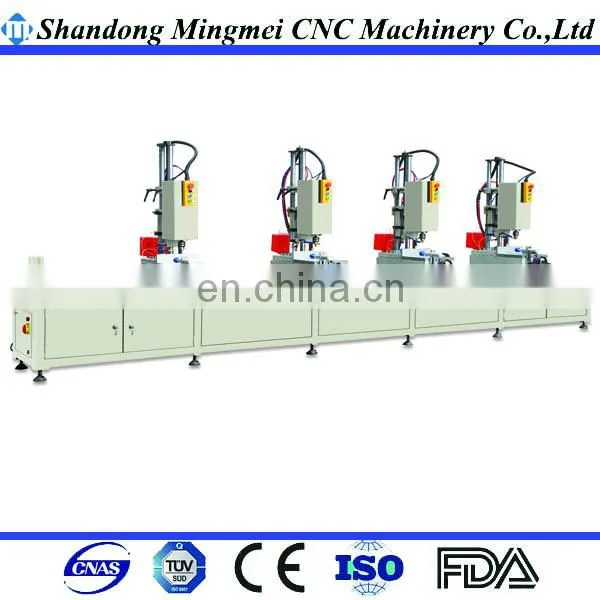

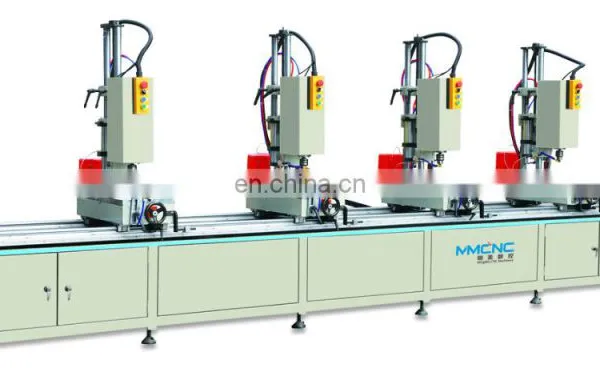

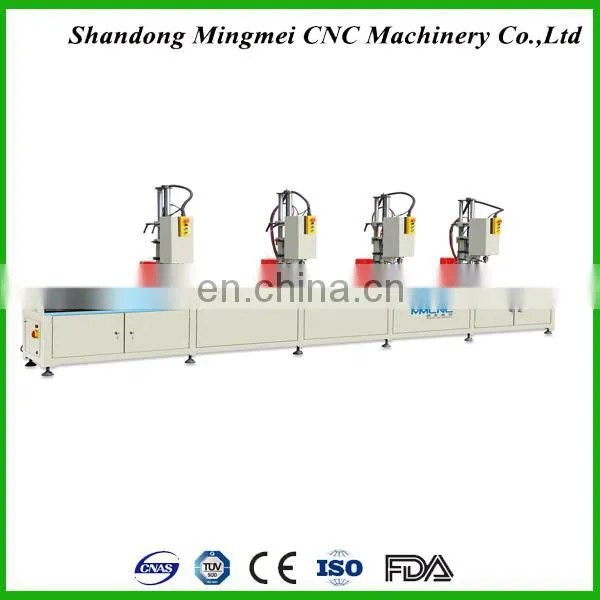

6. Overall Machine (we have two color:blue and white)

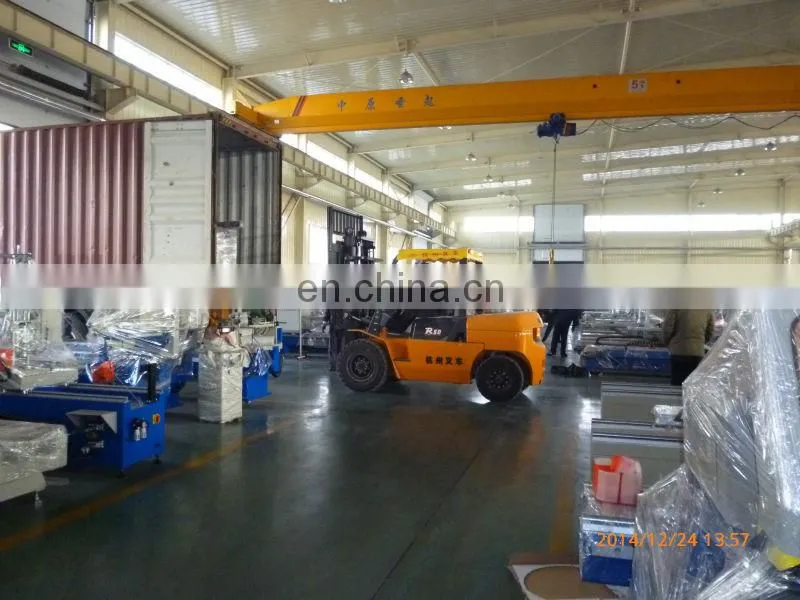

Our factory-Showroom
l 1.One year warranty time, we can repair and replace parts for free in one year.
l 2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
l 3.Life time free maintenance service.
l 4.Free training course at our factory with professional engineers.
l 5.We provide the consumable parts at agent price when you need replacement.
l 6.Engineer available overseas.
