4 Axis Aluminum Facade Drilling Milling Machining Centre,aluminum Profile Cnc

Iron pallet

LM4-CNC-6000/7000 Gantry Type 4 Axis

Aluminum Profile CNC Machining Center

1.Equipment Features
1.1 Taiwan Syntec control system, distinct interface, easy operation.
1.2 With professional CAM software, according to the settings, clamping placed automatically,

moving automatically, realized high efficient three-dimensional 4 axis processing.
1.3 CAD pattern can be imported software directly, and also can make design on CAM software directly, generate NC files, edit and implement processing programs.
1.4 Single positioning and double positioning design, loading unloading profile non-stop, with higher processing efficiency.
1.5 Automatic lubrication system, mist spray for cooling down tool temperature.
1.6 It can process aluminum profile, aluminium wood composite profile etc light metal processing.
1.7 One clamping can finish aluminum profile multiaspect drilling, tapping, chamfering, edge milling, slot milling and heteromorphic holes processing.
1.8 Adopt high precision imported ball screw,square guides,rack and pinion, ensure machine precision and stability.
1.9 Japan Yaskawa servo motors&drivers, Italy HSD ATC spindle, make sure machine high accuracy.
1.10 The tool magazine capacity is two group of 16 pcs, one is disc automatic tool change 8 pcs, another is linear automatic tool change 8 pcs.
1.11 Machine head fully enclosed structure to ensure the safety of operator.

2.Technical Parameter

2.1  Power supply:380v,50Hz

2.2  Working pressure:0.6~0.8 Mpa

2.3  Total power:16 kw

2.4  Spindle power:9kw

2.5  Spindle rotary speed:24000rpm

2.6  Spindle maximum output torque:6.4 NM

2.7  Tool magazine: 8+8

2.8  Tool shank model: ISO30

2.9   Clamps No.: 8

2.10 Processing travel:X-6000  Y-500  Z-300

2.11 Feeding speed: X50m/min   Y25m/min   Z10m/min

2.12 Processing size: 6000x450x300

2.13 Lubrication : automatic

2.14 Cooling :Oil mist pump

2.15 Overall dimension:9000x2230x3060

2.16 Weight: 5700kg

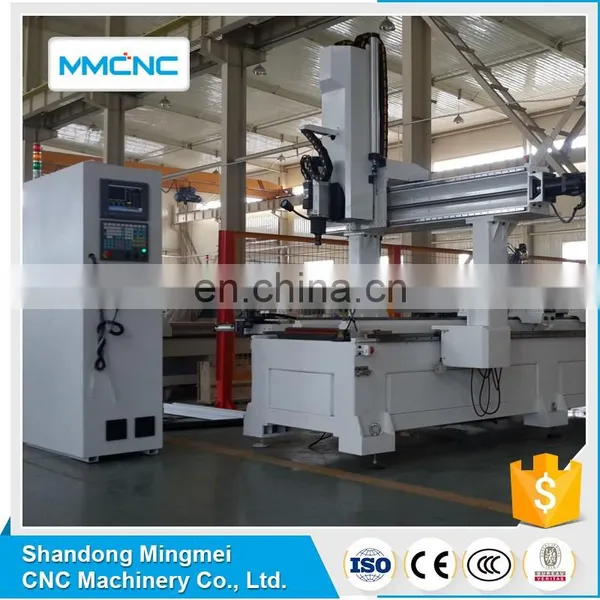

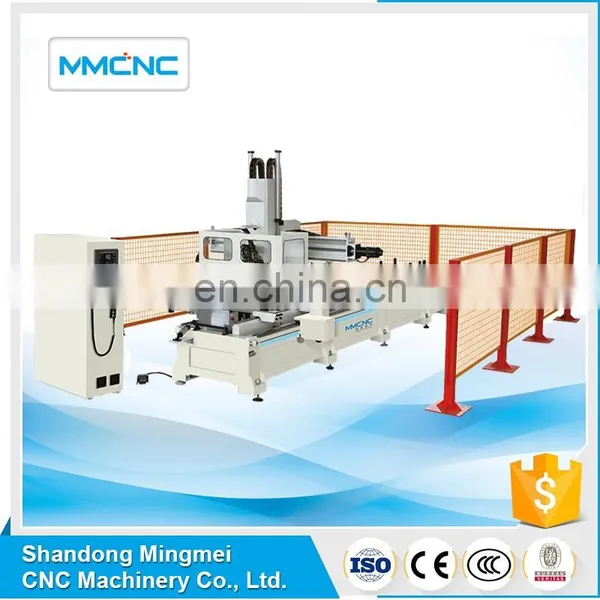

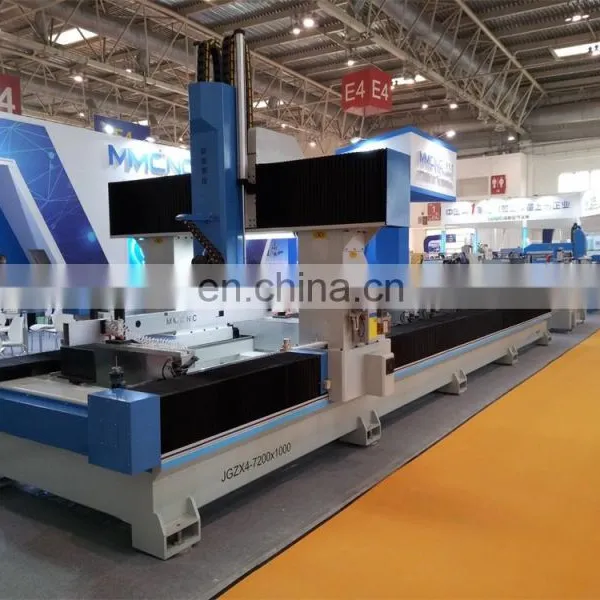

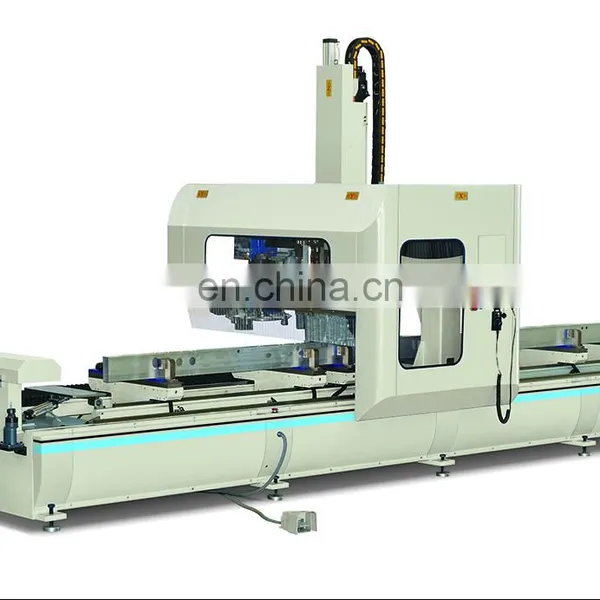

3.Detailed Photos

4. Drilling milling aluminum profile samples(tapping function optional)

5.Contact Demi for further info or other Aluminum Window Door Machine/Aluminum Curtain Wall Machine:
