NEW Gantry Type 5 Axis Drilling and Milling Machining Center

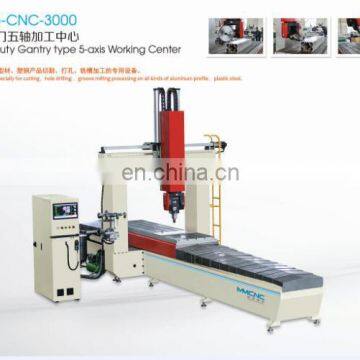

Gantry Type 5 Axis CNC Machining Center

LM5-CNC-5000

Equipment features

1. This machine is designed for mould making,ship,rail traffic,car buffer beam,photovoltaic,aluminum window door and curtain wall industry aluminum structure parts processing.It is also the ideal machine to suitable for high precision processing,complicated parts and mould making industry,aerospace project.

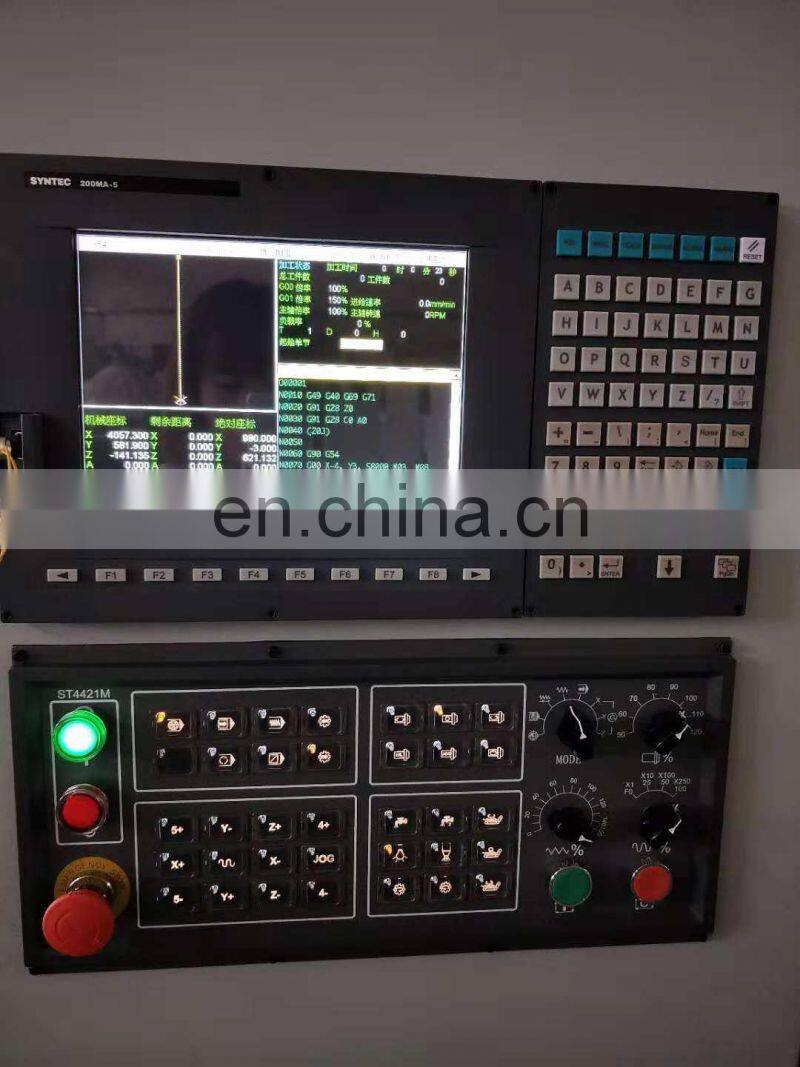

2. Adopt Taiwan SYNTEC 5 axis CNC control system with RTCP function,imported servo motor and driver,so can make sure the function of fast position and stable working.

3. The CNC system have file storage unit, can store more than ten thousands different program files. The operators is convenience to use them during production. The CNC system have the functions of fault detection, break point recovery, power failure recovery etc. The control system adopts a modular structure which facilitates the service and maintenance at the production site.

4. Adopt advanced CNC control system, the machine can meet various processing requirements,such as drilling, milling, rigid tapping and sawing.

5. Five-Axis spindle adopts Italy 12KW automatic tool change and tool aligning function. Realizing multi-faceted and multi-angle process on kinds of aluminium profile. With cutting function can realize precisely cutting at multifaceted and multi-angle.

6.  16 tools magazine, disc 8 tools and linear 8 tools,meeting the requirement of quick tool changing in different hole positions of profile processing.

7.  With spray cooling function, improve profile surface processing quality and extend tool life.

8.  The designed system software and post treatment, Can meet the requirement of high precision for different process, It is very easy to operate.

9.  It can achieve dual-zone working model,means one zone is working, at the same time another zone is load/upload parts. Machine can achieve alternating working.

10. Machine body frame was treated by overall heavy-duty welding, And it is satisfied with the standard of CNC Milling design,  overall machine was processed by the CNC Machining center after heat treatment. The machine gantry structure adopts overall welding. It have the advantages of high precision, stable structure and long user lift etc.

 Model Number

Power supply: 380v 50Hz

Working pressure:   0.6~0.8MPa

X Axis stroke:  5000mm

Y Axis stroke: 400mm

Z Axis stroke:600mm

X Axis speed:   50m/min

Y Axis speed:  30m/min

Z Axis speed: 30m/min

Tool magazine Quantity:    8+8 PCS

Tool Magazine Type:Disc type + Linear type

Tool Shank Type: HSK-F63

Max Saw Blade Dia:Ø250

Worktable size: 5000×650

Max Rotary Speed:18000/24000rpm

Power:  12 kw

Touque:  15.3N.m

Overall Dimension:  8500x3000x3000

Weight:  9000kg

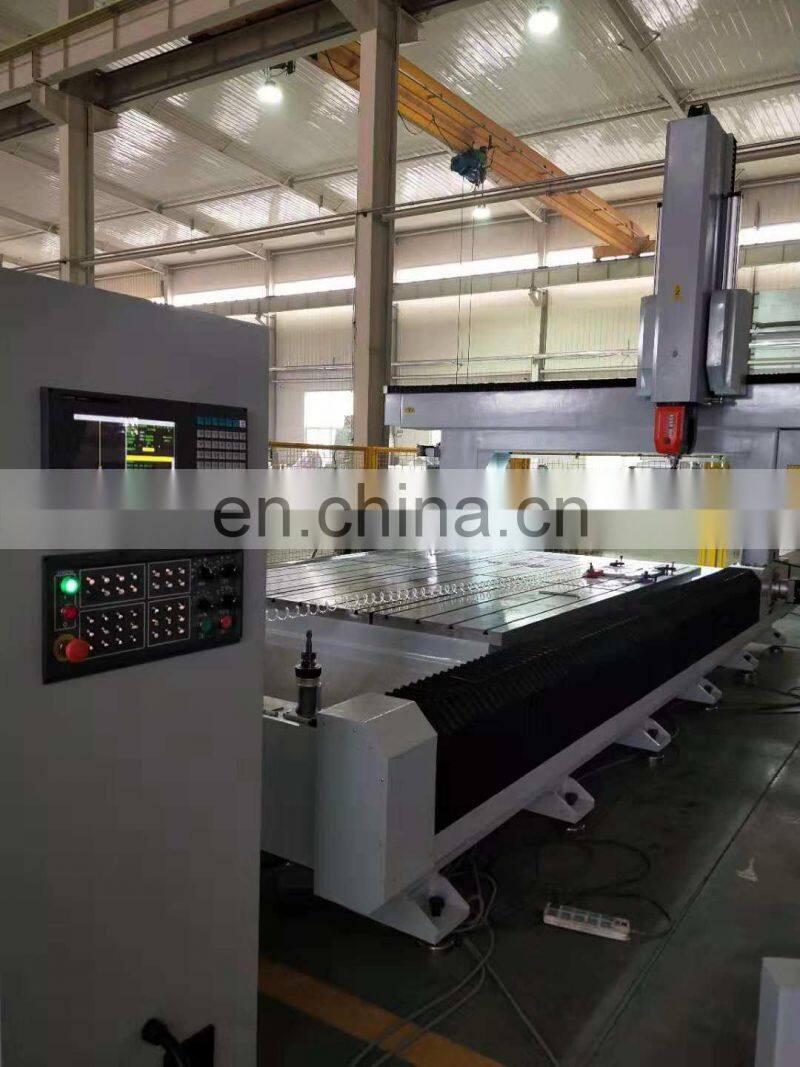

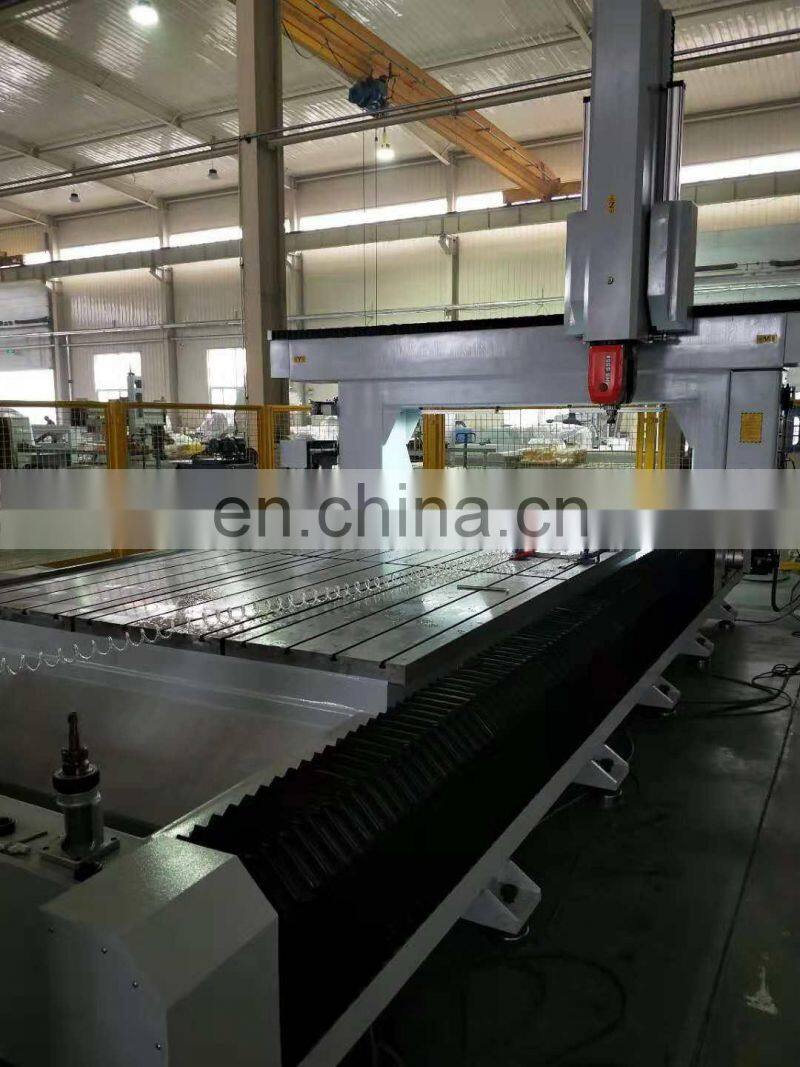

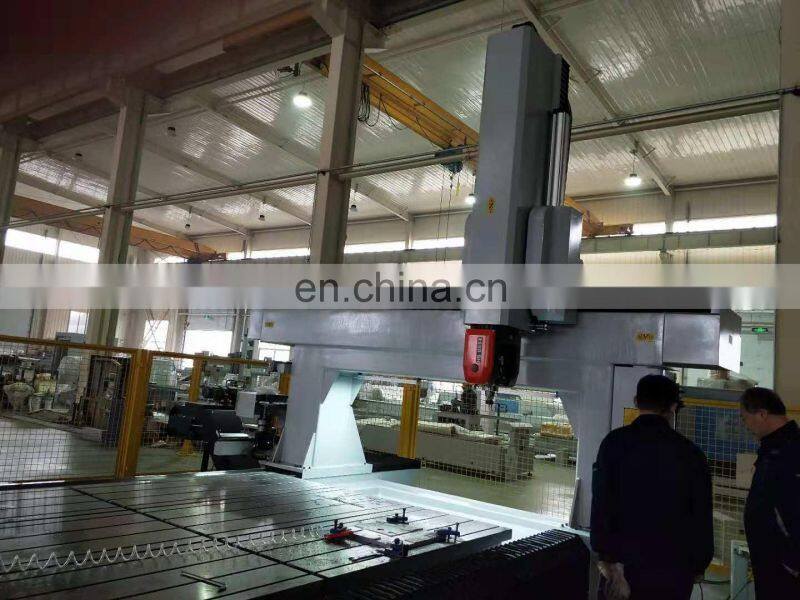

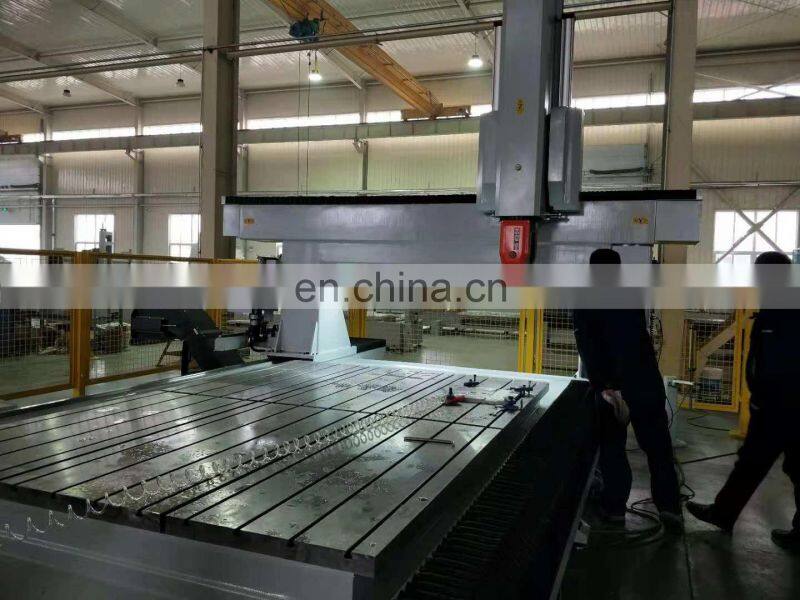

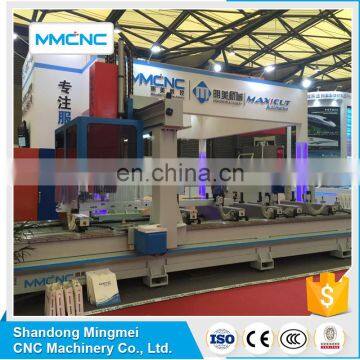

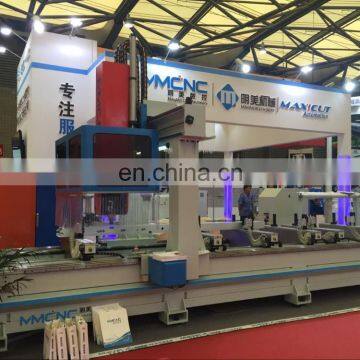

3.Machine on real shot

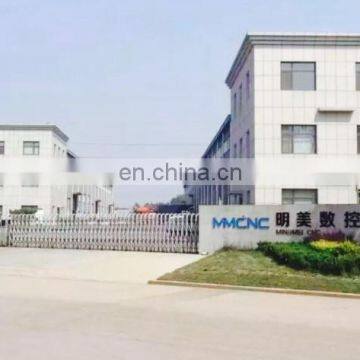

4.Company show

 Please contact me if necessary
