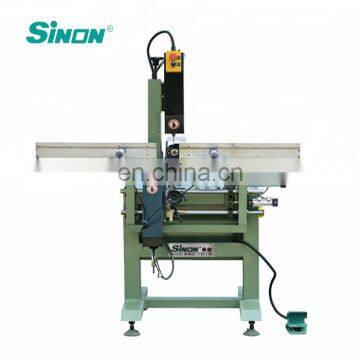

upvc two three axis automatic water slot milling machine
- 30 Set / Sets per Month
- qingdoao
- T/T Credit Card
You May Like
-
pvc upvc vinyl window and door frame making machine
-
made in china 4 head pvc window welding machine
-
2 Axes upvc corner cnc cleaning window machine
-
factory price portable upvc corner welding machine for windows and doors
-
upvc aluminium miter saw window and door making machine
-
four head adjustable angle machine for welding pvc window made in china
Product Details
| Brand Name | SINON |
Standard export packaging
Product Description
Features

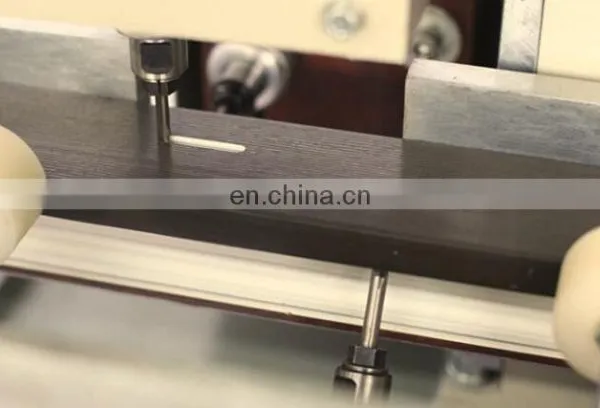

- Professional use in milling the water slot and the balanced holes of air pressure of win-door in PVC profile
- Adopt the modularization structure design, there are three milling heads which can be freely selected working in individually or combinatively, is easy to operate
- The adjustment up and down/front and back of No. 1 and 2 machine head via by the screw. The adjustment easy and convenience.
- The No. 3 machine head not only can adjust the angle, but also can moves left and right. It not only can process the water slot holes in 45 degree, but also can ensure the position of the water slot is symmetrical
- It can processing symmetrical water slots and air pressure holes at the two ends of one piece of profile via by 1#, 2# machine head work with 3# head combining working
Technical Parameter
Product Name | upvc two three axis automatic water slot milling machine |
Power supply | 380V 50HZ |
Total power for motor | 2.2KW |
Motor’s rotation speed | 25000r/min |
Air working pressure | 0.5-0.8MPa |
Diameter or milling cutter | Φ5*50mm/φ5*75mm |
Cutter feeding speed | 0-3m/min |
Max. milling depth | 30mm |
Milling Width | 4-5mm |
Milling length | 0-60mm |
Contour dimension(L*W*H) | 1900×900×1600mm |
Weight | 280kg |

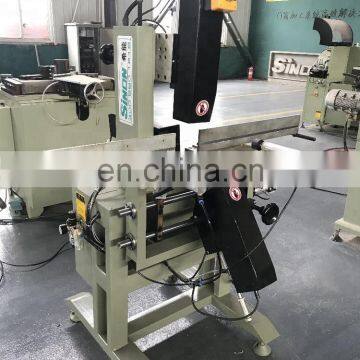

Details Photo
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
