Features

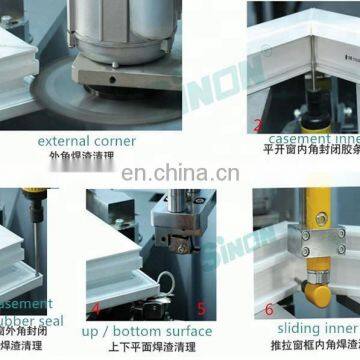

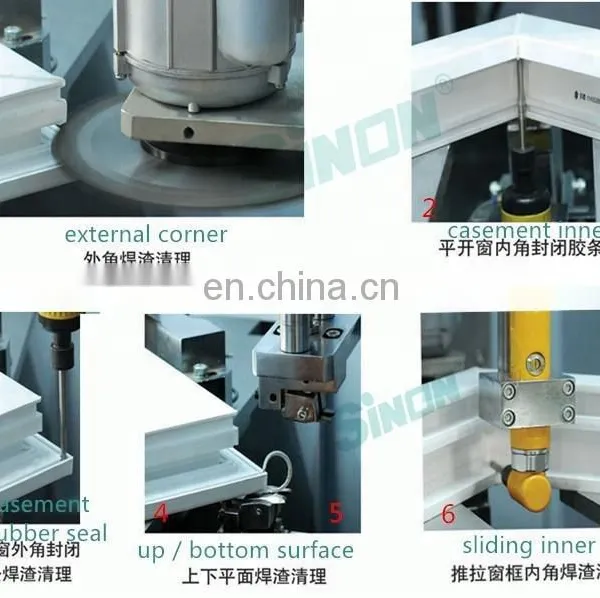

- It Special for cleaning all corner seams of the PVC window frames and sashes.
- Be equipped with the high efficiency servo system which can cleaning automatically for all the corner seams in quick speed
- Three-axis CNC cleaning the corner of processing flow controlling make the operation is easy
- To store many processing programs with different specifications of profile

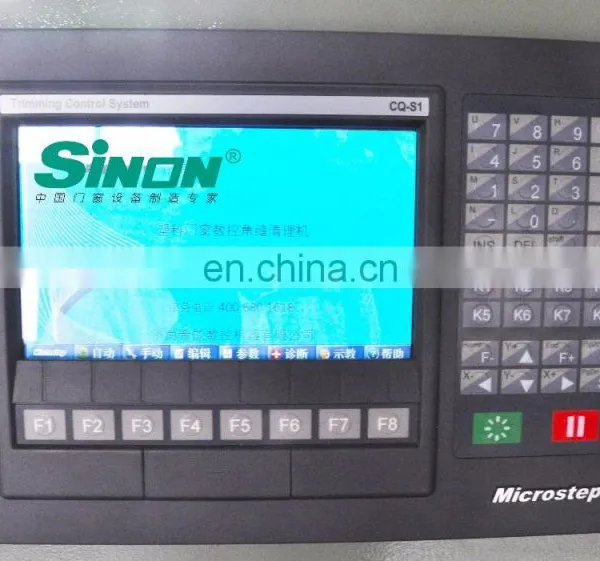

- It is simple, direct-viewing with the demonstrating program function, can set two-dimension processing programming by CNC controller
- Equipped with USB connection, may connect with external store
- It realize arc error compensation and diagonal compensation in the computer, it’s a kind of ideal machine to meet all kinds of requirement to make high quality window and door
- The value can be stochastic keyed, revised the processing program on the spot, so that make the welding seam error can be cleaned up efficiently
Technical Parameter

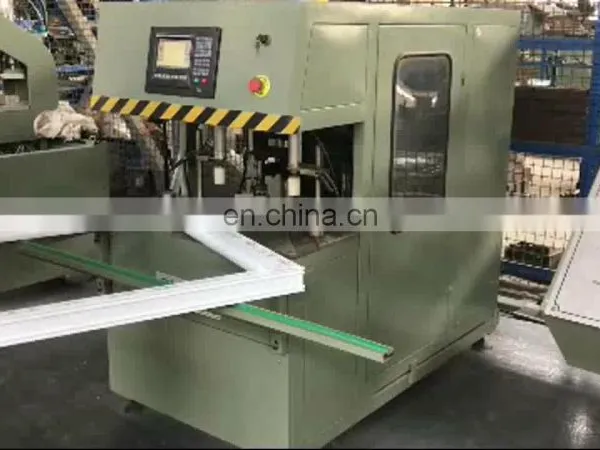

Product Name | 2 Axes upvc corner cnc cleaning window machine |
Power supply | 380V 50HZ |
Total power for motor | 2.0KW |
Motor’s rotation speed | 2800r/min |
Air working pressure | 0.5-0.8MPa |
Diameter or milling cutter | Φ230*Φ30mm |
Milling Width | 30-110mm |
Milling length | 30-120mm |
Contour dimension(L*W*H) | 970×1300×1200mm |
Weight | 500kg |
Optional Models
- Manual portable corner cleaning tools SQJ03-120
- Automatic corner cleaning machine SQJ01-120 (need mould)
- V corner cleaning machine SQJ05-120
- 6 knife CNC corner cleaning machine JQK04A-CNC-120

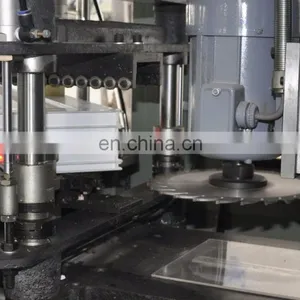

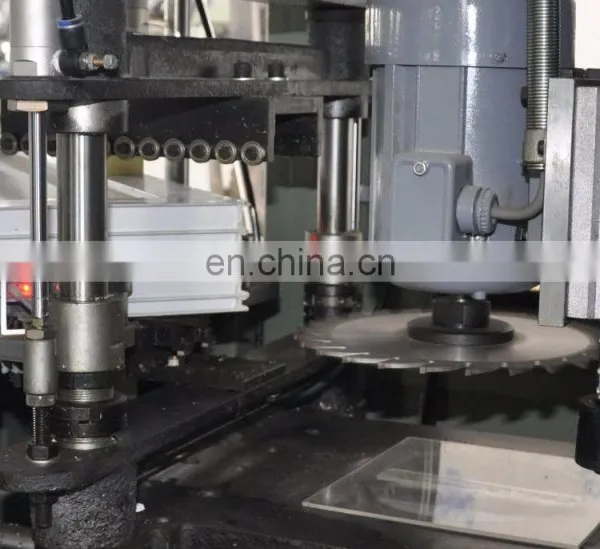

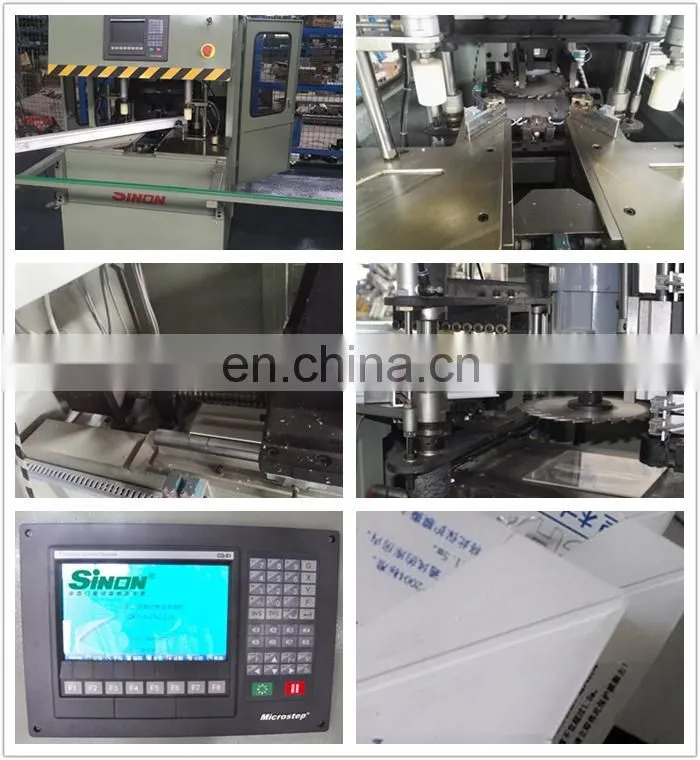

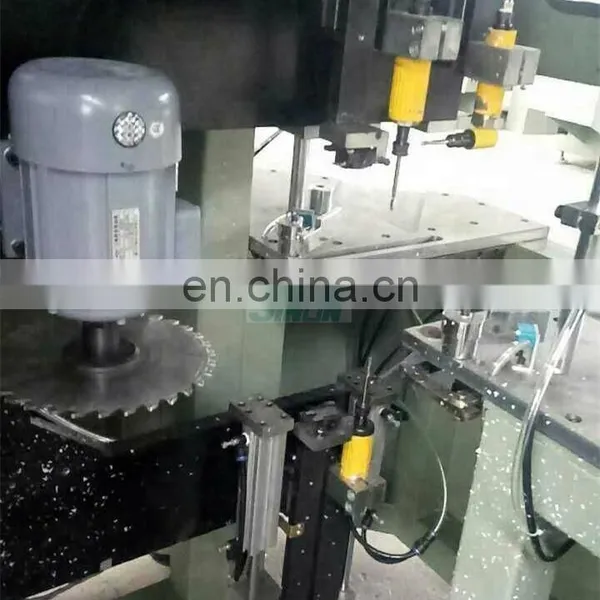

Details Photo
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
