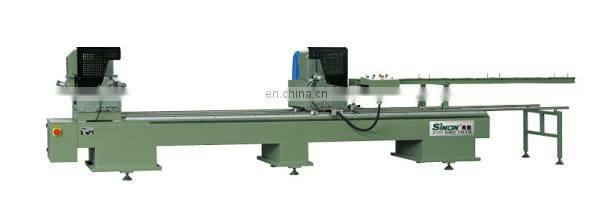

Factory Supply Two Heand Window Cutting Machine for Upvc Profiles

Factory Supply Two Heand Window Cutting Machine for Upvc Profiles photo-1

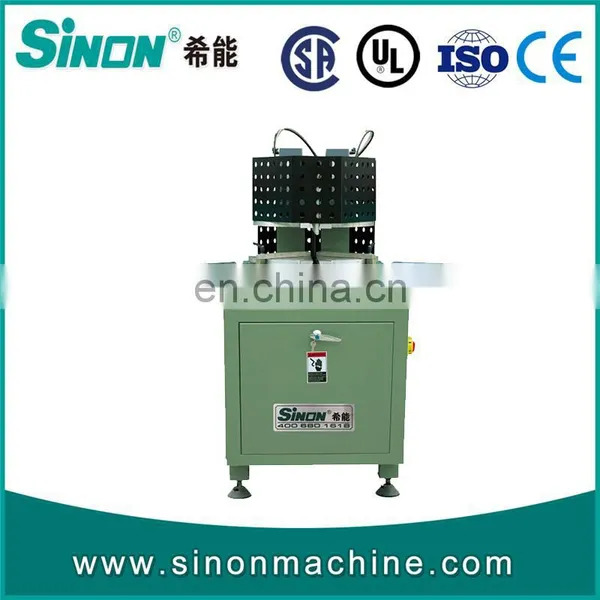

Factory Supply Two Heand Window Cutting Machine for Upvc Profiles photo-2
Factory Supply Two Heand Window Cutting Machine for Upvc Profiles photo-3

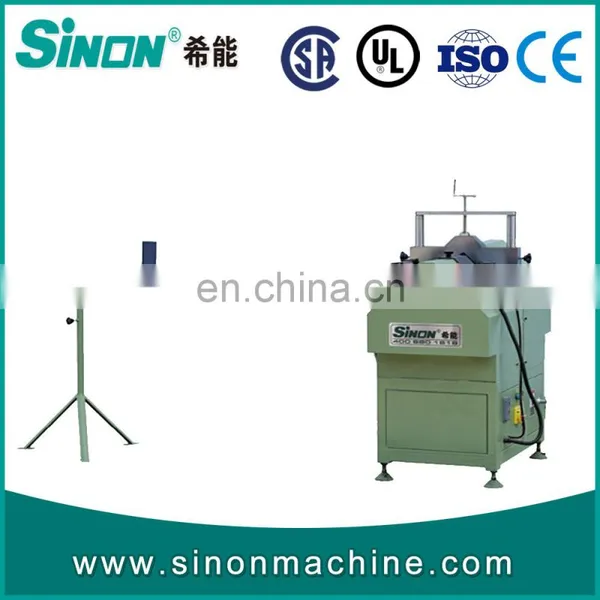

Factory Supply Two Heand Window Cutting Machine for Upvc Profiles photo-4

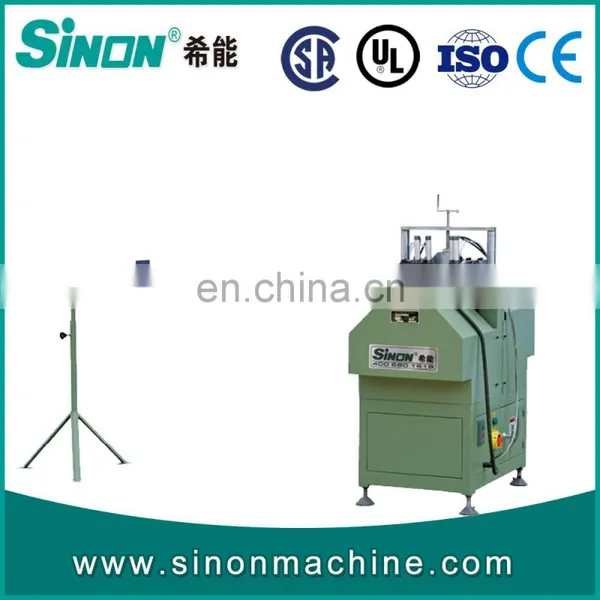

Factory Supply Two Heand Window Cutting Machine for Upvc Profiles photo-5

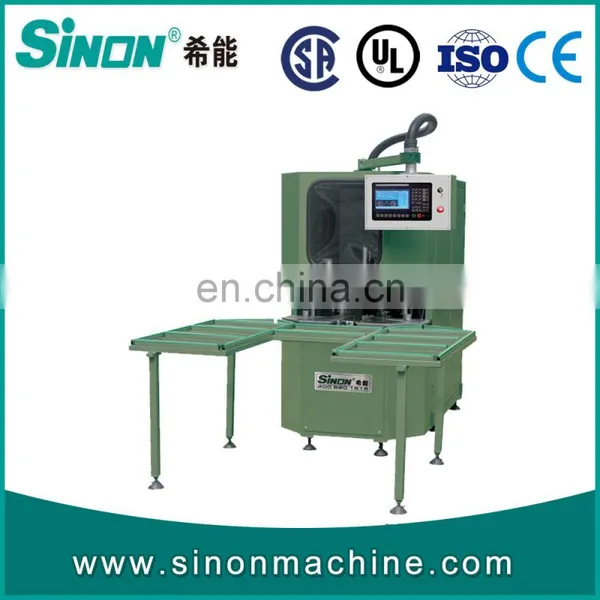

Factory Supply Two Heand Window Cutting Machine for Upvc Profiles photo-6
US$ 5,040 - 5,956 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SINON
Model Number:
SSJ07-450*3600
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdoao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SINON
Model Number SSJ07-450*3600





factory supply two heand window cutting machine for upvc profiles

factory supply two heand window cutting machine for upvc profiles

factory supply two heand window cutting machine for upvc profiles

Features:

  • 1. Suitable for cutting PVC and Aluminum profiles.
  • 2.  Angle range: 45°, 90° and any angle among 45°, 90°, angle automatic indexing.
  • 3.  Saw blade rotates smoothly due to high accurate main spindle Motor, steady running with high precision
  • 4.  For LSRJZ2-CNS-450×3600: Adapting digital displayer ruler to realize the digital displayer location as needed,
  • 5.  Cutting size displayer at the LED screen. Cutting size is accurate and intuitive.
  • 6.  With standard short size cutting device(manual). It's easy to cut small material, so that ensure cutting precision.
  • 7.  With dust collector to protect the health of operator.
  • 8.  Equipped with phase sequence protection device, so as to protect the machine once shut off or disconnect the phase.

Technical Specifications

Air Pressure:

0.5-0.8MPa

Air Consumption

50(L/min)

Input Voltage

3N-50Hz 380/220V or As Customer Specification

Input Power

4.5(Kw)

Saw Blade Diameter

Φ 450

Motor Rotary Speed

2800(r/min)

Cutting Height

1200(mm)

Cutting Width

120(mm)

Cutting Length

45° max 3700mm Min 550mm

90° max 3700mm Min 400mm

Overall Dimension:

4500mm*1170mm*1400mm

Weight:

1500(kg)
