Product Details
Brand Name | SINON | Model Number | SCX03-3*60 |
Standard wood packaging
Product Description

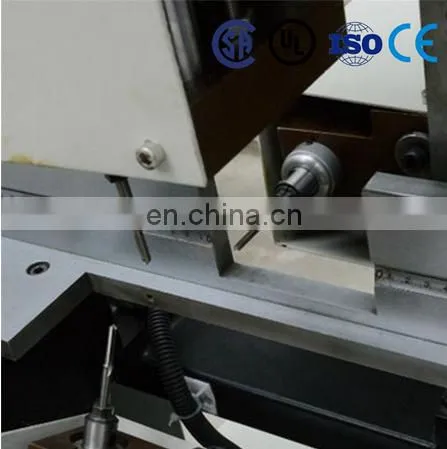

upvc window frame water slot milling machine for sale in China
Technical Specifications
Air Pressure: | 0.5-0.8MPa |
Air Consumption | 30(L/min) |
Input Voltage: | 220V 50Hz Customer specification |
Input Power: | 1.14kW |
Diameter of milling cutter | Φ4*50/75mm Φ5*50/75mm or Customer Specification |
Spindle Rotary Speed: | 26000(r/min) |
Slot Depth | 30(mm)(Max) |
Slot Length: | 30~60(mm) |
Overall Dimension: | 1950×860×1600(mm) |
Weight: | 280(kg) |
Features:

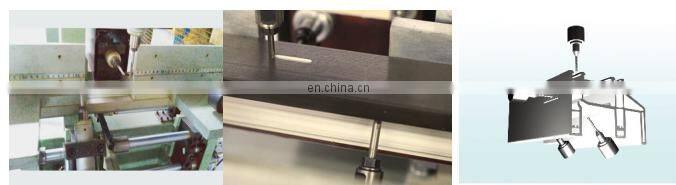

1.Professional use in milling the water slot and the balanced holes of air pressure of win-door in PVC profile.
2.Adopt the modularization structure design, there are three milling heads which can be freely selected working in individually or combinatively, is easy to operate.adopt high speed grinder made in Germany, with good milling effect.
3. The adjustment up and down/front and back of No. 1 and 2 machine head via by the screw. The adjustment easy and convenience.
4. The No. 3 machine head not only can adjust the angle, but also can moves left and right. It not only can process the water slot holes in 45 degree, but also can ensure the position of the water slot is symmetrical.
5. It can processing symmetrical water slots and air pressure holes at the two ends of one piece of profile via by 1#, 2# machine head work with 3# head combining working.
