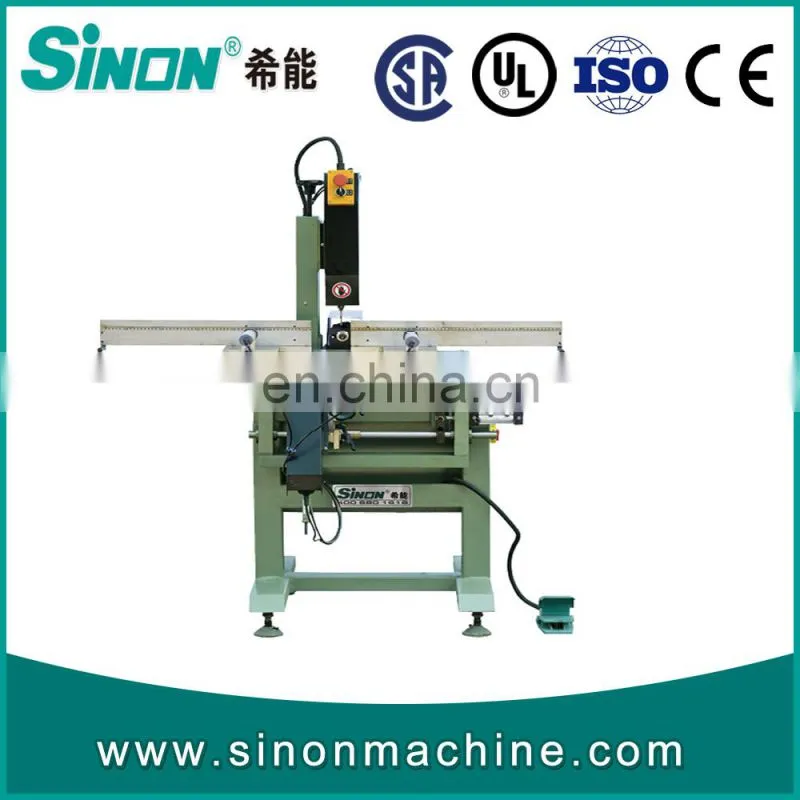

Shandong Automatic Water Slot Milling Machine/Water Slot Miller/UPVC Window Equipment
SCX03-3x60
- Main purpose and scope:

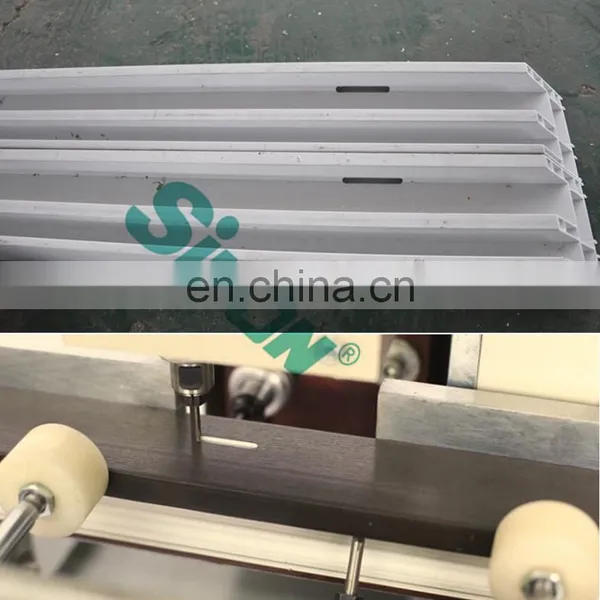

Shandong Automatic Water Slot Milling Machine/Water Slot Miller/UPVC Window Equipment is specially used milling the water slot and the balanced holes of air pressure of window door in PVC Profile.
- Features:
- Specially used milling the water slot and the balanced holes of air pressure of window door in PVC Profile.
- Adopt the modularization structure design,there are there milling heads which can be freely selected working in individually or combinatively,is easy to operate.
- The adjustment up and down/front and back of No.1 and 2 and 3 machine head via by the screw.The adjustment easy and convenience.
- The No.3 machine head not only can process the water slot holes in 45 degree,but also can ensure the position of the water slot is symmetrical.
- It can processing symmetrical water slots and air pressure holes at the two ends of one piece of profile via by 1#,2# machine head work with 3# head combining working.
- Optional:
- SCXZ2-60x120x3000 PVC Profile 2-head Auto Water-slot Milling Machine
- TECHNICAL PARAMETER
Power supply |
380V 50Hz |
Total power for motor |
2.2KW |
Air working pressure |
0.5~0.8Mpa |
Motor rotational speed |
25000r/min |
Diameter or milling cutter |
Φ5x50mm/Φ5x75mm |
Cutter feeding speed |
0~3m/min |
|
Max.milling depth |
30mm |
Milling Width |
4~5mm |
Milling lenght |
0~60mm |
General pressure of corner combining |
48KN |
Contour dimension(LxWxH) |
1900x900x1600mm |
Weight |
200kg |

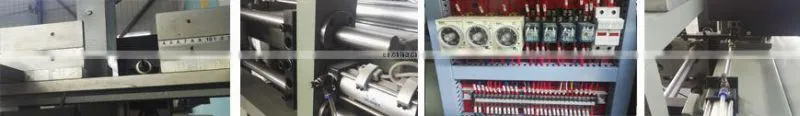

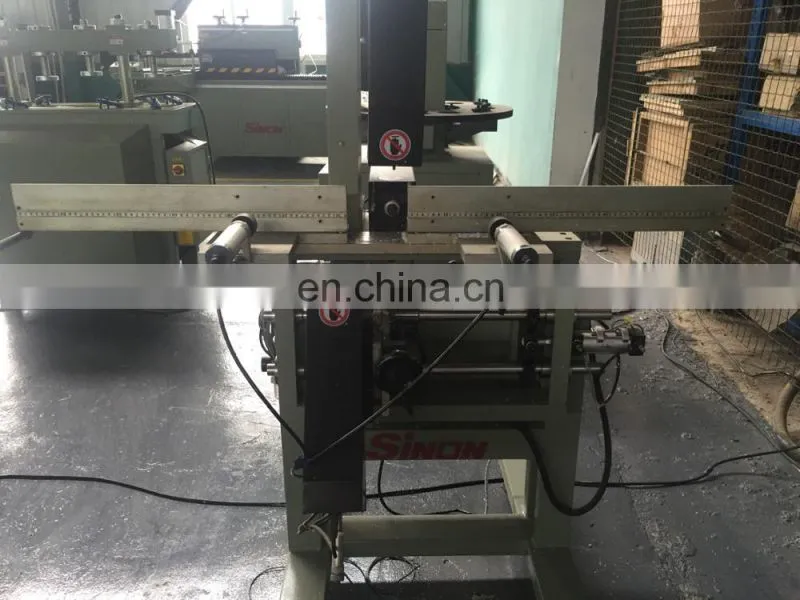

- Detail Display:
- Equipment Layout
1.LJ2C-CNC-500X4200 Double Head CNC Saw for Aluminum Profiles
2. LSFX-100 Copy router for aluminium profile (SX01-100)
3. DX05-200 End milling machine for aluminium profile
4. LYJ-75 Punching machine for aluminium window (LY6-50)
5. LZJ03-130 Corner crimping machine for aluminium window
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
The Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United Safety certification,the products are exported to Russia.Romania.the Czech republic,Australia,Britain,India and other 20 countries and regions .Export turnover accounted for the proportion of company in the future development direction,we warmly welcome all customers come to jinan,can come to sinon company to visit,negotiate and cooperate.
- Pre-sales service:
. Provide free domestic and foreign project analysis
. Free to provide domestic and foreign industry information
. Free design drawings for factory
. Free layout Plan for complete sets of equipment
. Free Factory electrical Road layout and site installation instructions
- Middle-sales Service:
. Free installation, commissioning equipment
. Free training ,operation and use
. Free training doors and windows production technology
. Free Training Plant Maintenance engineer
- After-sales Service:
. Equipment 12 months warranty, life-long maintenance, regular maintenance and maintenance
. Key areas provide 24-hour instant service
. Provide timely and fast spare parts supply to domestic and abroad
. Provide online "outpatient" to solve technical problems for customers
FAQ
-
Q1: Are you trading company or manufacturer ?
A1: We are factory . We are a leader in aluminum window machine manufacturing for 20 years in China. -
Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. -
Q3: How does your factory do regarding quality control?
A3:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out. -
Q4. What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment. -
Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Deposit must be TT ,balance could accept 100% irrevocable L/C at sight . -
Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need. Q7: If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner crimping machine
6).Punching machine-
Q8:If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2).Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V cutting machine / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
